Underfloor coating for BMW 3 Series G80 M3 LCI M3 (2025)

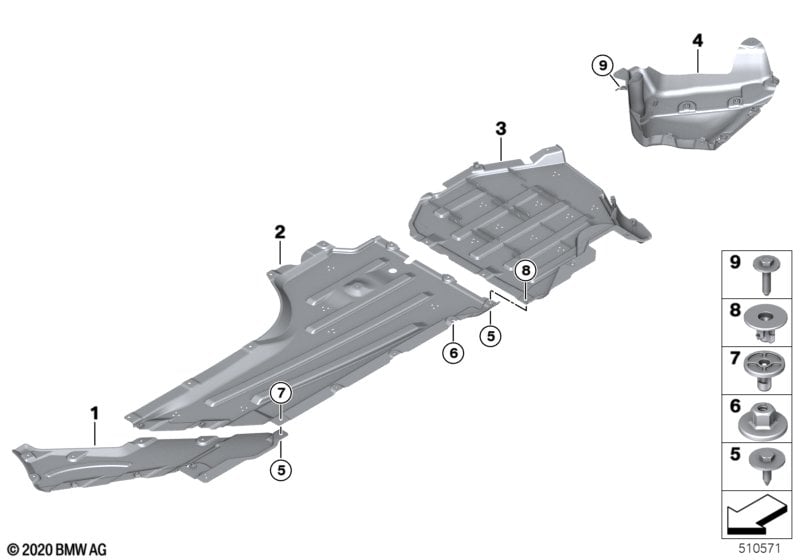

This Underfloor coating technical drawing provides a detailed breakdown of the assembly for the 3 Series G80 M3 LCI M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Underbody paneling, strut, front left | 1 | 51758080539 | NoS | Shop at ECS Tuning | |||||
| 01 | Underbody paneling, strut, front right | 1 | 51758080540 | NoS | Shop at ECS Tuning | |||||
| 02 | Underbody panelling, side on left | 1 | 51758074617 | NoS | Shop at ECS Tuning | |||||
| 02 | Underbody panelling, side on right | 1 | 51758074618 | NoS | Shop at ECS Tuning | |||||
| 03 | Undershield for tank, left | 1 | 51758074609 | NoS | Shop at ECS Tuning | |||||
| 03 | Undershield for tank, right | 1 | 51758074610 | NoS | Shop at ECS Tuning | |||||
| 04 | Underbody panelling, rear right | 1 | 51757340868 | NoS | Shop at ECS Tuning | |||||
| ATTENTION! Part number 7340867 is replaced by part number 9477342. When using part number 9477342, the part number 9477345 (heat insulation rear muffler left) must also be ordered. |
||||||||||
| 04 | Underbody panelling, rear left | 1 | 51759477342 | NoS | Shop at ECS Tuning | |||||
| 05 | Hex bolt | TS5X20SW10 D=22 | X | 01/2021 | 07149481168 | Shop at ECS Tuning | ||||
| 06 | Plastic capnut with washer | D=22MM | X | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | L= 19.9MM | X | 07147306224 | Shop at ECS Tuning | |||||
| 08 | Expanding nut | 11 X 11 MM | X | 07148084789 | NoS | Shop at ECS Tuning | ||||
| 09 | Hexagon screw for plastic | X | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
