Air ducts for BMW 5 Series G30 LCI 520d (2023)

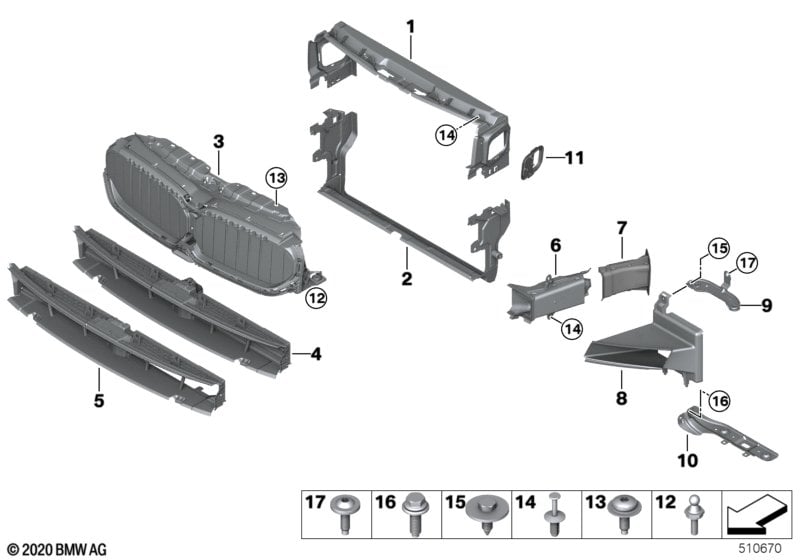

This Air ducts technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air duct, radiator, top | 1 | 51747383845 | Shop at ECS Tuning | ||||||
| 02 | Air duct, radiator, bottom | 1 | 51747383846 | Shop at ECS Tuning | ||||||
| 03 | Air flaps, upper | 1 | 11/2020 | 51745A218F3 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package |
S1CBA=Yes |
|||||||||
| 04 | Air flaps, lower | 1 | 11/2020 | 51745A218F6 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package |
S1CBA=No |
|||||||||
| 05 | Air duct, bottom | 1 | 51749464209 | Shop at ECS Tuning | ||||||
| 06 | Air duct, brake, left | 1 | 51747383851 | Shop at ECS Tuning | ||||||
| 06 | Air duct, brake, right | 1 | 51747383852 | Shop at ECS Tuning | ||||||
| 07 | Air duct, brake, wheelhousing, left | 1 | 51747394665 | Shop at ECS Tuning | ||||||
| 07 | Air duct, brake, wheelhousing, right | 1 | 51747394666 | Shop at ECS Tuning | ||||||
| For vehicles with Auxiliary heating |
S536A=Yes |
|||||||||
| 10 | Bracket, aux. radiator, lower left | 1 | 51647357221 | Shop at ECS Tuning | ||||||
| 11 | Cover lid | 2 | 51747367766 | Shop at ECS Tuning | ||||||
| 12 | Adjustment element | 2 | 51137416456 | Shop at ECS Tuning | ||||||
| 13 | Oval-head screw with spring washer | M6X20 | 4 | 09/2022 | 07145A48F72 | Shop at ECS Tuning | ||||
| 14 | Expanding rivet | D = 6MM | 10 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | TS5X20 SW8 D=22 | 4 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X20-PC-ZNS3 | 2 | 51649907859 | Shop at ECS Tuning | |||||
