Trim panel A-column/Int.windshield panel for BMW 4 Series G23 Convertible 420i (2024)

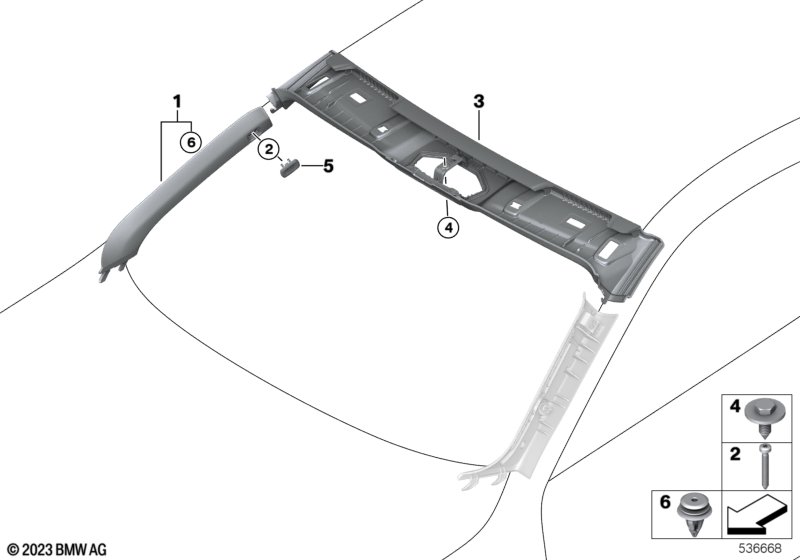

This Trim panel A-column/Int.windshield panel technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left column A cover | SCHWARZ | 1 | 51437490351 | NoS | Shop at ECS Tuning | ||||
| 01 | Right column A cover | SCHWARZ | 1 | 51437490352 | NoS | Shop at ECS Tuning | ||||
| 02 | Sheet metal screw | ST4,8X38-R-ZNFE | 2 | 07119905199 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936646 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=No S5ASA=No S5AUA=No S5AVA=No S5DFA=No |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936644 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=Yes S5ASA=Yes S5AUA=No S5AVA=Yes S5DFA=Yes |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=Yes S5ASA=Yes S5AUA=No S5AVA=Yes S5DFA=No |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=Yes S5ASA=Yes S5AUA=No S5AVA=No S5DFA=Yes |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=Yes S5ASA=Yes S5AUA=No S5AVA=No S5DFA=No |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=Yes S5ASA=No S5AUA=No S5AVA=Yes S5DFA=Yes |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=Yes S5ASA=No S5AUA=No S5AVA=Yes S5DFA=No |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=Yes S5ASA=No S5AUA=No S5AVA=No S5DFA=Yes |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=Yes S5ASA=No S5AUA=No S5AVA=No S5DFA=No |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=No S5ASA=Yes S5AUA=No S5AVA=Yes S5DFA=Yes |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=No S5ASA=Yes S5AUA=No S5AVA=Yes S5DFA=No |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=No S5ASA=Yes S5AUA=No S5AVA=No S5DFA=Yes |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=No S5ASA=Yes S5AUA=No S5AVA=No S5DFA=No |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=No S5ASA=No S5AUA=No S5AVA=Yes S5DFA=Yes |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=No S5ASA=No S5AUA=No S5AVA=Yes S5DFA=No |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional and Active Guard and Active cruise control+Stop&Go function |
S5AQA=No S5ASA=No S5AUA=No S5AVA=No S5DFA=Yes |
|||||||||
| 03 | Cover, windscreen panel, top | 1 | 51467936645 | NoS | Shop at ECS Tuning | |||||
| 04 | Sheet metal screw with washer | ST4,8X16-ZNS3 | 1 | 07147271012 | Shop at ECS Tuning | |||||
| For vehicles with Phoning with wireless charging and Phoning with wireless charging |
S6NVA=No S6NWA=No |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 1 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Storage tray for wireless charging and Personal eSIM |
S6NSA=No S6NXA=No S6PAA=No |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 1 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Phoning with wireless charging and Phoning with wireless charging |
S6NSA=Yes S6NVA=Yes S6NWA=Yes |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 2 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Phoning with wireless charging and Phoning with wireless charging |
S6NSA=Yes S6NVA=Yes S6NWA=No |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 2 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Phoning with wireless charging and Phoning with wireless charging |
S6NSA=Yes S6NVA=No S6NWA=Yes |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 2 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Phoning with wireless charging and Phoning with wireless charging |
S6NSA=Yes S6NVA=No S6NWA=No |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 2 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Phoning with wireless charging and Phoning with wireless charging |
S6NSA=No S6NVA=Yes S6NWA=Yes |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 2 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Phoning with wireless charging and Phoning with wireless charging |
S6NSA=No S6NVA=Yes S6NWA=No |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 2 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Phoning with wireless charging and Phoning with wireless charging |
S6NSA=No S6NVA=No S6NWA=Yes |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 2 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Storage tray for wireless charging and Personal eSIM |
S6NSA=Yes S6NXA=Yes S6PAA=Yes |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 2 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Storage tray for wireless charging and Personal eSIM |
S6NSA=Yes S6NXA=Yes S6PAA=No |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 2 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Storage tray for wireless charging and Personal eSIM |
S6NSA=Yes S6NXA=No S6PAA=Yes |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 2 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Storage tray for wireless charging and Personal eSIM |
S6NSA=Yes S6NXA=No S6PAA=No |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 2 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Storage tray for wireless charging and Personal eSIM |
S6NSA=No S6NXA=Yes S6PAA=Yes |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 2 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Storage tray for wireless charging and Personal eSIM |
S6NSA=No S6NXA=Yes S6PAA=No |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 2 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Storage tray for wireless charging and Personal eSIM |
S6NSA=No S6NXA=No S6PAA=Yes |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 2 | 51437481766 | Shop at ECS Tuning | |||||
| For vehicles with Convenience phone, expanded Smartphone and Phoning with wireless charging and Phoning with wireless charging |
S6NSA=No S6NVA=No S6NWA=No |
|||||||||
| 05 | Cover, microphone | SCHWARZ | 1 | 51437481766 | NoS | Shop at ECS Tuning | ||||
| 06 | Clip blue | 2 | 07147129317 | $0.66 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G23 Convertible 420i Trim panel A-column/Int.windshield panel?
- This technical diagram illustrates the Trim panel A-column/Int.windshield panel within the Vehicle trim group for the 4 Series G23 Convertible 420i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Left column A cover (Part #51437490351).
- Which models use the hardware listed in this Trim panel A-column/Int.windshield panel?
- The hardware and components featured in the Trim panel A-column/Int.windshield panel are specific to the 4 Series G23 Convertible 420i produced during 2024. These technical specifications ensure that parts like the Left column A cover (51437490351) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim panel A-column/Int.windshield panel assembly?
- Each item in the Trim panel A-column/Int.windshield panel corresponds to the numbered list below the illustration. For the 4 Series G23 Convertible 420i, you can identify the Left column A cover by locating its position on the schematic, which then links to the official BMW part number 51437490351 for the Vehicle trim section.
