Rollover protection system for BMW 4 Series G23 Convertible 420i (2024)

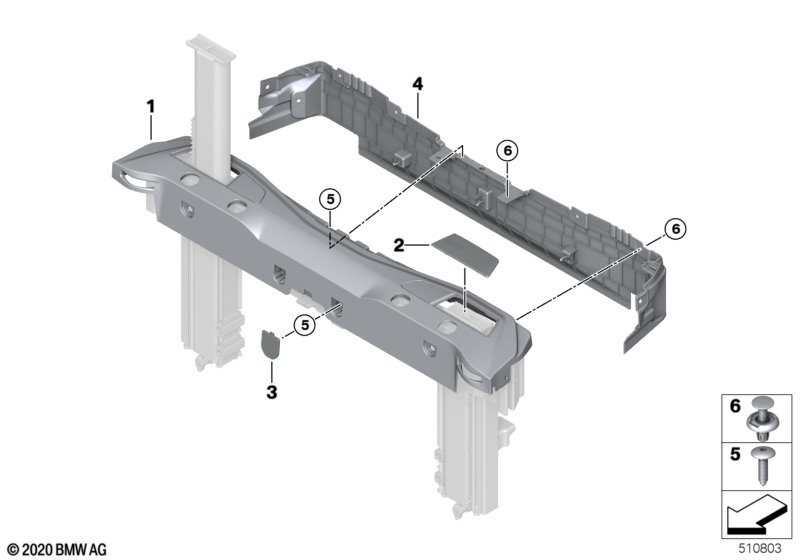

This Rollover protection system technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover for trim grill | SCHWARZ | 1 | 51469479474 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/mocca decor.stitching |
MAMU=Yes |
|||||||||
| 01 | Cover for trim grill | MOKKA | 1 | 51469479472 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 01 | Cover for trim grill | OYSTER | 1 | 51469479469 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Tacora red or Leather Vernasca/tacora red dec.stitch. |
KHG7=Yes MAG6=Yes |
|||||||||
| 01 | Cover for trim grill | TACORAROT | 1 | 51469479471 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac, extended or Leather, Vernasca, cognac, gy stitching |
KHKC=Yes MAPQ=Yes |
|||||||||
| 01 | Cover for trim grill | COGNAC | 1 | 51469479473 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/canberra-beige or Sensatec/canberra-beige or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Leath.Vernasca/Canberra beige de.stitch. or Leath.Vernasca/Canberra beige de.stitch. |
KCCY=Yes KCFY=Yes KHFR=Yes KHFS=Yes MAFO=Yes MAFX=Yes |
|||||||||
| 01 | Cover for trim grill | CANBERRABEIGE | 1 | 51469479470 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover for rollover protection bar, left | SCHWARZ | 1 | 51469498075 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover for rollover protection bar, right | SCHWARZ | 1 | 51469498076 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/mocca decor.stitching |
MAMU=Yes |
|||||||||
| 02 | Cover for rollover protection bar, left | MOKKA | 1 | 51469498071 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover for rollover protection bar, right | MOKKA | 1 | 51469498072 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 02 | Cover for rollover protection bar, left | OYSTER | 1 | 51469479489 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover for rollover protection bar, right | OYSTER | 1 | 51469479490 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Tacora red or Leather Vernasca/tacora red dec.stitch. |
KHG7=Yes MAG6=Yes |
|||||||||
| 02 | Cover for rollover protection bar, left | TACORAROT | 1 | 51469498069 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover for rollover protection bar, right | TACORAROT | 1 | 51469498070 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac, extended or Leather, Vernasca, cognac, gy stitching |
KHKC=Yes MAPQ=Yes |
|||||||||
| 02 | Cover for rollover protection bar, left | COGNAC | 1 | 51469498073 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover for rollover protection bar, right | COGNAC | 1 | 51469498074 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/canberra-beige or Sensatec/canberra-beige or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Leath.Vernasca/Canberra beige de.stitch. or Leath.Vernasca/Canberra beige de.stitch. |
KCCY=Yes KCFY=Yes KHFR=Yes KHFS=Yes MAFO=Yes MAFX=Yes |
|||||||||
| 02 | Cover for rollover protection bar, left | CANBERRABEIGE | 1 | 51469479491 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover for rollover protection bar, right | CANBERRABEIGE | 1 | 51469479492 | NoS | Shop at ECS Tuning | ||||
| 03 | Covering cap | SCHWARZ | 2 | 51469474804 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/mocca decor.stitching |
MAMU=Yes |
|||||||||
| 03 | Covering cap | MOKKA | 2 | 51469474802 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 03 | Covering cap | OYSTER | 2 | 51469474799 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Tacora red or Leather Vernasca/tacora red dec.stitch. |
KHG7=Yes MAG6=Yes |
|||||||||
| 03 | Covering cap | TACORAROT | 2 | 51469474801 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac, extended or Leather, Vernasca, cognac, gy stitching |
KHKC=Yes MAPQ=Yes |
|||||||||
| 03 | Covering cap | COGNAC | 2 | 51469474803 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/canberra-beige or Sensatec/canberra-beige or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Leath.Vernasca/Canberra beige de.stitch. or Leath.Vernasca/Canberra beige de.stitch. |
KCCY=Yes KCFY=Yes KHFR=Yes KHFS=Yes MAFO=Yes MAFX=Yes |
|||||||||
| 03 | Covering cap | CANBERRABEIGE | 2 | 51469474800 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim for rollover bar, top | SCHWARZ | 1 | 51469479468 | NoS | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M5X18 | 4 | 07147238657 | Shop at ECS Tuning | |||||
| 06 | Expanding rivet | 10 | 07147401727 | Shop at ECS Tuning | ||||||
