Underfloor coating for BMW 4 Series G26 Gran Coupé 420i (2024)

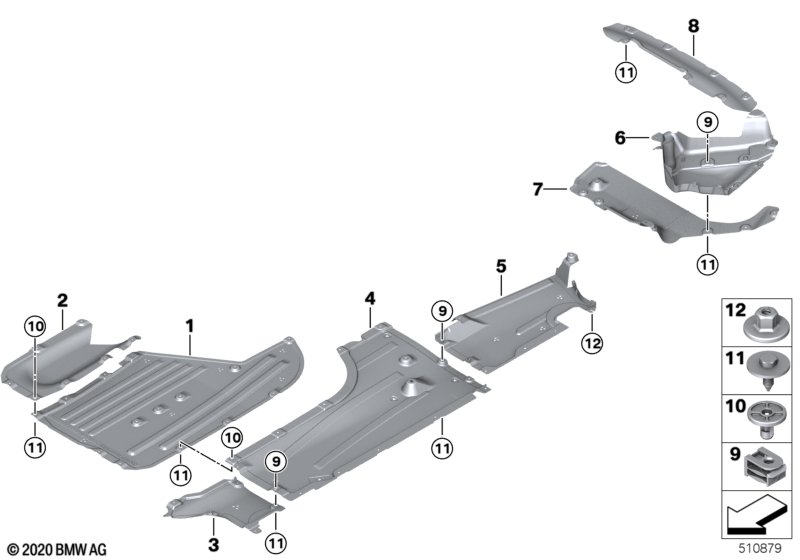

This Underfloor coating technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Underfloor coating center | RWD | 1 | 51757340860 | Shop at ECS Tuning | |||||
| 03 | Underbody paneling, strut, front left | 1 | 51719854303 | NoS | Shop at ECS Tuning | |||||
| 03 | Underbody paneling, strut, front right | 1 | 51719854304 | NoS | Shop at ECS Tuning | |||||
| 04 | Underbody panelling, side on left | 1 | 51758738039 | NoS | Shop at ECS Tuning | |||||
| 04 | Underbody panelling, side on right | 1 | 51758738040 | NoS | Shop at ECS Tuning | |||||
| 05 | Undershield for tank, left | 1 | 51758738041 | NoS | Shop at ECS Tuning | |||||
| 05 | Undershield for tank, right | 1 | 51758738042 | NoS | Shop at ECS Tuning | |||||
| 06 | Underbody panelling, rear right | 1 | 51757340868 | NoS | Shop at ECS Tuning | |||||
| ATTENTION! Part number 7340867 is replaced by part number 9477342. When using part number 9477342, the part number 9477345 (heat insulation rear muffler left) must also be ordered. |
||||||||||
| 06 | Underbody panelling, rear left | 1 | 51759477342 | NoS | Shop at ECS Tuning | |||||
| 08 | Underbody paneling, rear center | 1 | 51759880616 | NoS | Shop at ECS Tuning | |||||
| 09 | C-clip for plastic nut | TS5 | X | 07147311312 | Shop at ECS Tuning | |||||
| 10 | Expanding nut | L= 19.9MM | X | 07147306224 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | TS5X20SW10 D=22 | X | 07149481168 | Shop at ECS Tuning | |||||
| 12 | Plastic capnut with washer | D=22MM | X | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
