Exterior trim / grill for BMW 5 Series G38 LCI 530Li (2023)

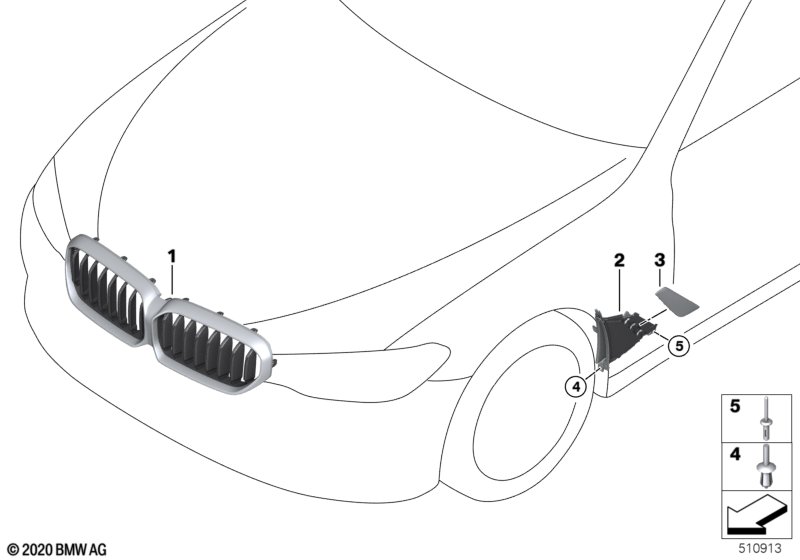

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 5 Series G38 LCI 530Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China and Parking assistance system Plus and M Aerodynamics package |
L8AAA=No S5DNA=Yes S715A=No |
|||||||||
| 01 | Grill front | LUXURY / ICAM | 1 | 51139464219 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Parking assistance system Plus and M Aerodynamics package |
L8AAA=No S5DNA=Yes S715A=Yes |
|||||||||
| 01 | Grill front | M / ICAM | 1 | 51129852284 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Parking assistance system Plus and M Aerodynamics package |
L8AAA=Yes S5DNA=No S715A=No |
|||||||||
| 01 | Grill front | LUXURY | 1 | 51139464218 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Parking assistance system Plus and M Aerodynamics package |
L8AAA=No S5DNA=No S715A=No |
|||||||||
| 01 | Grill front | LUXURY | 1 | 51139464218 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Parking assistance system Plus and M Aerodynamics package |
L8AAA=No S5DNA=No S715A=Yes |
|||||||||
| 01 | Grill front | M | 1 | 51129852283 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Parking assistance system Plus and M Aerodynamics package |
L8AAA=Yes S5DNA=Yes S715A=Yes |
|||||||||
| 01 | Grill front | M / ICAM | 1 | 51129852284 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Parking assistance system Plus and M Aerodynamics package |
L8AAA=Yes S5DNA=No S715A=Yes |
|||||||||
| 01 | Grill front | M | 1 | 51129852283 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Parking assistance system Plus and M Aerodynamics package |
L8AAA=Yes S5DNA=Yes S715A=No |
|||||||||
| 01 | Grill front | LUXURY / ICAM | 1 | 51139464219 | Shop at ECS Tuning | |||||
| 02 | Air duct, sidewall, inner left | 1 | 51137349591 | Shop at ECS Tuning | ||||||
| 02 | Air duct, sidewall, inner right | 1 | 51137349592 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 03 | Trim, air duct, sidewall, left | CHROM | 1 | 51137349593 | Shop at ECS Tuning | |||||
| 03 | Trim, air duct, sidewall, right | CHROM | 1 | 51137349594 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and High gloss shadow line |
S715A=Yes S760A=Yes |
|||||||||
| 03 | Trim, air duct, sidewall, left | GLANZSCHWARZ | 1 | 51747439013 | Shop at ECS Tuning | |||||
| 03 | Trim, air duct, sidewall, right | GLANZSCHWARZ | 1 | 51747439014 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | L = 11MM | 4 | 07149807127 | Shop at ECS Tuning | |||||
| 05 | Blind compression rivet | 4 | 07147378241 | Shop at ECS Tuning | ||||||
