Air ducts for BMW 4 Series G22 Coupé M440i (2024)

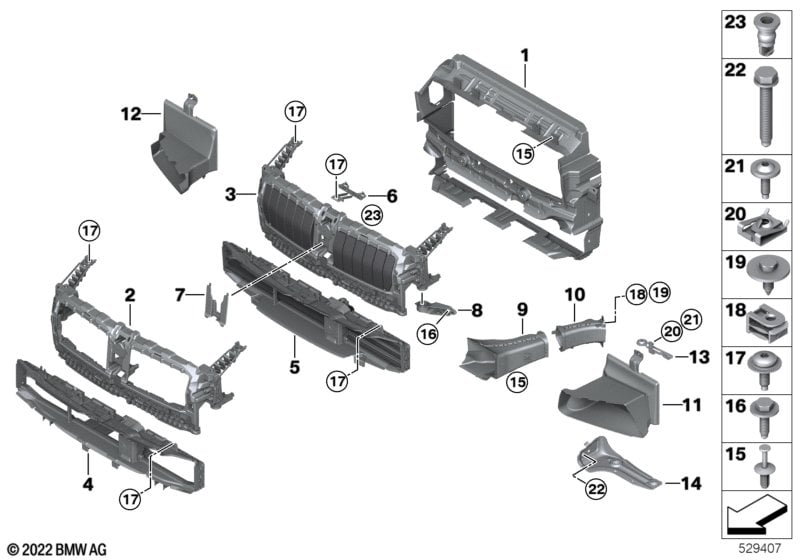

This Air ducts technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé M440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air duct, radiator | 6ZYL | 1 | 06/2021 | 51745A32055 | Shop at ECS Tuning | ||||
| 03 | Air duct with air flap control, upper | 1 | 51745A1E914 | Shop at ECS Tuning | ||||||
| 05 | Air duct with air flap control, lower | M | 1 | 51745A1E916 | Shop at ECS Tuning | |||||
| 06 | Support, top | 1 | 51749851178 | Shop at ECS Tuning | ||||||
| 07 | Covering center | 1 | 51749854484 | Shop at ECS Tuning | ||||||
| 08 | Bracket, air duct, left | 1 | 51647434061 | Shop at ECS Tuning | ||||||
| 08 | Bracket, air duct, right | 1 | 51647434062 | Shop at ECS Tuning | ||||||
| 09 | Front left brake air duct | 1 | 51745A32061 | Shop at ECS Tuning | ||||||
| 09 | Front right brake air duct | 1 | 51745A32062 | Shop at ECS Tuning | ||||||
| 10 | Air duct, brake, wheelhousing, left | 1 | 51745A32063 | Shop at ECS Tuning | ||||||
| 10 | Air duct, brake, wheelhousing, right | 1 | 51745A32064 | Shop at ECS Tuning | ||||||
| For vehicles with Motorsport engineering package |
S33TA=Yes |
|||||||||
| 11 | Air duct, exterior radiator, left | RACETRACK | 1 | 51745A32057 | Shop at ECS Tuning | |||||
| For vehicles with Motorsport engineering package and Hot-climate version |
S33TA=Yes S823A=Yes |
|||||||||
| 12 | Air duct, exterior radiator, right | RACETRACK | 1 | 51745A32058 | Shop at ECS Tuning | |||||
| For vehicles with Motorsport engineering package |
S33TA=Yes |
|||||||||
| 13 | Bracket, aux. radiator, upper left | 1 | 51647422297 | Shop at ECS Tuning | ||||||
| For vehicles with Motorsport engineering package and Hot-climate version |
S33TA=Yes S823A=Yes |
|||||||||
| 13 | Bracket, aux. radiator, upper right | 1 | 51647422298 | Shop at ECS Tuning | ||||||
| For vehicles with Motorsport engineering package |
S33TA=Yes |
|||||||||
| 14 | Bracket, aux. radiator, lower left | 1 | 51647422299 | Shop at ECS Tuning | ||||||
| For vehicles with Motorsport engineering package and Hot-climate version |
S33TA=Yes S823A=Yes |
|||||||||
| 14 | Bracket, aux. radiator, lower right | 1 | 51647422300 | Shop at ECS Tuning | ||||||
| 15 | Expanding rivet | D = 6MM | 10 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M6X20-8.8 | 4 | 07119907898 | Shop at ECS Tuning | |||||
| 17 | Oval-head screw with spring washer | M6X20 | 7 | 09/2022 | 07145A48F72 | Shop at ECS Tuning | ||||
| 18 | C-clip for plastic nut | TS5 | 4 | 07147311312 | Shop at ECS Tuning | |||||
| 19 | Hex bolt | TS5X20 SW8 D=22 | 5 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | TS5X20SW10 D=22 | 5 | 08/2021 | 07149481168 | Shop at ECS Tuning | ||||
| 20 | C-clip nut | 2 | 51717065773 | Shop at ECS Tuning | ||||||
| 21 | Oval-head screw with washer | ISA M6X21 | 2 | 07147263759 | Shop at ECS Tuning | |||||
| 22 | Hex bolt | M10X60 | 4 | 07119909527 | Shop at ECS Tuning | |||||
| 23 | Retaining pin | 1 | 51129850687 | Shop at ECS Tuning | ||||||
