Trim cover, rear for BMW 4 Series G22 Coupé LCI 420d (2025)

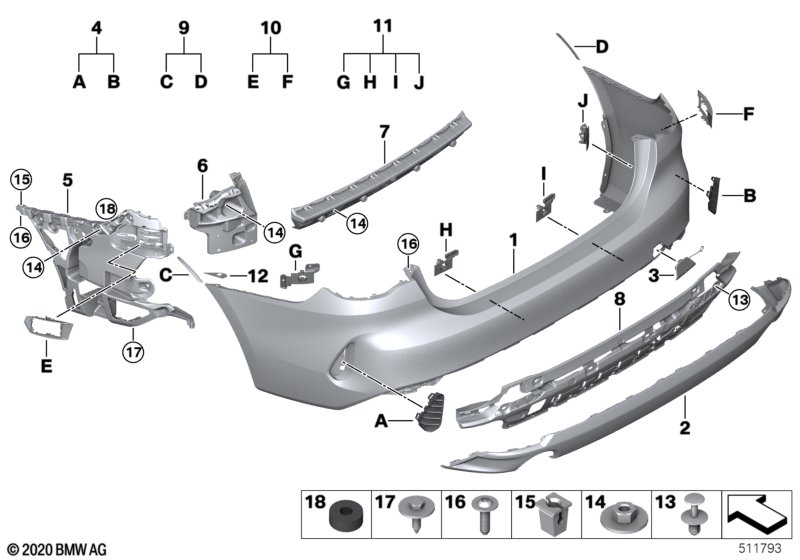

This Trim cover, rear technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé LCI 420d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=Yes S5DNA=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | PDC/ PMA | 1 | 51129850245 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=Yes S5DNA=No |
|||||||||
| 01 | Bumper trim panel, primed, rear | PDC/ PMA | 1 | 51129850245 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=No S5DNA=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | PDC/ PMA | 1 | 51129850245 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=No S5DNA=No |
|||||||||
| 01 | Bumper trim panel, primed, rear | BASIS | 1 | 51129850243 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=No S5DNA=No |
|||||||||
| 01 | Bumper trim panel, primed, rear | PDC | 1 | 51129850244 | Shop at ECS Tuning | |||||
| 02 | Trim panel, bumper, rear, bottom | LINES | 1 | 07/2028 | 51128499245 | Shop at ECS Tuning | ||||
| 03 | Cover, tow fitting, rear, primed | 1 | 51129850246 | Shop at ECS Tuning | ||||||
| 04 | Set grilles bumper rear | 1 | 51129854827 | Shop at ECS Tuning | ||||||
| 05 | Mount, lateral rear left | 1 | 51127490725 | Shop at ECS Tuning | ||||||
| 05 | Mount, lateral rear right | 1 | 51127490726 | Shop at ECS Tuning | ||||||
| 06 | Mount, lateral rear left | 1 | 51127497111 | Shop at ECS Tuning | ||||||
| 06 | Mount, lateral rear right | 1 | 51127497112 | Shop at ECS Tuning | ||||||
| 07 | Guide, center rear | 1 | 51127490723 | Shop at ECS Tuning | ||||||
| 08 | Adapter, rear bumper | 1 | 51127490719 | Shop at ECS Tuning | ||||||
| 09 | Set of spacers rear primed | 1 | 51775B32D60 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=Yes S5DNA=Yes |
|||||||||
| 10 | Set absorber funnel | M | 1 | 51129850255 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=Yes S5DNA=No |
|||||||||
| 10 | Set absorber funnel | M | 1 | 51129850255 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=No S5DNA=Yes |
|||||||||
| 10 | Set absorber funnel | M | 1 | 51129850255 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) or Parking assistance system or Parking assistance system Plus |
S508A=Yes S5DMA=Yes S5DNA=Yes |
|||||||||
| 11 | Kit, mount for PDC/PMA sensor, rear | 1 | 51779850248 | Shop at ECS Tuning | ||||||
| 12 | Protective film, rear bumper left | 1 | 51125A02651 | Shop at ECS Tuning | ||||||
| 12 | Protective film, right rear bumper | 1 | 51125A02652 | Shop at ECS Tuning | ||||||
| 13 | Expanding rivet | 8 | 07147401727 | Shop at ECS Tuning | ||||||
| 14 | Combination nut | 19 | 07147305178 | Shop at ECS Tuning | ||||||
| 15 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 16 | Fillister head screw | ST5X17-ZNS3 | 2 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | TS5X20 SW8 D=22 | 6 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 18 | Gasket ring | 2 | 51127256354 | Shop at ECS Tuning | ||||||
