Trim, decor elements, front for BMW 4 Series G26 Gran Coupé 420dX (2024)

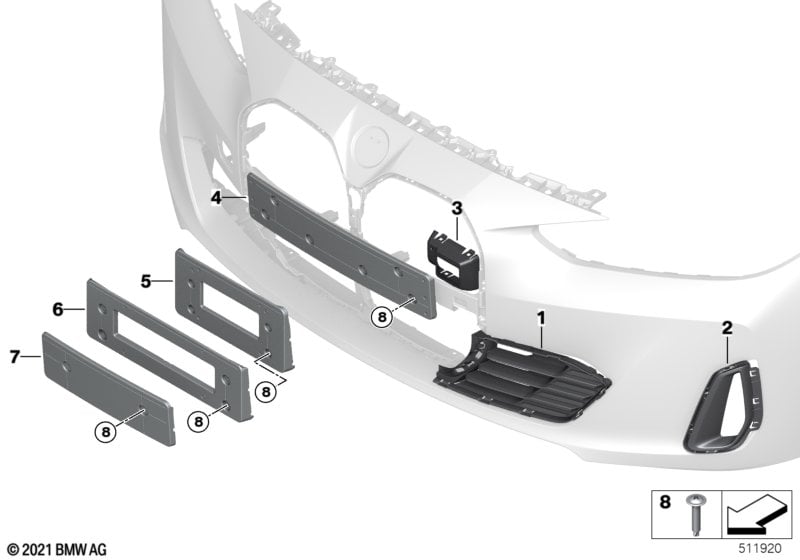

This Trim, decor elements, front technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 420dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| 01 | Fresh air grille partialy closed left | 1 | 51118738609 | Shop at ECS Tuning | ||||||
| 01 | Grill, air intake, part closed, right | 1 | 51118738610 | Shop at ECS Tuning | ||||||
| 02 | Air Curtain left | 1 | 51117947063 | Shop at ECS Tuning | ||||||
| 02 | Air Curtain right | 1 | 51117947064 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S5AQA=Yes S5AUA=No S5DFA=Yes |
|||||||||
| 03 | Cover | MRR | 1 | 51118738602 | Shop at ECS Tuning | |||||
| For vehicles with Active Guard Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S5AQA=Yes S5AUA=No S5DFA=No |
|||||||||
| 03 | Cover | MRR | 1 | 51118738602 | Shop at ECS Tuning | |||||
| For vehicles with Active Guard Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S5AQA=No S5AUA=No S5DFA=Yes |
|||||||||
| 03 | Cover | MRR | 1 | 51118738602 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and National version China and Control of number-plate attachment and Outer skin protection |
L802A=No L807A=No L8AAA=No S992A=No S9AAA=No |
|||||||||
| 04 | License-plate carrier front | ECE | 1 | 51138738599 | Shop at ECS Tuning | |||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 05 | License-plate carrier front | US/JAP | 1 | 51138738600 | Shop at ECS Tuning | |||||
| For vehicles with STEUERUNG KENNZEICHENBEFESTIGUNG II |
S99AA=Yes |
|||||||||
| 07 | License-plate carrier front | CH/IT | 1 | 51137011101 | Shop at ECS Tuning | |||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 08 | Fillister head screw | TS 5X16 | 2 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 08 | Fillister head screw | TS5X20 | 4 | 07146986938 | $0.45 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Control of number-plate attachment |
L8AAA=Yes S992A=Yes |
|||||||||
| 08 | Fillister head screw | TS 5X16 | 4 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Control of number-plate attachment |
L8AAA=No S992A=Yes |
|||||||||
| 08 | Fillister head screw | TS 5X16 | 4 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Control of number-plate attachment |
L8AAA=No S992A=No |
|||||||||
| 08 | Fillister head screw | TS 5X16 | 4 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
