M trim decor elements, front for BMW 4 Series G26 Gran Coupé 430dX (2024)

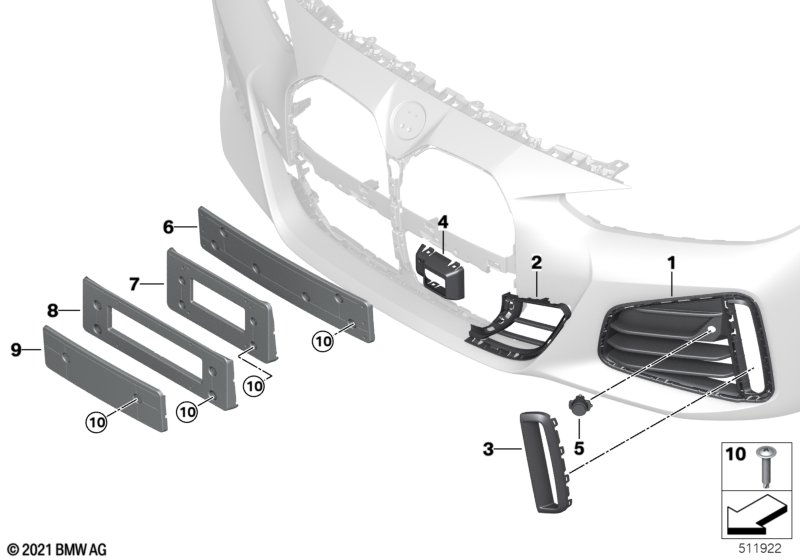

This M trim decor elements, front technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| 01 | Grill for air intake, closed, left | 1 | 51118078605 | Shop at ECS Tuning | ||||||
| 01 | Grill, air intake, closed, right | 1 | 51118078606 | Shop at ECS Tuning | ||||||
| 02 | Grille air inlet brake air duct left | 1 | 51118081681 | Shop at ECS Tuning | ||||||
| 02 | Grille air inlet brake air duct right | 1 | 51118081682 | Shop at ECS Tuning | ||||||
| For vehicles with M exterior pack carbon |
S71CA=No |
|||||||||
| 03 | Trim on grill, side, left | 1 | 51118078613 | Shop at ECS Tuning | ||||||
| 03 | Trim on grill, side, right | 1 | 51118078614 | Shop at ECS Tuning | ||||||
| For vehicles with M exterior pack carbon |
S71CA=Yes |
|||||||||
| 03 | Trim on grill, side, left | CFK | 1 | 51118081685 | Shop at ECS Tuning | |||||
| 03 | Trim on grill, side, right | CFK | 1 | 51118081686 | Shop at ECS Tuning | |||||
| For vehicles with Active Guard Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S5AQA=Yes S5AUA=No S5DFA=Yes |
|||||||||
| 04 | Cover | MRR | 1 | 51118738602 | Shop at ECS Tuning | |||||
| For vehicles with Active Guard Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S5AQA=Yes S5AUA=No S5DFA=No |
|||||||||
| 04 | Cover | MRR | 1 | 51118738602 | Shop at ECS Tuning | |||||
| For vehicles with Active Guard Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S5AQA=No S5AUA=No S5DFA=Yes |
|||||||||
| 04 | Cover | MRR | 1 | 51118738602 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=No S5DNA=No |
|||||||||
| 05 | Blind plug | 2 | 51117490189 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and National version China and Control of number-plate attachment and Outer skin protection |
L802A=No L807A=No L8AAA=No S992A=No S9AAA=No |
|||||||||
| 06 | License-plate carrier front | ECE | 1 | 51138738599 | Shop at ECS Tuning | |||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 07 | License-plate carrier front | US/JAP | 1 | 51138738600 | Shop at ECS Tuning | |||||
| For vehicles with STEUERUNG KENNZEICHENBEFESTIGUNG II |
S99AA=Yes |
|||||||||
| 09 | License-plate carrier front | CH/IT | 1 | 51137011101 | Shop at ECS Tuning | |||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 10 | Fillister head screw | TS 5X16 | 2 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 10 | Fillister head screw | TS5X20 | 4 | 07146986938 | $0.45 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Control of number-plate attachment |
L8AAA=Yes S992A=Yes |
|||||||||
| 10 | Fillister head screw | TS 5X16 | 4 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Control of number-plate attachment |
L8AAA=No S992A=Yes |
|||||||||
| 10 | Fillister head screw | TS 5X16 | 4 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Control of number-plate attachment |
L8AAA=No S992A=No |
|||||||||
| 10 | Fillister head screw | TS 5X16 | 4 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G26 Gran Coupé 430dX M trim decor elements, front?
- This technical diagram illustrates the M trim decor elements, front within the Vehicle trim group for the 4 Series G26 Gran Coupé 430dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Grill for air intake, closed, left (Part #51118078605).
- Which models use the hardware listed in this M trim decor elements, front?
- The hardware and components featured in the M trim decor elements, front are specific to the 4 Series G26 Gran Coupé 430dX produced during 2024. These technical specifications ensure that parts like the Grill for air intake, closed, left (51118078605) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the M trim decor elements, front assembly?
- Each item in the M trim decor elements, front corresponds to the numbered list below the illustration. For the 4 Series G26 Gran Coupé 430dX, you can identify the Grill for air intake, closed, left by locating its position on the schematic, which then links to the official BMW part number 51118078605 for the Vehicle trim section.
