M cover for rocker panel / wheel arch for BMW 4 Series G26 Gran Coupé 430iX (2024)

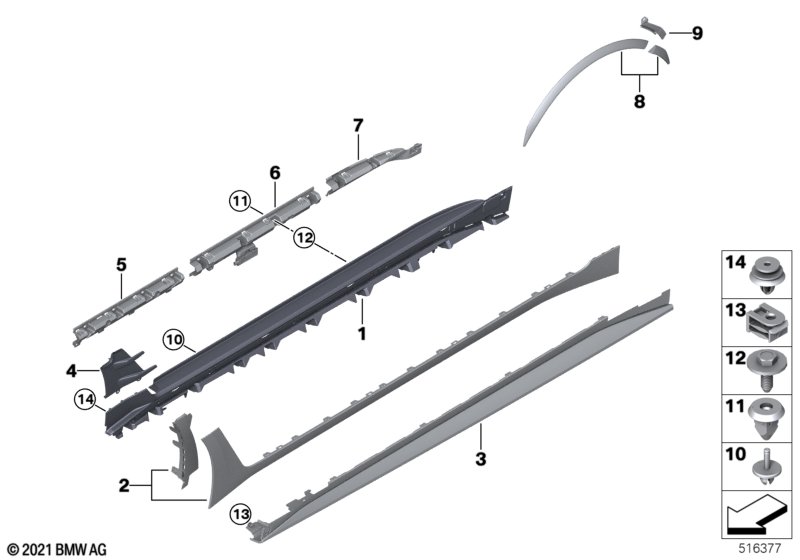

This M cover for rocker panel / wheel arch technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| 01 | Door sill trim panel upper section left | GLOSSY BLACK | 1 | 51775A360F3 | Shop at ECS Tuning | |||||
| 01 | Door sill trim panel upper section right | GLOSSY BLACK | 1 | 51775A360F4 | Shop at ECS Tuning | |||||
| 02 | Rocker panel trim, primed, left | 1 | 51175A1D993 | Shop at ECS Tuning | ||||||
| 02 | Rocker panel trim, primed, right | 1 | 51175A1D994 | Shop at ECS Tuning | ||||||
| For vehicles with Ambient interior lighting |
S4URA=Yes |
|||||||||
| 03 | Rocker panel cover lower section, left | 1 | 51775A360F7 | Shop at ECS Tuning | ||||||
| 03 | Rocker panel cover lower section, right | 1 | 51775A360F8 | Shop at ECS Tuning | ||||||
| For vehicles with Ambient interior lighting |
S4URA=No |
|||||||||
| 03 | Rocker panel cover lower section, left | 1 | 51775A360F5 | Shop at ECS Tuning | ||||||
| 03 | Rocker panel cover lower section, right | 1 | 51775A360F6 | Shop at ECS Tuning | ||||||
| 04 | Air humidifier, left | GLOSSY BLACK | 1 | 51775A09E13 | Shop at ECS Tuning | |||||
| 04 | Air humidifier, right | GLOSSY BLACK | 1 | 51775A09E14 | Shop at ECS Tuning | |||||
| 05 | Mount strip, rocker panel, fr. left | 1 | 51778737083 | Shop at ECS Tuning | ||||||
| 05 | Mount strip, rocker panel, fr. right | 1 | 51778737084 | Shop at ECS Tuning | ||||||
| 06 | Support strip, rocker panel, center left | 1 | 51778737091 | Shop at ECS Tuning | ||||||
| 06 | Support strip, rocker panel, center rgt | 1 | 51778737092 | Shop at ECS Tuning | ||||||
| 07 | Mount strip, rocker panel, rear left | 1 | 51778737089 | Shop at ECS Tuning | ||||||
| 07 | Mount strip, rocker panel, rear right | 1 | 51778737090 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=No L8LAA=No S3FWA=Yes S8LRA=No |
|||||||||
| 08 | Set flap rear | 1 | 51775A3F259 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=Yes L8LAA=Yes S3FWA=No S8LRA=Yes |
|||||||||
| 09 | Flap rear left | 1 | 51129881471 | Shop at ECS Tuning | ||||||
| 09 | Aerodynamic cover rear right | 1 | 51129881472 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=Yes L8LAA=Yes S3FWA=No S8LRA=No |
|||||||||
| 09 | Flap rear left | 1 | 51129881471 | Shop at ECS Tuning | ||||||
| 09 | Aerodynamic cover rear right | 1 | 51129881472 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=Yes L8LAA=No S3FWA=No S8LRA=Yes |
|||||||||
| 09 | Flap rear left | 1 | 51129881471 | Shop at ECS Tuning | ||||||
| 09 | Aerodynamic cover rear right | 1 | 51129881472 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=Yes L8LAA=No S3FWA=No S8LRA=No |
|||||||||
| 09 | Flap rear left | 1 | 51129881471 | Shop at ECS Tuning | ||||||
| 09 | Aerodynamic cover rear right | 1 | 51129881472 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=No L8LAA=Yes S3FWA=No S8LRA=Yes |
|||||||||
| 09 | Flap rear left | 1 | 51129881471 | Shop at ECS Tuning | ||||||
| 09 | Aerodynamic cover rear right | 1 | 51129881472 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=No L8LAA=Yes S3FWA=No S8LRA=No |
|||||||||
| 09 | Flap rear left | 1 | 51129881471 | Shop at ECS Tuning | ||||||
| 09 | Aerodynamic cover rear right | 1 | 51129881472 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=No L8LAA=No S3FWA=No S8LRA=Yes |
|||||||||
| 09 | Flap rear left | 1 | 51129881471 | Shop at ECS Tuning | ||||||
| 09 | Aerodynamic cover rear right | 1 | 51129881472 | Shop at ECS Tuning | ||||||
| 10 | Expanding rivet | 40 | 07147213303 | Shop at ECS Tuning | ||||||
| 11 | Expanding nut | 8X8 MM | 4 | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
| 12 | Hex head screw | 4 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 13 | C-clip for plastic nut | TS5 | 2 | 07147311312 | Shop at ECS Tuning | |||||
| 14 | Clip, grey | 22 | 07147460560 | Shop at ECS Tuning | ||||||
