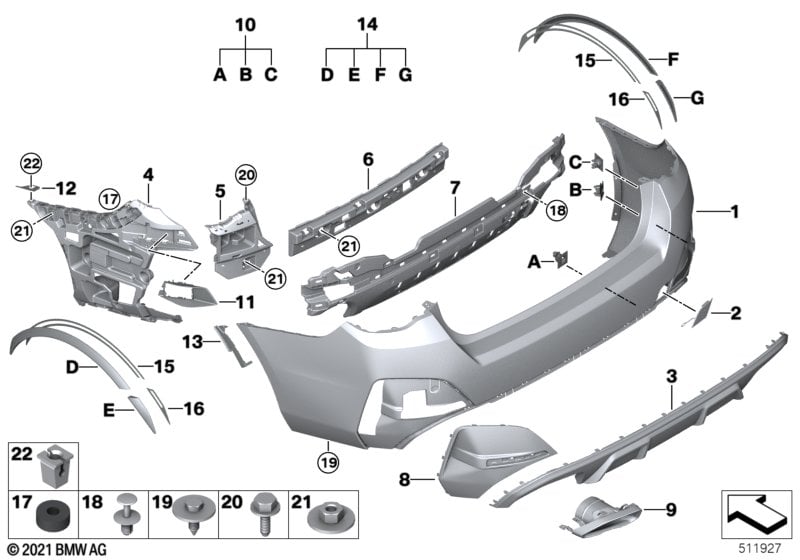

M Trim, rear for BMW 4 Series G26 Gran Coupé 430i (2024)
This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=Yes S5DNA=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | M PMA | 1 | 51125A1DB03 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=Yes S5DNA=No |
|||||||||
| 01 | Bumper trim panel, primed, rear | M PMA | 1 | 51125A1DB03 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=No S5DNA=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | M PMA | 1 | 51125A1DB03 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=No S5DNA=No |
|||||||||
| 01 | Bumper trim panel, primed, rear | M | 1 | 51125A1DB01 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=No S5DNA=No |
|||||||||
| 01 | Bumper trim panel, primed, rear | M PDC | 1 | 51125A1DB02 | Shop at ECS Tuning | |||||
| 02 | Cover, tow coupling, primed | M | 1 | 51125A1DB04 | Shop at ECS Tuning | |||||
| 03 | Trim panel, bumper, rear, bottom | M | 1 | 51128078595 | Shop at ECS Tuning | |||||
| 04 | Mount, bumper rear left | M | 1 | 51128078585 | Shop at ECS Tuning | |||||
| 04 | Bumper trim right rear | M | 1 | 51128078586 | Shop at ECS Tuning | |||||
| 05 | Mount for bumper, corner, rear left | 1 | 51128737093 | Shop at ECS Tuning | ||||||
| 05 | Mount for bumper, corner, rear right | 1 | 51128737094 | Shop at ECS Tuning | ||||||
| 06 | Mount for bumper, rear | 1 | 51128737070 | Shop at ECS Tuning | ||||||
| 07 | Adapter for support rear | 1 | 51128078596 | Shop at ECS Tuning | ||||||
| For vehicles with M exterior pack carbon |
S71CA=Yes |
|||||||||
| 08 | Cover, bumper, rear left | CFK | 1 | 51128081711 | Shop at ECS Tuning | |||||
| 08 | Cover, bumper, rear right | CFK | 1 | 51128081712 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus and M exterior pack carbon |
S508A=Yes S5DMA=Yes S5DNA=Yes S71CA=No |
|||||||||
| 08 | Cover, bumper, rear left | 1 | 51125A1F365 | Shop at ECS Tuning | ||||||
| 08 | Cover, bumper, rear right | 1 | 51125A1F366 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus and M exterior pack carbon |
S508A=Yes S5DMA=Yes S5DNA=No S71CA=No |
|||||||||
| 08 | Cover, bumper, rear left | 1 | 51125A1F365 | Shop at ECS Tuning | ||||||
| 08 | Cover, bumper, rear right | 1 | 51125A1F366 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus and M exterior pack carbon |
S508A=Yes S5DMA=No S5DNA=Yes S71CA=No |
|||||||||
| 08 | Cover, bumper, rear left | 1 | 51125A1F365 | Shop at ECS Tuning | ||||||
| 08 | Cover, bumper, rear right | 1 | 51125A1F366 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus and M exterior pack carbon |
S508A=Yes S5DMA=No S5DNA=No S71CA=No |
|||||||||
| 08 | Cover, bumper, rear left | 1 | 51125A1F365 | Shop at ECS Tuning | ||||||
| 08 | Cover, bumper, rear right | 1 | 51125A1F366 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus and M exterior pack carbon |
S508A=No S5DMA=Yes S5DNA=Yes S71CA=No |
|||||||||
| 08 | Cover, bumper, rear left | 1 | 51125A1F365 | Shop at ECS Tuning | ||||||
| 08 | Cover, bumper, rear right | 1 | 51125A1F366 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus and M exterior pack carbon |
S508A=No S5DMA=Yes S5DNA=No S71CA=No |
|||||||||
| 08 | Cover, bumper, rear left | 1 | 51125A1F365 | Shop at ECS Tuning | ||||||
| 08 | Cover, bumper, rear right | 1 | 51125A1F366 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus and M exterior pack carbon |
S508A=No S5DMA=No S5DNA=Yes S71CA=No |
|||||||||
| 08 | Cover, bumper, rear left | 1 | 51125A1F365 | Shop at ECS Tuning | ||||||
| 08 | Cover, bumper, rear right | 1 | 51125A1F366 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus and M exterior pack carbon |
S508A=No S5DMA=No S5DNA=No S71CA=No |
|||||||||
| 08 | Bumper trim rear left | M | 1 | 51128078587 | Shop at ECS Tuning | |||||
| 08 | Cover, bumper, rear right | M | 1 | 51128078588 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) or Parking assistance system or Parking assistance system Plus |
S508A=Yes S5DMA=Yes S5DNA=Yes |
|||||||||
| 10 | Kit, mount for PDC/PMA sensor, rear | M | 1 | 51125A1DB05 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=Yes S5AUA=Yes |
|||||||||
| 11 | Absorber funnel, left | M | 1 | 51128081429 | Shop at ECS Tuning | |||||
| 11 | Absorber funnel, right | M | 1 | 51128081430 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=Yes S5AUA=No |
|||||||||
| 11 | Absorber funnel, left | M | 1 | 51128081429 | Shop at ECS Tuning | |||||
| 11 | Absorber funnel, right | M | 1 | 51128081430 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=No S5AUA=Yes |
|||||||||
| 11 | Absorber funnel, left | M | 1 | 51128081429 | Shop at ECS Tuning | |||||
| 11 | Absorber funnel, right | M | 1 | 51128081430 | Shop at ECS Tuning | |||||
| 12 | Protective film, rear bumper left | 1 | 51129625041 | Shop at ECS Tuning | ||||||
| 12 | Protective film, right rear bumper | 1 | 51129625042 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=Yes L8LAA=Yes S3FWA=No S8LRA=Yes |
|||||||||
| 13 | Flap rear left | 1 | 51129881471 | Shop at ECS Tuning | ||||||
| 13 | Aerodynamic cover rear right | 1 | 51129881472 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=Yes L8LAA=Yes S3FWA=No S8LRA=No |
|||||||||
| 13 | Flap rear left | 1 | 51129881471 | Shop at ECS Tuning | ||||||
| 13 | Aerodynamic cover rear right | 1 | 51129881472 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=Yes L8LAA=No S3FWA=No S8LRA=Yes |
|||||||||
| 13 | Flap rear left | 1 | 51129881471 | Shop at ECS Tuning | ||||||
| 13 | Aerodynamic cover rear right | 1 | 51129881472 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=Yes L8LAA=No S3FWA=No S8LRA=No |
|||||||||
| 13 | Flap rear left | 1 | 51129881471 | Shop at ECS Tuning | ||||||
| 13 | Aerodynamic cover rear right | 1 | 51129881472 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=No L8LAA=Yes S3FWA=No S8LRA=Yes |
|||||||||
| 13 | Flap rear left | 1 | 51129881471 | Shop at ECS Tuning | ||||||
| 13 | Aerodynamic cover rear right | 1 | 51129881472 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=No L8LAA=Yes S3FWA=No S8LRA=No |
|||||||||
| 13 | Flap rear left | 1 | 51129881471 | Shop at ECS Tuning | ||||||
| 13 | Aerodynamic cover rear right | 1 | 51129881472 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=No L8LAA=No S3FWA=No S8LRA=Yes |
|||||||||
| 13 | Flap rear left | 1 | 51129881471 | Shop at ECS Tuning | ||||||
| 13 | Aerodynamic cover rear right | 1 | 51129881472 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and BMW LA wheel double spoke 868M STD HP and Country-specific equipment Russia 10323 |
L8AAA=No L8LAA=No S3FWA=Yes S8LRA=No |
|||||||||
| 14 | Set flap rear | 1 | 51775A3F259 | Shop at ECS Tuning | ||||||
| 15 | Adhesive tape, left | 1 | 51775A3E6E3 | Shop at ECS Tuning | ||||||
| 15 | Adhesive tape, right | 1 | 51775A3E6E4 | Shop at ECS Tuning | ||||||
| 16 | Adhesive tape, left | 1 | 51775A3E6E5 | Shop at ECS Tuning | ||||||
| 16 | Adhesive tape, right | 1 | 51775A3E6E6 | Shop at ECS Tuning | ||||||
| 17 | Gasket ring | 2 | 51127256354 | Shop at ECS Tuning | ||||||
| For vehicles with Trailer coupling |
S3ACA=Yes |
|||||||||
| 18 | Expanding rivet | 4 | 07147401727 | Shop at ECS Tuning | ||||||
| For vehicles with Trailer coupling |
S3ACA=No |
|||||||||
| 18 | Expanding rivet | 8 | 07147401727 | Shop at ECS Tuning | ||||||
| 19 | Hex bolt | TS5X20SW10 D=22 | 6 | 07149481168 | Shop at ECS Tuning | |||||
| 20 | Fillister head screw | 2 | 07147118369 | $0.80 | Shop at ECS Tuning | |||||
| 21 | Combination nut | 19 | 07147305178 | Shop at ECS Tuning | ||||||
| 22 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
