Exterior mirror (S760A) for BMW 4 Series G23 Convertible 430i (2024)

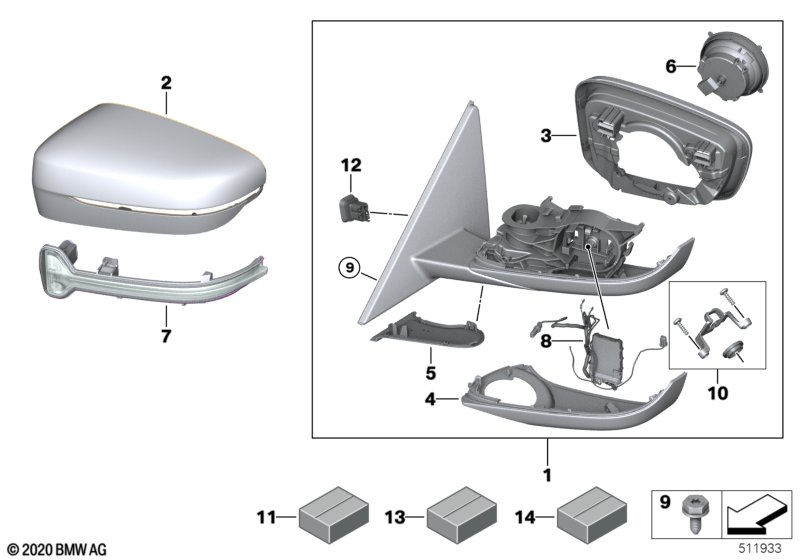

This Exterior mirror (S760A) technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sports package or Indiv. Ext. Line, burnished aluminium or High gloss shadow line |
P337A=Yes S3MBA=Yes S760A=Yes |
||||||||
| For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and High gloss shadow line |
P337A=Yes S3MBA=Yes S430A=No S5ASA=No S5AUA=No S5DNA=No S760A=Yes |
|||||||||
| 01 | Exterior mirror, heated, Memory, left | SHADOW-LINE | 1 | 51165B35461 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Outside mirror heated with memory,right | SHADOW-LINE | 1 | 51165A08374 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Torx screw, self-threading | M6X17 | 3 | 07149231823 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and High gloss shadow line |
P337A=Yes S3MBA=Yes S430A=Yes S5ASA=No S5AUA=No S5DNA=Yes S760A=Yes |
|||||||||
| 01 | Exterior mirror, heated, Memory, left | SHADOW-LINE | 1 | 51165B4B5F7 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 51168498269 | Shop at ECS Tuning | ||||||
| -- | Torx screw, self-threading | M6X17 | 3 | 07149231823 | Shop at ECS Tuning | |||||
| 01 | Aussenspiegel beheizt Memory rechts | SHADOW-LINE | 1 | 51165B4B5F8 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 51168498269 | Shop at ECS Tuning | ||||||
| -- | Torx screw, self-threading | M6X17 | 3 | 07149231823 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and High gloss shadow line |
P337A=Yes S3MBA=Yes S430A=Yes S5ASA=Yes S5AUA=Yes S5DNA=No S760A=Yes |
|||||||||
| 01 | Exterior mirror, heated, Memory, left | SHADOW-LINE | 1 | 51165B4B5F5 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Torx screw, self-threading | M6X17 | 3 | 07149231823 | Shop at ECS Tuning | |||||
| 01 | Aussenspiegel beheizt Memory rechts | SHADOW-LINE | 1 | 51165B4B5F6 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Torx screw, self-threading | M6X17 | 3 | 07149231823 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and High gloss shadow line |
P337A=Yes S3MBA=Yes S430A=Yes S5ASA=No S5AUA=No S5DNA=No S760A=Yes |
|||||||||
| 01 | Exterior mirror, heated, Memory, left | SHADOW-LINE | 1 | 51165B4B5F1 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Torx screw, self-threading | M6X17 | 3 | 07149231823 | Shop at ECS Tuning | |||||
| 01 | Aussenspiegel beheizt Memory rechts | SHADOW-LINE | 1 | 51165B4B5F2 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Torx screw, self-threading | M6X17 | 3 | 07149231823 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus and High gloss shadow line |
P337A=Yes S3MBA=Yes S430A=Yes S5ASA=Yes S5AUA=Yes S5DNA=Yes S760A=Yes |
|||||||||
| 01 | Exterior mirror, heated, Memory, left | SHADOW-LINE | 1 | 51165B4B5F9 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 51168498269 | Shop at ECS Tuning | ||||||
| -- | Torx screw, self-threading | M6X17 | 3 | 07149231823 | Shop at ECS Tuning | |||||
| 01 | Aussenspiegel beheizt Memory rechts | SHADOW-LINE | 1 | 51165B4B600 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 51168498269 | Shop at ECS Tuning | ||||||
| -- | Torx screw, self-threading | M6X17 | 3 | 07149231823 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and M exterior pack carbon and High gloss shadow line |
P337A=Yes S3MBA=Yes S71CA=No S760A=Yes |
|||||||||
| 02 | Outside mirror cover cap, left, primed | 1 | 51168492897 | Shop at ECS Tuning | ||||||
| 02 | Outside mirror cover cap, right, primed | 1 | 51168492898 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and MIrror caps, black and Indiv. Ext. Line, burnished aluminium and M exterior pack carbon and High gloss shadow line |
P337A=Yes S3BEA=No S3MBA=Yes S71CA=Yes S760A=Yes |
|||||||||
| 02 | Mirror cap left carbon | 1 | 51168077361 | Shop at ECS Tuning | ||||||
| 02 | Mirror cap right carbon | 1 | 51168077362 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
P337A=Yes S3MBA=Yes S760A=Yes |
|||||||||
| 03 | Supporting ring left | SHADOW-LINE | 1 | 51167498193 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 03 | Supporting ring right | SHADOW-LINE | 1 | 51167498194 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51168498268 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and Parking assistance system Plus and High gloss shadow line |
P337A=Yes S3MBA=Yes S5DNA=No S760A=Yes |
|||||||||
| 04 | Housing lower section, left | SHADOW-LINE | 1 | 51167498203 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Housing lower section, right | SHADOW-LINE | 1 | 51167498204 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit exterior rearview mirror | 1 | 51168496665 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and Parking assistance system Plus and High gloss shadow line |
P337A=Yes S3MBA=Yes S5DNA=Yes S760A=Yes |
|||||||||
| 04 | Housing lower section, left | SHADOW-LINE | 1 | 51167498211 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Housing lower section, right | SHADOW-LINE | 1 | 51167498212 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit exterior rearview mirror | 1 | 51168496665 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
P337A=Yes S3MBA=Yes S760A=Yes |
|||||||||
| 05 | Set of mirror base caps | 1 | 51169464424 | Shop at ECS Tuning | ||||||
| 06 | Power, outside mirror, LIN bus | 2 | 67137266659 | +core | Shop at ECS Tuning | |||||
| 07 | Auxiliary turn signal, mirror, left | 1 | 63137498159 | Shop at ECS Tuning | ||||||
| 07 | Auxiliary turn signal, mirror, right | 1 | 63137498160 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional |
S430A=Yes S5ASA=Yes S5AUA=Yes |
|||||||||
| 08 | Mirror electronics, right | 1 | 67135A3DB24 | Shop at ECS Tuning | ||||||
| 08 | Mirror electronics, left | 1 | 67135A3DB25 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional |
S430A=No S5ASA=No S5AUA=No |
|||||||||
| 08 | Mirror electronics, left | 1 | 67135A3DB15 | Shop at ECS Tuning | ||||||
| 08 | Mirror electronics, left | 1 | 67135B41F07 | Shop at ECS Tuning | ||||||
| 08 | Mirror electronics, right | 1 | 67135A3DB16 | Shop at ECS Tuning | ||||||
| 08 | Mirror electronics, right | 1 | 67135B41F08 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional |
S430A=Yes S5ASA=No S5AUA=No |
|||||||||
| 08 | Mirror electronics, right | 1 | 67135A3DB18 | Shop at ECS Tuning | ||||||
| 08 | Mirror electronics, left | 1 | 67135A3DB21 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
P337A=Yes S3MBA=Yes S760A=Yes |
|||||||||
| 09 | Torx screw, self-threading | M6X17 | 6 | 07149231823 | Shop at ECS Tuning | |||||
| 10 | Set of camera mounts for exterior mirror | 1 | 51168498269 | Shop at ECS Tuning | ||||||
| 11 | Set of screws | 1 | 51168498268 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and Parking assistance system Plus and High gloss shadow line |
P337A=Yes S3MBA=Yes S5DNA=No S760A=Yes |
|||||||||
| 12 | Plug | 2 | 51167498236 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and Parking assistance system Plus and High gloss shadow line |
P337A=Yes S3MBA=Yes S5DNA=Yes S760A=Yes |
|||||||||
| 12 | Plug | 2 | 51167498237 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
P337A=Yes S3MBA=Yes S760A=Yes |
|||||||||
| 13 | Repair kit exterior rearview mirror | 1 | 51168496665 | Shop at ECS Tuning | ||||||
| 14 | Repair kit cable exterior mirror | 1 | 61359853372 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
