M trim decor elements, front for BMW 4 Series G82 M4 Coupé M4 (2024)

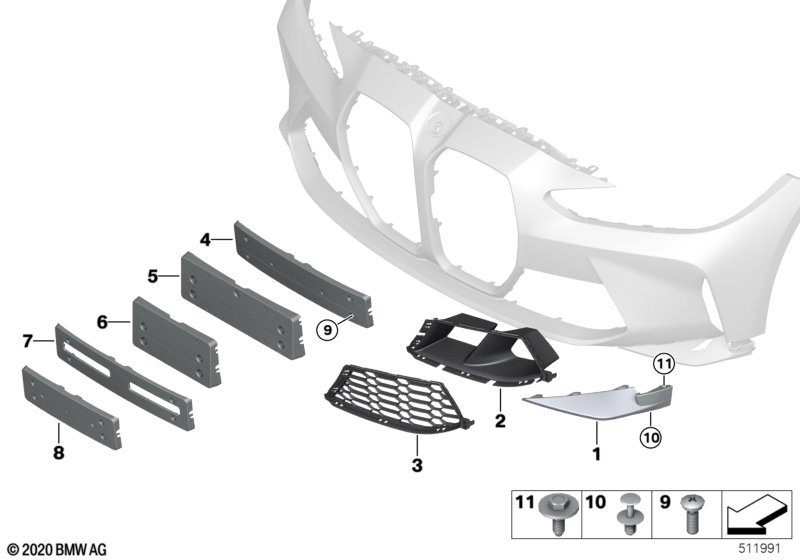

This M trim decor elements, front technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support cover, left, painted | 1 | 51118084177 | Shop at ECS Tuning | ||||||
| 01 | Support cover, right, painted | 1 | 51118084178 | Shop at ECS Tuning | ||||||
| For vehicles with M exterior pack carbon |
S71CA=Yes |
|||||||||
| 02 | Frame air inlet left | CFK | 1 | 51118074773 | Shop at ECS Tuning | |||||
| 02 | Frame air inlet right | CFK | 1 | 51118074774 | Shop at ECS Tuning | |||||
| For vehicles with M exterior pack carbon |
S71CA=No |
|||||||||
| 03 | Grill, air intake, left | M | 1 | 51118069439 | Shop at ECS Tuning | |||||
| 03 | Grill, air intake, right | M | 1 | 51118069440 | Shop at ECS Tuning | |||||
| 06 | License-plate carrier front | US/JAP | 1 | 51118069435 | Shop at ECS Tuning | |||||
| 09 | Phillips screw f plastic material | TS 5X13 | 4 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 10 | Expanding rivet | D = 8MM | 6 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Hex head screw | 2 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
