Outside mirror for BMW 4 Series G82 M4 Coupé M4 (2024)

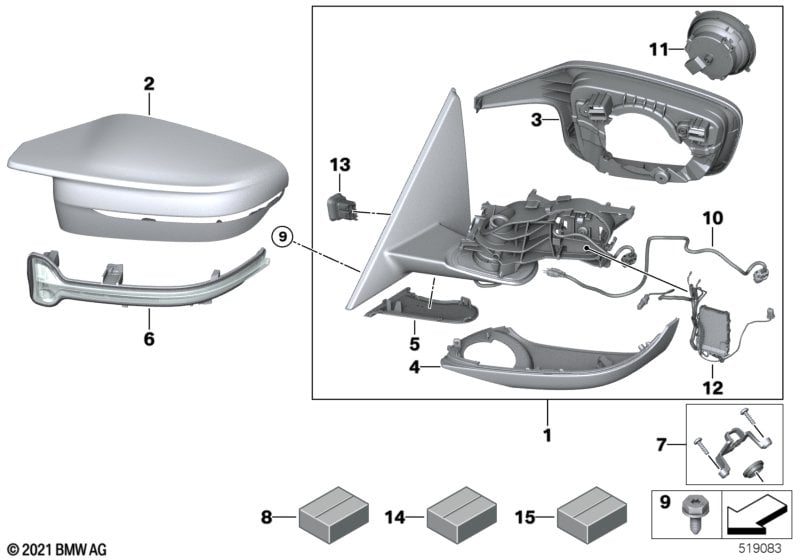

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S430A=Yes S5ASA=No S5AUA=No S5DNA=Yes |
|||||||||
| 01 | Outside mirror heated with memory, left | 1 | 51168084349 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 01 | Exterior mirror, heated, Memory, left | EC | 1 | 51165B4C375 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Outside mirror heated with memory,right | 1 | 51168084350 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 01 | Aussenspiegel beheizt Memory rechts | 1 | 51165B4C376 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 51168498269 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S430A=Yes S5ASA=Yes S5AUA=Yes S5DNA=No |
|||||||||
| 01 | Outside mirror heated with memory, left | 1 | 51168084345 | Shop at ECS Tuning | ||||||
| 01 | Exterior mirror, heated, Memory, left | EC HC2 | 1 | 51165B4C373 | Shop at ECS Tuning | |||||
| 01 | Outside mirror heated with memory,right | 1 | 51168084346 | Shop at ECS Tuning | ||||||
| 01 | Aussenspiegel beheizt Memory rechts | HC2 | 1 | 51165B4C374 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S430A=No S5ASA=No S5AUA=No S5DNA=No |
|||||||||
| 01 | Outside mirror heated with memory, left | 1 | 51168084337 | ENDED | Shop at ECS Tuning | |||||
| 01 | Exterior mirror, heated, Memory, left | MPA | 1 | 51165B4C369 | Shop at ECS Tuning | |||||
| 01 | Outside mirror heated with memory,right | 1 | 51168084338 | ENDED | Shop at ECS Tuning | |||||
| 01 | Aussenspiegel beheizt Memory rechts | MPA | 1 | 51165B4C370 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S430A=Yes S5ASA=No S5AUA=No S5DNA=No |
|||||||||
| 01 | Outside mirror heated with memory, left | 1 | 51168084341 | Shop at ECS Tuning | ||||||
| 01 | Exterior mirror, heated, Memory, left | EC | 1 | 51165B4C371 | Shop at ECS Tuning | |||||
| 01 | Outside mirror heated with memory,right | 1 | 51168084342 | Shop at ECS Tuning | ||||||
| 01 | Aussenspiegel beheizt Memory rechts | 1 | 51165B4C372 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S430A=Yes S5ASA=Yes S5AUA=Yes S5DNA=Yes |
|||||||||
| 01 | Outside mirror heated with memory, left | 1 | 51168084353 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 01 | Exterior mirror, heated, Memory, left | EC HC2 | 1 | 51165B4C377 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Outside mirror heated with memory,right | 1 | 51168084354 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 01 | Aussenspiegel beheizt Memory rechts | HC2 | 1 | 51165B4C378 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 51168498269 | Shop at ECS Tuning | ||||||
| For vehicles with M exterior pack carbon |
S71CA=Yes |
|||||||||
| 02 | Cover cap carbon, left | 1 | 51168075063 | Shop at ECS Tuning | ||||||
| 02 | Cover cap carbon, right | 1 | 51168075064 | Shop at ECS Tuning | ||||||
| For vehicles with M exterior pack carbon |
S71CA=No |
|||||||||
| 02 | Outside mirror cover cap, left, primed | MPA | 1 | 51169500711 | Shop at ECS Tuning | |||||
| 02 | Outside mirror cover cap, right, primed | MPA | 1 | 51169500712 | Shop at ECS Tuning | |||||
| 03 | Supporting ring, bright-black left | M | 1 | 51168746847 | Shop at ECS Tuning | |||||
| 03 | Supporting ring, bright-black right | M | 1 | 51168746848 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus |
S5DNA=No |
|||||||||
| 04 | Housing lower section, left | SHADOW-LINE | 1 | 51167498203 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Housing lower section, right | SHADOW-LINE | 1 | 51167498204 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit exterior rearview mirror | 1 | 51168496665 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 04 | Housing lower section, left | SHADOW-LINE | 1 | 51167498211 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Housing lower section, right | SHADOW-LINE | 1 | 51167498212 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit exterior rearview mirror | 1 | 51168496665 | Shop at ECS Tuning | ||||||
| 05 | Set of mirror base caps | 1 | 51169464424 | Shop at ECS Tuning | ||||||
| 06 | Auxiliary turn signal, mirror, left | 1 | 63137498159 | Shop at ECS Tuning | ||||||
| 06 | Auxiliary turn signal, mirror, right | 1 | 63137498160 | Shop at ECS Tuning | ||||||
| 07 | Set of camera mounts for exterior mirror | 1 | 51168498269 | Shop at ECS Tuning | ||||||
| 08 | Set of screws | 1 | 51168498268 | Shop at ECS Tuning | ||||||
| 09 | Hexagon screw, self-threading | M6X19 | 6 | 07147482347 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 10 | Wiring harness ICAM | 2 | 51167498233 | Shop at ECS Tuning | ||||||
| 11 | Drive, outside mirror | 2 | 67139447234 | Shop at ECS Tuning | ||||||
| 11 | Power, outside mirror, LIN bus | 2 | 67137266659 | +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51168498268 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant |
S430A=No S5ASA=No |
|||||||||
| 12 | Mirror electronics, left | 1 | 67135A21091 | ENDED | Shop at ECS Tuning | |||||
| 12 | Mirror electronics, right | 1 | 67135A21092 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant |
S430A=Yes S5ASA=No |
|||||||||
| 12 | Mirror electronics, right | 1 | 67135A21094 | ENDED | Shop at ECS Tuning | |||||
| 12 | Mirror electronics, left | 1 | 67135A21095 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant |
S430A=Yes S5ASA=Yes |
|||||||||
| 12 | Mirror electronics, right | 1 | 67135A372B6 | ENDED | Shop at ECS Tuning | |||||
| 12 | Mirror electronics, left | 1 | 67135A372B7 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus |
S5DNA=No |
|||||||||
| 13 | Plug | 2 | 51167498236 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 13 | Plug | 2 | 51167498237 | Shop at ECS Tuning | ||||||
| 14 | Repair kit exterior rearview mirror | 1 | 51168496665 | Shop at ECS Tuning | ||||||
| 15 | Repair kit cable exterior mirror | 1 | 61359853372 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
