Glove box for BMW MINI F56 LCI One (2024)

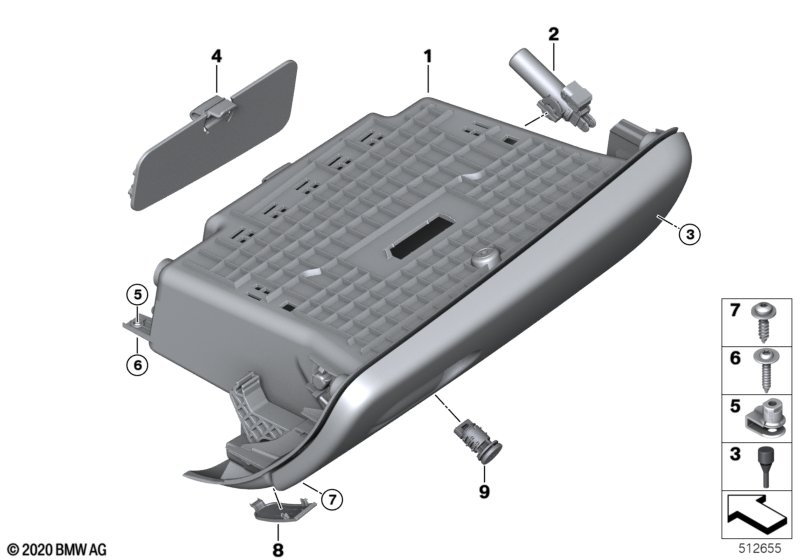

This Glove box technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glove box | 1 | 51169262362 | Shop at ECS Tuning | ||||||
| 02 | Glove box damper | 1 | 51169227250 | +core | Shop at ECS Tuning | |||||
| 03 | Rubber buffer | 2 | 51168161558 | $0.56 | Shop at ECS Tuning | |||||
| 04 | Cover, fuse box | 1 | 51459349585 | Shop at ECS Tuning | ||||||
| 05 | C-clip for plastic nut | 5 | 07149200938 | Shop at ECS Tuning | ||||||
| 06 | Oval-head screw with washer | DELTA PT4X20 | 5 | 07149185673 | Shop at ECS Tuning | |||||
| 07 | Fillister head self-tapp.screw w collar | ISA 4,2X19 | 2 | 07148263913 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Protective cap, glove compartment, left | 1 | 51169117995 | Shop at ECS Tuning | ||||||
| 08 | Protective cap, glove compartm., right | 1 | 51169117996 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
