Air ducts for BMW 4 Series G82 M4 Coupé M4 (2024)

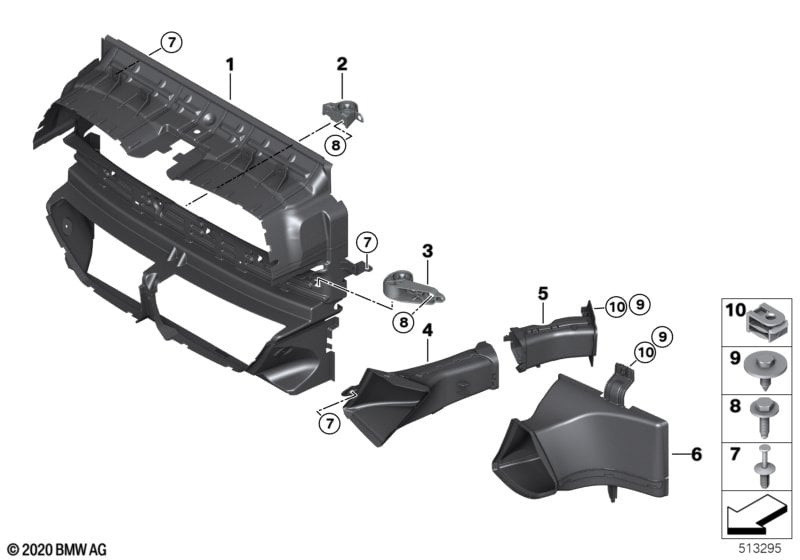

This Air ducts technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air duct, radiator | M | 1 | 51748074611 | Shop at ECS Tuning | |||||
| 02 | Support, top | M | 1 | 51748082505 | Shop at ECS Tuning | |||||
| 03 | Bracket, air duct, left | US | 1 | 51647457051 | Shop at ECS Tuning | |||||
| 03 | Bracket, air duct, right | US | 1 | 51647457052 | Shop at ECS Tuning | |||||
| 04 | Front left brake air duct | M | 1 | 51748072097 | Shop at ECS Tuning | |||||
| 04 | Front right brake air duct | M | 1 | 51748072098 | Shop at ECS Tuning | |||||
| 05 | Air duct, brake, wheelhousing, left | M | 1 | 51748072099 | Shop at ECS Tuning | |||||
| 05 | Air duct, brake, wheelhousing, right | M | 1 | 51748072100 | Shop at ECS Tuning | |||||
| 06 | Air duct, exterior radiator, left | M | 1 | 51748072093 | Shop at ECS Tuning | |||||
| 06 | Air duct, exterior radiator, right | M | 1 | 51748072094 | Shop at ECS Tuning | |||||
| 07 | Expanding rivet | D = 6MM | 12 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X20-8.8 | 6 | 07119907898 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | TS5X20 SW8 D=22 | 4 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | TS5X20SW10 D=22 | 4 | 08/2021 | 07149481168 | Shop at ECS Tuning | ||||
| 10 | C-clip for plastic nut | TS5 | 4 | 07147311312 | Shop at ECS Tuning |
