Cover, entrance for BMW 4 Series G26 Gran Coupé 420dX (2024)

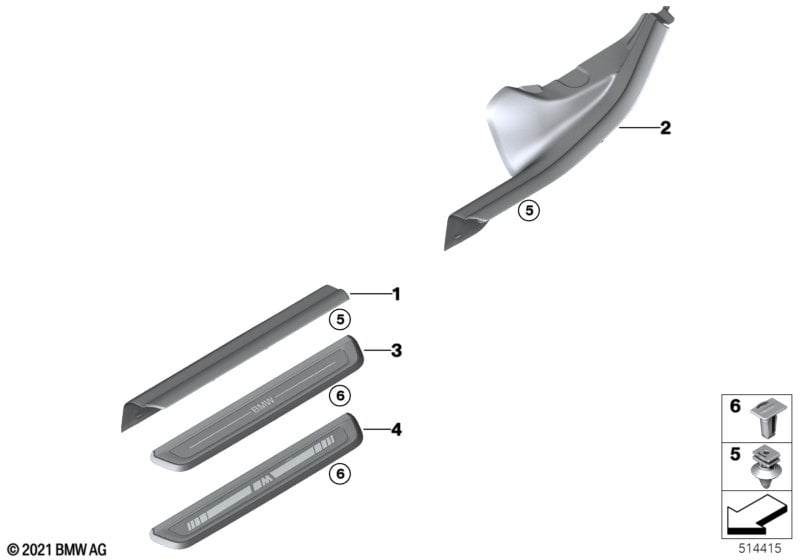

This Cover, entrance technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 420dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover strip, entrance front left | SCHWARZ | 1 | 51479871091 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover strip, entrance front right | SCHWARZ | 1 | 51479871092 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige, ext. |
KHFS=Yes |
|||||||||
| 01 | Cover strip, entrance front left | CANBERRABEIGE | 1 | 51479871089 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover strip, entrance front right | CANBERRABEIGE | 1 | 51479871090 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover strip, entrance rear left | SCHWARZ | 1 | 51479871087 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover strip, entrance rear right | SCHWARZ | 1 | 51479871088 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige, ext. |
KHFS=Yes |
|||||||||
| 02 | Cover strip, entrance rear left | CANBERRABEIGE | 1 | 51479871085 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover strip, entrance rear right | CANBERRABEIGE | 1 | 51479871086 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 03 | Front entrance cover | BMW | 2 | 51477407387 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 04 | Front entrance cover | MSP | 2 | 51478079739 | NoS | Shop at ECS Tuning | ||||
| 05 | Clip | 8 | 51477447096 | NoS | Shop at ECS Tuning | |||||
| 06 | Clip, yellow | L=11,2MM | 8 | 51478244458 | $0.35 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G26 Gran Coupé 420dX Cover, entrance?
- This technical diagram illustrates the Cover, entrance within the Vehicle trim group for the 4 Series G26 Gran Coupé 420dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Cover strip, entrance front left (Part #51479871091).
- Which models use the hardware listed in this Cover, entrance?
- The hardware and components featured in the Cover, entrance are specific to the 4 Series G26 Gran Coupé 420dX produced during 2024. These technical specifications ensure that parts like the Cover strip, entrance front left (51479871091) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cover, entrance assembly?
- Each item in the Cover, entrance corresponds to the numbered list below the illustration. For the 4 Series G26 Gran Coupé 420dX, you can identify the Cover strip, entrance front left by locating its position on the schematic, which then links to the official BMW part number 51479871091 for the Vehicle trim section.
