M trim decor elements, front for BMW 2 Series G42 220d (2025)

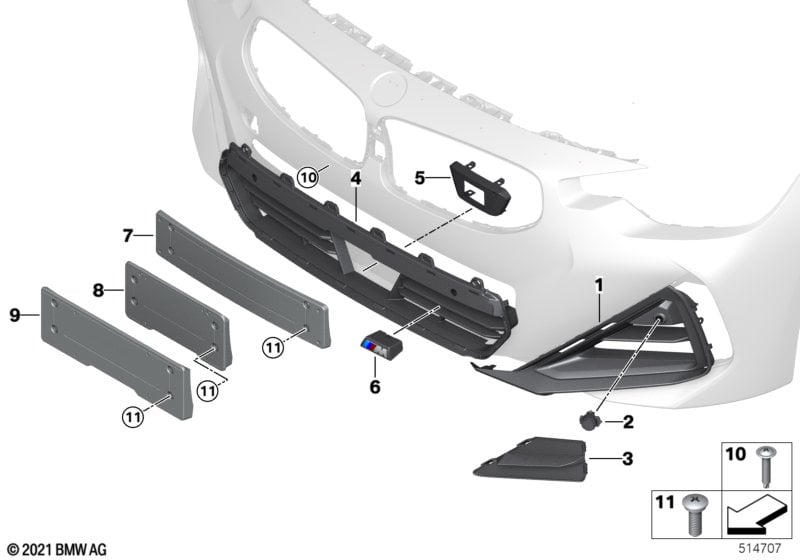

This M trim decor elements, front technical drawing provides a detailed breakdown of the assembly for the 2 Series G42 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| Item 3 is included in the scope of delivery |
||||||||||
| 01 | Grill, air intake, left | 1 | 51115A2FCC5 | Shop at ECS Tuning | ||||||
| 01 | Grill, air intake, right | 1 | 51115A2FCC6 | Shop at ECS Tuning | ||||||
| 03 | Cover left | 1 | 51118098179 | Shop at ECS Tuning | ||||||
| 03 | Cover right | 1 | 51118098180 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Active cruise control+Stop&Go function |
S5AQA=No S5DFA=No |
|||||||||
| 04 | Grill, air intake, center | 1 | 51115A2FCB0 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S5AQA=Yes S5AUA=No S5DFA=Yes |
|||||||||
| 04 | Grill, air intake, center | MRR | 1 | 51115A2FCA9 | Shop at ECS Tuning | |||||
| For vehicles with Active Guard Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S5AQA=Yes S5AUA=No S5DFA=No |
|||||||||
| 04 | Grill, air intake, center | MRR | 1 | 51115A2FCA9 | Shop at ECS Tuning | |||||
| For vehicles with Active Guard Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S5AQA=No S5AUA=No S5DFA=Yes |
|||||||||
| 04 | Grill, air intake, center | MRR | 1 | 51115A2FCA9 | Shop at ECS Tuning | |||||
| For vehicles with Active Guard Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S5AQA=Yes S5AUA=No S5DFA=Yes |
|||||||||
| 05 | Cover | MRR | 1 | 51117478822 | Shop at ECS Tuning | |||||
| For vehicles with Active Guard Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S5AQA=Yes S5AUA=No S5DFA=No |
|||||||||
| 05 | Cover | MRR | 1 | 51117478822 | Shop at ECS Tuning | |||||
| For vehicles with Active Guard Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S5AQA=No S5AUA=No S5DFA=Yes |
|||||||||
| 05 | Cover | MRR | 1 | 51117478822 | Shop at ECS Tuning | |||||
| 06 | Holder lettering | PERLGLANZ CHROM | 1 | 51115B5C4F7 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and Control of number-plate attachment |
L807A=No L8AAA=No S992A=No |
|||||||||
| 07 | License-plate carrier front | ECE | 1 | 51138098218 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Control of number-plate attachment |
L807A=Yes S992A=Yes |
|||||||||
| 08 | License-plate carrier front | US/JAP | 1 | 51138098219 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Control of number-plate attachment |
L807A=Yes S992A=No |
|||||||||
| 08 | License-plate carrier front | US/JAP | 1 | 51138098219 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Control of number-plate attachment |
L807A=No S992A=Yes |
|||||||||
| 08 | License-plate carrier front | US/JAP | 1 | 51138098219 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 09 | License-plate carrier front | CHN | 1 | 51138098217 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China |
L807A=No L8AAA=Yes |
|||||||||
| 10 | Fillister head screw | TS5X20 | 4 | 07146986938 | $0.45 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and National version China |
L807A=Yes L8AAA=No |
|||||||||
| 10 | Fillister head screw | TS 5X16 | 4 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and National version China and Control of number-plate attachment |
L807A=No L8AAA=No S992A=No |
|||||||||
| 10 | Fillister head screw | TS 5X16 | 4 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and National version China and Control of number-plate attachment |
L807A=No L8AAA=No S992A=Yes |
|||||||||
| 10 | Fillister head screw | TS 5X16 | 4 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and National version China and Control of number-plate attachment |
L807A=No L8AAA=No S992A=No |
|||||||||
| 11 | Phillips screw f plastic material | TS 5X13 | 6 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and National version China and Control of number-plate attachment |
L807A=No L8AAA=No S992A=Yes |
|||||||||
| 11 | Phillips screw f plastic material | TS 5X13 | 4 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
