Door trim panel, front for BMW 4 Series G26 Gran Coupé M440i (2024)

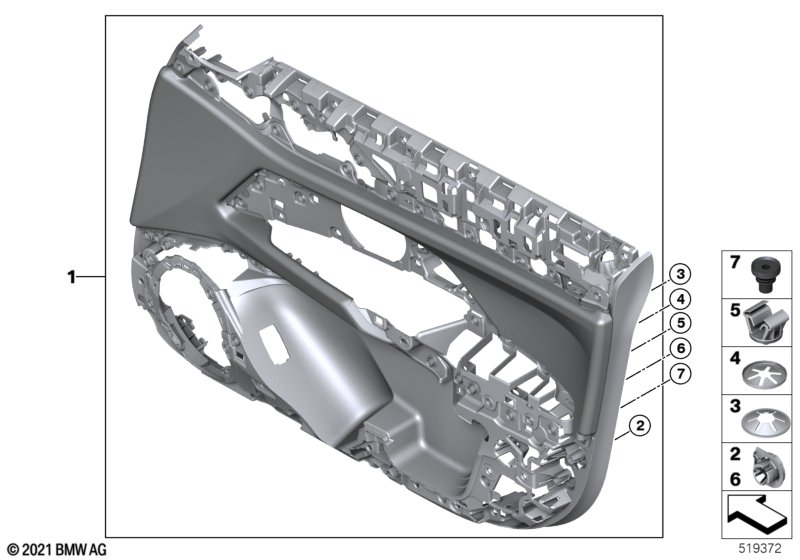

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé M440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 01 | Front door trim panel left | OYSTER | 1 | 51415A46B87 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | OYSTER | 1 | 51415A46B88 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/mocca decor.stitching |
MAMU=Yes |
|||||||||
| 01 | Front door trim panel left | MOKKA | 1 | 51415A46B83 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | MOKKA | 1 | 51415A46B84 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino tartufo or Individual full leather, tartufo |
VATQ=Yes VBTQ=Yes |
|||||||||
| 01 | Front door trim panel left | TARTUFO | 1 | 51415A41A15 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | TARTUFO | 1 | 51415A41A16 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Ind.leather extended/Fiona red/black or Individual full leather, Fiona Red/black |
VAHZ=Yes VBHZ=Yes |
|||||||||
| 01 | Front door trim panel left | SCHW. FIONAROT | 1 | 51415A41A13 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | SCHW. FIONAROT | 1 | 51415A41A14 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino ivory white or Individual full leather, ivory white |
VAEW=Yes VBEW=Yes |
|||||||||
| 01 | Front door trim panel left | ELFENBEINWEISS | 1 | 51415A41A11 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | ELFENBEINWEISS | 1 | 51415A41A12 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Tacora red or Leather Vernasca/tacora red dec.stitch. |
KHG7=Yes MAG6=Yes |
|||||||||
| 01 | Front door trim panel left | TACORAROT | 1 | 51415A46B73 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | TACORAROT | 1 | 51415A46B74 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
KHFR=Yes KHFY=Yes |
|||||||||
| 01 | Front door trim panel left | CANBERRABEIGE | 1 | 51415A46B67 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | CANBERRABEIGE | 1 | 51415A46B68 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/black or Leather, Vernasca, black, gray stitching |
KHSW=Yes MAH7=Yes |
|||||||||
| 01 | Front door trim panel left | SCHWARZ | 1 | 51415A46B63 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 51415A46B64 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac, extended or Leather, Vernasca, cognac, gy stitching |
KHKC=Yes MAPQ=Yes |
|||||||||
| 01 | Front door trim panel left | COGNAC | 1 | 51415A46B71 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | COGNAC | 1 | 51415A46B72 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alcantara sensatec.black / blue or Leather, Vernasca, black, blue stitching |
KGNL=Yes MANL=Yes |
|||||||||
| 01 | Front door trim panel left | SCHWARZ | 1 | 51415A42235 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 51415A42236 | NoS | Shop at ECS Tuning | ||||
| 02 | Clip | 1 | 51415A474A0 | NoS | Shop at ECS Tuning | |||||
| 03 | Axial securing clip | 5,75MM | 16 | 52207115704 | $0.32 | Shop at ECS Tuning | ||||
| 04 | Axial securing clip | 5,8MM | 2 | 07147295776 | Shop at ECS Tuning | |||||
| 05 | Clip | 2 | 41009806964 | Shop at ECS Tuning | ||||||
| 06 | Clip | 20 | 07149462118 | Shop at ECS Tuning | ||||||
| 07 | Stop buffer | 20 | 51437217734 | $2.10 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
