Surface-mounted parts, door panel, front for BMW 4 Series G26 Gran Coupé 430iX (2024)

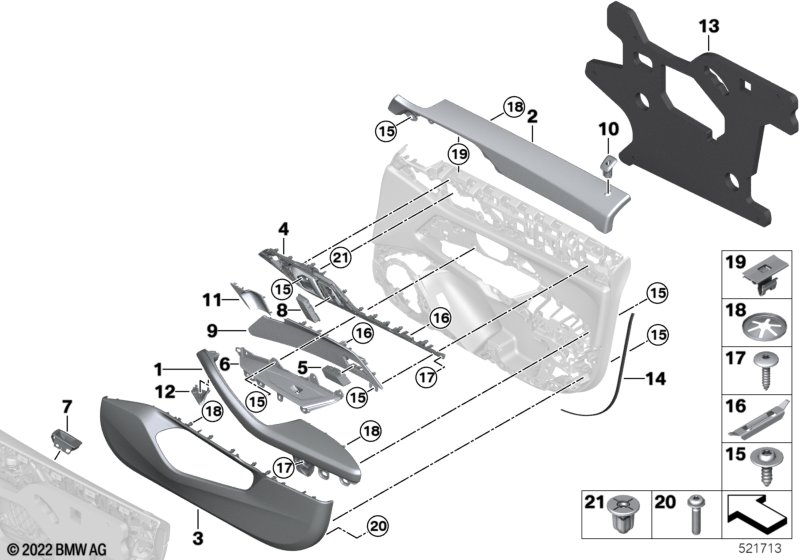

This Surface-mounted parts, door panel, front technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Vernasca/mocca decor.stitching |
MAMU=Yes |
|||||||||
| 01 | Armrest, door, front left | MOKKA | 1 | 51415A46BB1 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, door, front right | MOKKA | 1 | 51415A46BB2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 01 | Armrest, door, front left | OYSTER | 1 | 51415A46BB5 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, door, front right | OYSTER | 1 | 51415A46BB6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino tartufo or Individual full leather, tartufo |
VATQ=Yes VBTQ=Yes |
|||||||||
| 01 | Armrest, door, front left | TARTUFO | 1 | 51415A46BD1 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, door, front right | TARTUFO | 1 | 51415A46BD2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Ind.leather extended/Fiona red/black or Individual full leather, Fiona Red/black |
VAHZ=Yes VBHZ=Yes |
|||||||||
| 01 | Armrest, door, front left | FIONAROT | 1 | 51415A46BD5 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, door, front right | FIONAROT | 1 | 51415A46BD6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Tacora red or Leather Vernasca/tacora red dec.stitch. |
KHG7=Yes MAG6=Yes |
|||||||||
| 01 | Armrest, door, front left | TACORAROT | 1 | 51415A46BB7 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, door, front right | TACORAROT | 1 | 51415A46BB8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac, extended or Leather, Vernasca, cognac, gy stitching |
KHKC=Yes MAPQ=Yes |
|||||||||
| 01 | Armrest, door, front left | COGNAC | 1 | 51415A46BB3 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, door, front right | COGNAC | 1 | 51415A46BB4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alcantara sensatec.black / blue or Leather, Vernasca, black, blue stitching |
KGNL=Yes MANL=Yes |
|||||||||
| 01 | Armrest, door, front left | SCHWARZ | 1 | 51415A46BA5 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, door, front right | SCHWARZ | 1 | 51415A46BA6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino ivory white or Individual full leather, ivory white |
VAEW=Yes VBEW=Yes |
|||||||||
| 01 | Armrest, front left | ELFENBEINWEISS | 1 | 51415A46BD3 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, door, front right | ELFENBEINWEISS | 1 | 51415A46BD4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
KHFR=Yes KHFS=Yes KHFY=Yes |
|||||||||
| 01 | Armrest, door, front left | CABERRABEIGE | 1 | 51415A46BA7 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, door, front right | CANBERRABEIGE | 1 | 51415A46BA8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric sensatec./ black or Sensatec perforated/black or Leather, Vernasca, black, gray stitching |
KFSW=Yes KHSW=Yes MAH7=Yes |
|||||||||
| 01 | Armrest, door, front left | SCHWARZ | 1 | 51415A46BA3 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, door, front right | SCHWARZ | 1 | 51415A46BA4 | NoS | Shop at ECS Tuning | ||||
| 02 | Waistrail, door, left | SCHWARZ | 1 | 51415A46B97 | NoS | Shop at ECS Tuning | ||||
| 02 | Waistrail, door, right | SCHWARZ | 1 | 51415A46B98 | NoS | Shop at ECS Tuning | ||||
| 03 | Door pocket, front left | SCHWARZ | 1 | 51415A46BF3 | NoS | Shop at ECS Tuning | ||||
| 03 | Door pocket, front right | SCHWARZ | 1 | 51415A46BF4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Ambient interior lighting |
S4URA=No |
|||||||||
| 04 | Accent molding, front left | PERLGLANZ CHROM | 1 | 51415A46C03 | NoS | Shop at ECS Tuning | ||||
| 04 | Accent molding, front right | PERLGLANZ CHROM | 1 | 51415A46C04 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Ambient interior lighting |
S4URA=Yes |
|||||||||
| 04 | Accent molding, front left | PERLGLANZ CHROM | 1 | 51415A478A3 | NoS | Shop at ECS Tuning | ||||
| 04 | Accent molding, front right | PERLGLANZ CHROM | 1 | 51415A478A4 | NoS | Shop at ECS Tuning | ||||
| 05 | Trim seat memory switch right | SCHWARZ | 1 | 51415A474A6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation |
S459A=No S4FHA=No |
|||||||||
| 05 | Trim seat memory switch left | SCHWARZ | 1 | 51415A474A5 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Harman/Kardon Surround Sound system and Leather Vernasca/ oyster dec.stitching |
S459A=No S688A=No MAOI=Yes |
|||||||||
| 05 | Trim seat memory switch right | OYSTER | 1 | 51415A50066 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and Harman/Kardon Surround Sound system and Leather Vernasca/ oyster dec.stitching |
S459A=No S4FHA=No S688A=No MAOI=Yes |
|||||||||
| 05 | Trim seat memory switch left | OYSTER | 1 | 51415A50065 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Harman/Kardon Surround Sound system and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
S459A=No S688A=No KHFR=Yes KHFS=Yes KHFY=Yes |
|||||||||
| 05 | Trim seat memory switch right | CANBERRABEIGE | 1 | 51415A474A8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and Harman/Kardon Surround Sound system and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
S459A=No S4FHA=No S688A=No KHFR=Yes KHFS=Yes KHFY=Yes |
|||||||||
| 05 | Trim seat memory switch left | CANBERRABEIGE | 1 | 51415A474A7 | NoS | Shop at ECS Tuning | ||||
| Passenger's side | ||||||||||
| 06 | Trim cover, switch, power window, right | SCHWARZ | 1 | 51415A474D2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior/outside mirror with auto dip Driver's side |
S430A=Yes |
|||||||||
| 06 | Trim cover, switch, power window, left | SCHWARZ | 1 | 51415A474B7 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior/outside mirror with auto dip Driver's side |
S430A=No |
|||||||||
| 06 | Trim cover, switch, power window, left | SCHWARZ | 1 | 51415A474C1 | NoS | Shop at ECS Tuning | ||||
| 07 | Trim, trunk lid lock switch | SCHWARZ | 1 | 51415A47489 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=No |
|||||||||
| 09 | Trim, mid-range speaker left | SCHWARZ | 1 | 51415A47493 | NoS | Shop at ECS Tuning | ||||
| 09 | Trim, mid-range speaker right | SCHWARZ | 1 | 51415A47494 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 09 | Trim, mid-range speaker left | TITAN | 1 | 51415A47481 | NoS | Shop at ECS Tuning | ||||
| 09 | Trim, mid-range speaker right | TITAN | 1 | 51415A47482 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system and Leather Vernasca/ oyster dec.stitching |
S688A=No MAOI=Yes |
|||||||||
| 09 | Trim, mid-range speaker left | OYSTER | 1 | 51415A4F4D3 | NoS | Shop at ECS Tuning | ||||
| 09 | Trim, mid-range speaker right | OYSTER | 1 | 51415A4F4D4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
S688A=No KHFR=Yes KHFS=Yes KHFY=Yes |
|||||||||
| 09 | Trim, mid-range speaker left | CANBERRABEIGE | 1 | 51415A47495 | NoS | Shop at ECS Tuning | ||||
| 09 | Trim, mid-range speaker right | CANBERRABEIGE | 1 | 51415A47496 | NoS | Shop at ECS Tuning | ||||
| 10 | Trim cover, lock button, front left | SCHWARZ | 1 | 51415A47483 | NoS | Shop at ECS Tuning | ||||
| 10 | Trim cover, lock button, front right | SCHWARZ | 1 | 51415A47484 | NoS | Shop at ECS Tuning | ||||
| 11 | Screw cover cap, left | SCHWARZ | 1 | 51415A474D5 | NoS | Shop at ECS Tuning | ||||
| 11 | Screw cover, right | SCHWARZ | 1 | 51415A474D6 | NoS | Shop at ECS Tuning | ||||
| 12 | Screw cover cap, left | SCHWARZ | 1 | 51415A474E1 | NoS | Shop at ECS Tuning | ||||
| 12 | Screw cover, right | SCHWARZ | 1 | 51415A474E2 | NoS | Shop at ECS Tuning | ||||
| 13 | Acoustic insulation felt, front left | 1 | 51415A474E5 | NoS | Shop at ECS Tuning | |||||
| 13 | Acoustic nonwoven front right | 1 | 51415A474E6 | NoS | Shop at ECS Tuning | |||||
| 14 | Keder strip, door trim panel | 2 | 51415A47499 | NoS | Shop at ECS Tuning | |||||
| 15 | Oval-head screw with washer | DELTA PT4X12 | X | 07149200941 | Shop at ECS Tuning | |||||
| 16 | Clamp | 6 | 07147054461 | $0.75 | Shop at ECS Tuning | |||||
| 17 | Fillister head screw | 10 | 07147453046 | Shop at ECS Tuning | ||||||
| 18 | Axial securing clip | 5,8MM | 44 | 07147295776 | Shop at ECS Tuning | |||||
| 19 | Clamp | 0,8MM | 10 | 07145A25549 | Shop at ECS Tuning | |||||
| 20 | Screw | 5X20 | 6 | 07129909320 | Shop at ECS Tuning | |||||
| 21 | Expansion nut | 2 | 07148842197 | Shop at ECS Tuning | ||||||
