Door trim panel for BMW 2 Series G42 230i (2025)

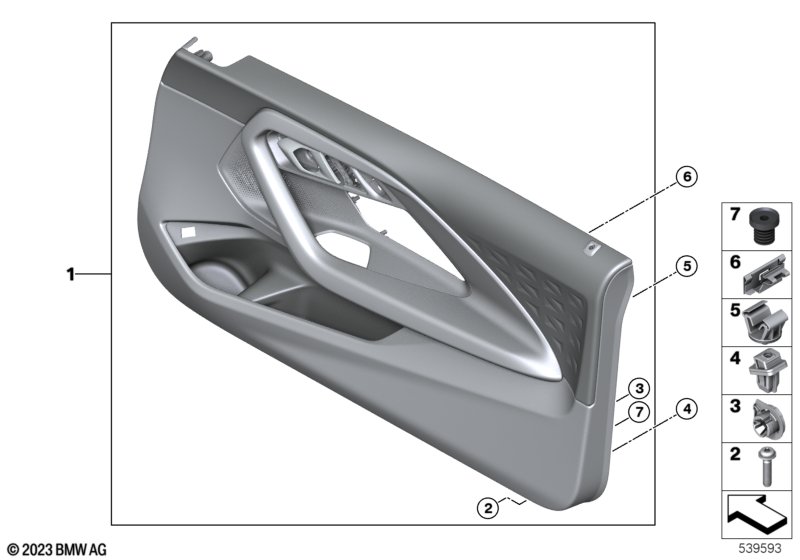

This Door trim panel technical drawing provides a detailed breakdown of the assembly for the 2 Series G42 230i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 01 | Front door trim panel left | OYSTER | 1 | 51415A32143 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | OYSTER | 1 | 51415A32144 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige |
KHFY=Yes |
|||||||||
| 01 | Front door trim panel left | CANBERRABEIGE | 1 | 51415A32135 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | CANBERRABEIGE | 1 | 51415A32136 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alcantara sensatec.black / blue or Leather, Vernasca, black, blue stitching |
KGNL=Yes MANL=Yes |
|||||||||
| 01 | Front door trim panel left | SCHWARZ | 1 | 51415A32145 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 51415A32146 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac or Leather, Vernasca, cognac, gy stitching |
KHRI=Yes MAPQ=Yes |
|||||||||
| 01 | Front door trim panel left | COGNAC | 1 | 51415A32137 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | COGNAC | 1 | 51415A32138 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perf./Tacora red decor strips or Leather Vernasca/tacora red dec.stitch. |
KHG6=Yes MAG6=Yes |
|||||||||
| 01 | Front door trim panel left | TACORAROT | 1 | 51415A32141 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | TACORAROT | 1 | 51415A32142 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather, Vernasca, black, gray stitching or Full leather Merino/black or Full leather Merino, special mod spec |
KHSW=Yes MAH7=Yes MAMM=Yes X3MM=Yes X3XM=Yes |
|||||||||
| 01 | Front door trim panel left | SCHWARZ | 1 | 51415A32133 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 51415A32134 | NoS | Shop at ECS Tuning | ||||
| 02 | Screw | 5X20 | 20 | 07129909320 | Shop at ECS Tuning | |||||
| 03 | Clip | 20 | 07149462118 | Shop at ECS Tuning | ||||||
| 04 | Plug-in nut | 4 | 51252753575 | $2.89 | Shop at ECS Tuning | |||||
| 05 | Clip | 2 | 41009806964 | Shop at ECS Tuning | ||||||
| 06 | Clamp | 0,8MM | 12 | 51418240509 | $0.74 | Shop at ECS Tuning | ||||
| 07 | Stop buffer | 4 | 51437217734 | $2.10 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
