Mounting parts, door trim for BMW 2 Series G42 M240iX (2025)

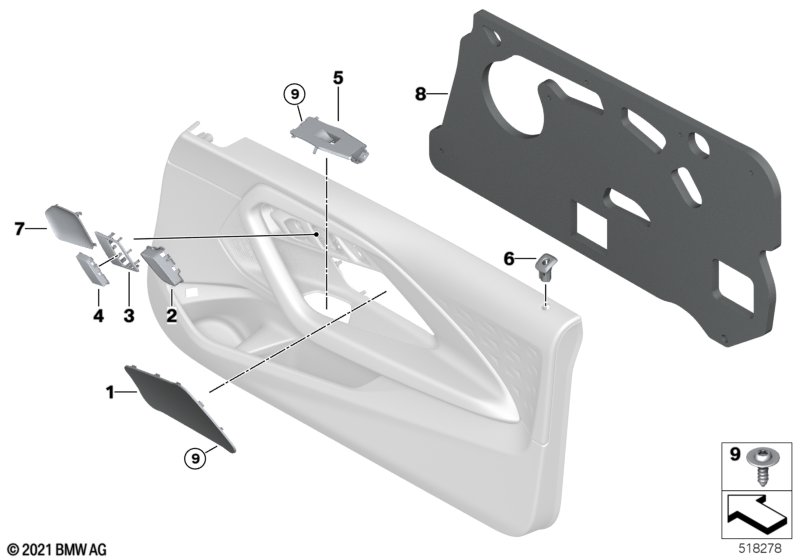

This Mounting parts, door trim technical drawing provides a detailed breakdown of the assembly for the 2 Series G42 M240iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M ACCENT AREAS, ILLUMINATED |
S43AA=No |
|||||||||
| 01 | Decor trim, left | PIANOBLACK | 1 | 51459475413 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M ACCENT AREAS, ILLUMINATED |
S43AA=Yes |
|||||||||
| 01 | Decor trim, left | PIANOBLACK | 1 | 51415A01101 | NoS | Shop at ECS Tuning | ||||
| 01 | Decor trim, right | PIANOBLACK | 1 | 51415A01102 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M ACCENT AREAS, ILLUMINATED and Interior trim, aluminum tetragon |
S43AA=No S4KKA=No |
|||||||||
| 01 | Decor trim, right | PIANOBLACK | 1 | 51459475414 | NoS | Shop at ECS Tuning | ||||
| 02 | Blanking plate, left | SCHWARZ | 1 | 51417944323 | NoS | Shop at ECS Tuning | ||||
| 02 | Blanking plate, right | SCHWARZ | 1 | 51417944324 | NoS | Shop at ECS Tuning | ||||
| 03 | Blanking plate, left | PERLGLANZ CHROM | 1 | 51415A014F3 | NoS | Shop at ECS Tuning | ||||
| 03 | Blanking plate, right | PERLGLANZ CHROM | 1 | 51415A014F4 | NoS | Shop at ECS Tuning | ||||
| 04 | Blanking plate, left | DOORLOCK | 1 | 51417458105 | Shop at ECS Tuning | |||||
| 04 | Blanking plate, right | DOORLOCK | 1 | 51417458106 | Shop at ECS Tuning | |||||
| Passenger's side | ||||||||||
| 05 | Power window switch finisher | SCHWARZ | 1 | 51419474652 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior/outside mirror with auto dip Driver's side |
S430A=Yes |
|||||||||
| 05 | Power window switch finisher | SCHWARZ | 1 | 51419474651 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior/outside mirror with auto dip Driver's side |
S430A=No |
|||||||||
| 05 | Power window switch finisher | SCHWARZ | 1 | 51419474650 | NoS | Shop at ECS Tuning | ||||
| 06 | Cover, locking button left | 1 | 51417447303 | Shop at ECS Tuning | ||||||
| 06 | Cover, locking button right | 1 | 51417447304 | Shop at ECS Tuning | ||||||
| 07 | Screw cover cap, left | SCHWARZ | 1 | 51419474635 | NoS | Shop at ECS Tuning | ||||
| 07 | Screw cover, right | SCHWARZ | 1 | 51419474636 | NoS | Shop at ECS Tuning | ||||
| 08 | Acoustic insulation felt, front left | 1 | 51419474637 | NoS | Shop at ECS Tuning | |||||
| 08 | Acoustic nonwoven front right | 1 | 51419474638 | NoS | Shop at ECS Tuning | |||||
| 09 | Oval-head screw with washer | DELTA PT4X12 | 12 | 07149200941 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
