M cover for rocker panel / wheel arch for BMW 2 Series U06 Active Tourer 220i (2025)

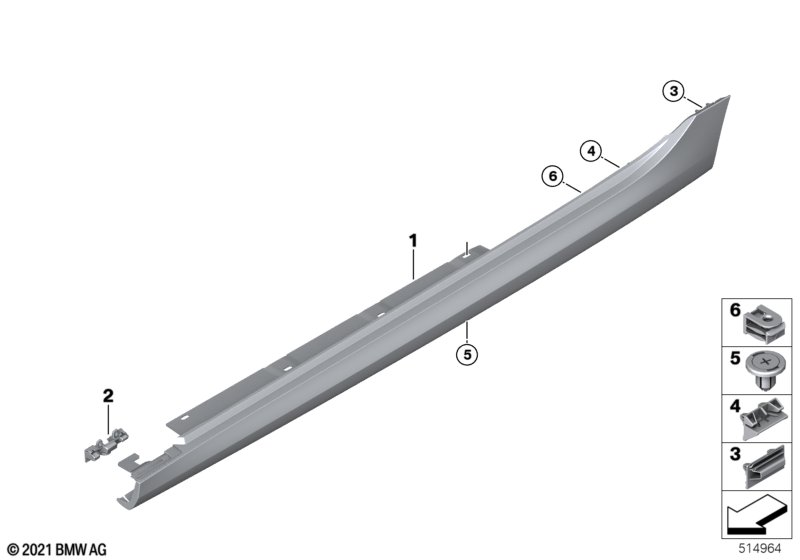

This M cover for rocker panel / wheel arch technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
||||||||
| 01 | Rocker panel trim, primed, left | M | 1 | 51775A360B7 | Shop at ECS Tuning | |||||
| 01 | Rocker panel trim, primed, right | M | 1 | 51775A360B8 | Shop at ECS Tuning | |||||
| 02 | Mount strip, rocker panel, fr. left | 1 | 51778739117 | Shop at ECS Tuning | ||||||
| 02 | Mount strip, rocker panel, fr. right | 1 | 51778739118 | Shop at ECS Tuning | ||||||
| 03 | Door sill clip | REAR | 2 | 51778739121 | Shop at ECS Tuning | |||||
| 04 | Door sill clip | DOWN | 8 | 51778739119 | Shop at ECS Tuning | |||||
| 05 | Expanding rivet | 8 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 06 | C-clip for plastic nut | TS5 | 4 | 07147311312 | Shop at ECS Tuning | |||||
