Exterior trim / grill for BMW 2 Series F22 220i (2016)

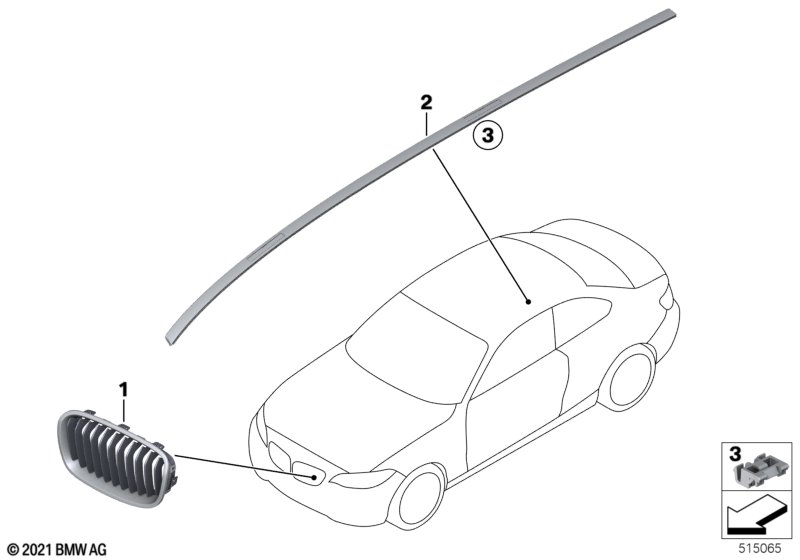

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Black radiator grill, see M Performance |
|||||||||
| For vehicles with Luxury Line |
P7S2A=Yes |
|||||||||
| 01 | Grille, front, left | LUXURY | 1 | 51137403873 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line Ornamental grille 5A3D007 has to be ordered if ornamental grille 7403873 is no longer available. Sometimes ornamental grille 5A3D008 also has to be ordered for visual reasons. |
P7S2A=Yes |
|||||||||
| 01 | Grille, front, left | LUXURY | 1 | 51115A3D007 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Grille, front, right | LUXURY | 1 | 51115A3D008 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line Ornamental grille 5A3D008 has to be ordered if ornamental grille 7403874 is no longer available. Sometimes ornamental grille 5A3D007 also has to be ordered for visual reasons. |
P7S2A=Yes |
|||||||||
| 01 | Grille, front, right | LUXURY | 1 | 51115A3D008 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Grille, front, left | LUXURY | 1 | 51115A3D007 | Shop at ECS Tuning | |||||
| For vehicles with Modern Line |
P7S1A=Yes |
|||||||||
| 01 | Grille, front, left | MODERN | 1 | 51137295525 | Shop at ECS Tuning | |||||
| 01 | Grille, front, right | MODERN | 1 | 51137295526 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line or M Aerodynamics package |
P7ACA=Yes S715A=Yes |
|||||||||
| 01 | Grille, front, left | SPORT | 1 | 51135A3D003 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and M Aerodynamics package |
P7ACA=Yes S715A=Yes |
|||||||||
| 01 | Grille, front, right | SPORT | 1 | 51135A3D004 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and M Aerodynamics package |
P7ACA=Yes S715A=No |
|||||||||
| 01 | Grille, front, right | SPORT | 1 | 51135A3D004 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and M Aerodynamics package |
P7ACA=No S715A=Yes |
|||||||||
| 01 | Grille, front, right | SPORT | 1 | 51135A3D004 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modern Line and Luxury Line and M Aerodynamics package |
P7ACA=No P7S1A=No P7S2A=No S715A=No |
|||||||||
| 01 | Grille, front, left | BASIS | 1 | 51137295521 | Shop at ECS Tuning | |||||
| 01 | Grille, front, right | BASIS | 1 | 51137295522 | Shop at ECS Tuning | |||||
| 02 | Roof molding prime-coated left | 1 | 51137341749 | Shop at ECS Tuning | ||||||
| 02 | Roof molding prime-coated right | 1 | 51137341750 | Shop at ECS Tuning | ||||||
| 03 | Clip | 16 | 51137291271 | Shop at ECS Tuning | ||||||
