Exterior trim / grill for BMW 5 Series F11 LCI 520i (2017)

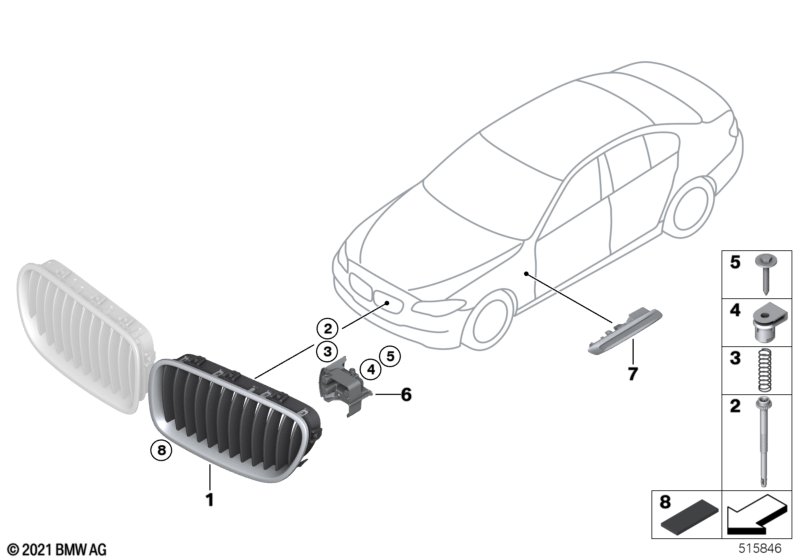

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Black radiator grill, see M Performance |
|||||||||
| For vehicles with Night Vision with human recognition |
S6UKA=Yes |
|||||||||
| 01 | Grille, front, right | BASIS | 1 | 51137412324 | Shop at ECS Tuning | |||||
| 01 | Grille, front, left | NIVI | 1 | 51137412327 | Shop at ECS Tuning | |||||
| For vehicles with Modern Line and Night Vision with human recognition |
P7S1A=Yes S6UKA=No |
|||||||||
| 01 | Grille, front, left | ALU MATT | 1 | 51137412325 | Shop at ECS Tuning | |||||
| 01 | Grille, front, right | ALU MATT | 1 | 51137412326 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line and Night Vision with human recognition |
P7S2A=Yes S6UKA=No |
|||||||||
| 01 | Grille, front, left | BASIS | 1 | 51137412323 | Shop at ECS Tuning | |||||
| 01 | Grille, front, right | BASIS | 1 | 51137412324 | Shop at ECS Tuning | |||||
| For vehicles with Modern Line and Luxury Line and Night Vision with human recognition |
P7S1A=No P7S2A=No S6UKA=No |
|||||||||
| 01 | Grille, front, left | BASIS | 1 | 51137412323 | Shop at ECS Tuning | |||||
| 01 | Grille, front, right | BASIS | 1 | 51137412324 | Shop at ECS Tuning | |||||
| For vehicles with Night Vision with human recognition |
S6UKA=Yes |
|||||||||
| 02 | Adjusting screw | NIVI | 1 | 07147220824 | $8.87 | Shop at ECS Tuning | ||||
| 03 | Compression spring | NIVI | 1 | 07147222655 | Shop at ECS Tuning | |||||
| 04 | Plastic nut | 1 | 07147212877 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | TS5X35 D=18 | 1 | 07147055085 | Shop at ECS Tuning | |||||
| 06 | Support | 1 | 51137336475 | Shop at ECS Tuning | ||||||
| For vehicles with Park Assistent |
S5DPA=Yes |
|||||||||
| 07 | Finisher, side panel, front left | 1 | 51137336647 | Shop at ECS Tuning | ||||||
| 07 | Finisher, side panel, front right | 1 | 51137336648 | Shop at ECS Tuning | ||||||
| For vehicles with Park Assistent |
S5DPA=No |
|||||||||
| 07 | Finisher, side panel, front left | 1 | 51137336645 | Shop at ECS Tuning | ||||||
| 07 | Finisher, side panel, front right | 1 | 51137336646 | Shop at ECS Tuning | ||||||
| 08 | Cellular material pad | 1 | 51134819903 | Shop at ECS Tuning | ||||||
