Trim and seals for door, front for BMW 4 Series G26 Gran Coupé 430iX (2024)

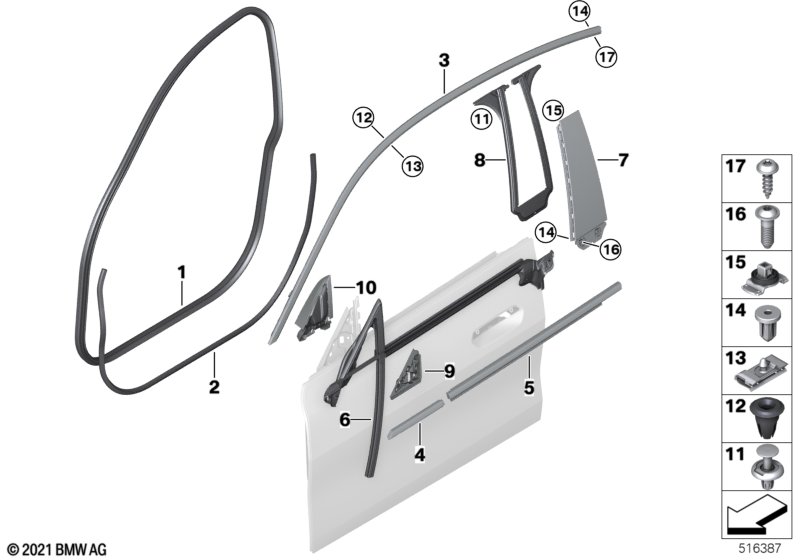

This Trim and seals for door, front technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Edge protection, door, front | 2 | 51727482946 | Shop at ECS Tuning | ||||||
| 02 | Door weatherstrip | 2 | 51765A400A9 | Shop at ECS Tuning | ||||||
| 02 | Door weatherstrip | 2 | 51727390750 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of templates, door, front | 1 | 01295A400A7 | Shop at ECS Tuning | ||||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 03 | Finisher, side frame left | SCHWARZ | 1 | 11/2021 | 51335A5C0B1 | Shop at ECS Tuning | ||||
| 03 | Finisher, side frame right | SCHWARZ | 1 | 11/2021 | 51335A5C0B2 | Shop at ECS Tuning | ||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 03 | Finisher, side frame left | ALU SATINIERT | 1 | 51337482991 | Shop at ECS Tuning | |||||
| 03 | Finisher, side frame right | ALU SATINIERT | 1 | 51337482992 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=No |
|||||||||
| 03 | Finisher, side frame left | 1 | 51337482985 | Shop at ECS Tuning | ||||||
| 03 | Finisher, side frame right | 1 | 51337482986 | Shop at ECS Tuning | ||||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 04 | Shaft cover, mirror, outer left | SCHWARZ | 1 | 11/2021 | 51335A5C0C1 | Shop at ECS Tuning | ||||
| 04 | Shaft cover, mirror, outer right | SCHWARZ | 1 | 11/2021 | 51335A5C0C2 | Shop at ECS Tuning | ||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 04 | Shaft cover, mirror, outer left | ALU SATINIERT | 1 | 51337482983 | Shop at ECS Tuning | |||||
| 04 | Shaft cover, mirror, outer right | ALU SATINIERT | 1 | 51337482984 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=No |
|||||||||
| 04 | Shaft cover, mirror, outer left | 1 | 51337482977 | Shop at ECS Tuning | ||||||
| 04 | Shaft cover, mirror, outer right | 1 | 51337482978 | Shop at ECS Tuning | ||||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 05 | Shaft cover outer front door left | SCHWARZ | 1 | 11/2021 | 51335A5C0B7 | Shop at ECS Tuning | ||||
| 05 | Shaft cover outer front door right | SCHWARZ | 1 | 11/2021 | 51335A5C0B8 | Shop at ECS Tuning | ||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 05 | Shaft cover outer front door left | ALU SATINIERT | 1 | 51337482965 | Shop at ECS Tuning | |||||
| 05 | Shaft cover outer front door right | ALU SATINIERT | 1 | 51337482966 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=No |
|||||||||
| 05 | Shaft cover outer front door left | 1 | 51337482959 | Shop at ECS Tuning | ||||||
| 05 | Shaft cover outer front door right | 1 | 51337482960 | Shop at ECS Tuning | ||||||
| 06 | Channel sealing,inside,door, front left | 1 | 51337482949 | Shop at ECS Tuning | ||||||
| 06 | Channel sealing,inside,door, front right | 1 | 51337482950 | Shop at ECS Tuning | ||||||
| 07 | Cover column B left | 1 | 51137483005 | Shop at ECS Tuning | ||||||
| 07 | Cover column B right | 1 | 51137483006 | Shop at ECS Tuning | ||||||
| 08 | Seal B-pillar trim panel left | 1 | 51137482953 | Shop at ECS Tuning | ||||||
| 08 | Seal B-pillar trim panel right | 1 | 51137482954 | Shop at ECS Tuning | ||||||
| 09 | Seal, outer left mirror triangle | 1 | 51337499197 | Shop at ECS Tuning | ||||||
| 09 | Seal, outer right mirror triangle | 1 | 51337499198 | Shop at ECS Tuning | ||||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 10 | Cover, mirror baseplate, inner left | HARMAN / KARDON | 1 | 51335A3F211 | Shop at ECS Tuning | |||||
| 10 | Cover, mirror baseplate, inner right | HARMAN / KARDON | 1 | 51335A3F212 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 10 | Cover, mirror baseplate, inner left | HIFI | 1 | 51335A3F207 | Shop at ECS Tuning | |||||
| 10 | Cover, mirror baseplate, inner right | HIFI | 1 | 51335A3F208 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system |
S676A=No S688A=No |
|||||||||
| 10 | Cover, mirror baseplate, inner left | 1 | 51337945903 | Shop at ECS Tuning | ||||||
| 10 | Cover, mirror baseplate, inner right | 1 | 51337945904 | Shop at ECS Tuning | ||||||
| 11 | Expanding rivet | 2 | 07147401727 | Shop at ECS Tuning | ||||||
| 12 | Grommet | 22 | 51318150943 | $0.27 | Shop at ECS Tuning | |||||
| 13 | Clip strip roof frame | 22 | 51765A71150 | Shop at ECS Tuning | ||||||
| 14 | Plug-in nut | 0,8MM | 6 | 51416989691 | $0.77 | Shop at ECS Tuning | ||||
| 15 | Column B cover bracket | 2 | 51337464164 | Shop at ECS Tuning | ||||||
| 16 | Torx-bolt for plastic material | TS5X20 | 4 | 07119907480 | Shop at ECS Tuning | |||||
| 17 | Fillister head screw | TS 5X16 | 2 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
