Locking system, door, front for BMW 4 Series G26 Gran Coupé M440i (2024)

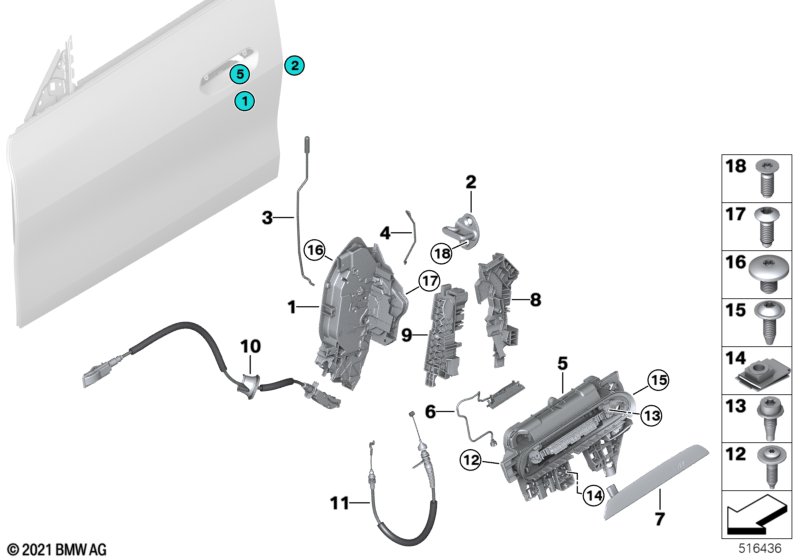

This Locking system, door, front technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé M440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | System latch, left | LL | 1 | 51217445041 | Shop at ECS Tuning | |||||
| 01 | System latch, right | LL | 1 | 51217445044 | Shop at ECS Tuning | |||||
| 02 | Striker without base | 2 | 51217446788 | Shop at ECS Tuning | ||||||
| 03 | Operating rod, door front left | 1 | 51217955183 | Shop at ECS Tuning | ||||||
| 03 | Operating rod, door front right | 1 | 51217955184 | Shop at ECS Tuning | ||||||
| 04 | Connection rod | LL | 1 | 51217955254 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 05 | Outside door handle support right | 1 | 11/2022 | 51215A68EF4 | Shop at ECS Tuning | |||||
| 05 | Outside door handle support left | 1 | 11/2022 | 51215A68EF5 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Ambient interior lighting |
S322A=No S4URA=No |
|||||||||
| 05 | Outside door handle support left | 1 | 11/2022 | 51215A68EE7 | Shop at ECS Tuning | |||||
| 05 | Outside door handle support right | 1 | 11/2022 | 51215A68EF2 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Ambient interior lighting |
S322A=No S4URA=Yes |
|||||||||
| 05 | Outside door handle support left | 1 | 11/2022 | 51215A68EF7 | Shop at ECS Tuning | |||||
| 05 | Outside door handle support right | 1 | 11/2022 | 51215A68F02 | Shop at ECS Tuning | |||||
| 06 | Lighting module external door handle | 2 | 51215A260B6 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 07 | Trim external door handle primed right | 1 | 11/2022 | 03/2025 | 51215A69052 | Shop at ECS Tuning | ||||
| 07 | Trim external door handle primed left | 1 | 11/2022 | 03/2025 | 51215A69057 | Shop at ECS Tuning | ||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 07 | Trim external door handle primed | 2 | 11/2022 | 51215A68ED9 | Shop at ECS Tuning | |||||
| 08 | Adapter outs.door handle support left | 1 | 51215A29AA1 | Shop at ECS Tuning | ||||||
| 09 | Adapter for support member, front left | 1 | 51215A29AD3 | Shop at ECS Tuning | ||||||
| 10 | Bowden cable, door opener, front | 2 | 51217955157 | Shop at ECS Tuning | ||||||
| 11 | Bowd.cable,outside door handle front | 2 | 51217955153 | Shop at ECS Tuning | ||||||
| 12 | Screw, outside door handle support | FAHRERSEITE | 1 | 51215A448C0 | Shop at ECS Tuning | |||||
| 12 | Screw, outside door handle support | 1 | 51215A448C9 | Shop at ECS Tuning | ||||||
| 13 | ISA screw | M4X10-PF-U1-8.8 | 4 | 07129909896 | Shop at ECS Tuning | |||||
| 14 | C-clip nut | 2 | 07147576706 | Shop at ECS Tuning | ||||||
| 15 | Socket head cap screw with shoulder | M5 | 1 | 07147154925 | $0.53 | Shop at ECS Tuning | ||||
| 16 | Torx-bolt with washer | ISA M8X12 | 2 | 07149149652 | $0.45 | Shop at ECS Tuning | ||||
| 17 | Csk.fillister head srew | 4 | 07147490260 | Shop at ECS Tuning | ||||||
| 18 | Countersunk head screw | 4 | 51219463885 | Shop at ECS Tuning | ||||||
