Closing system, door, rear for BMW 4 Series G26 Gran Coupé M440i (2024)

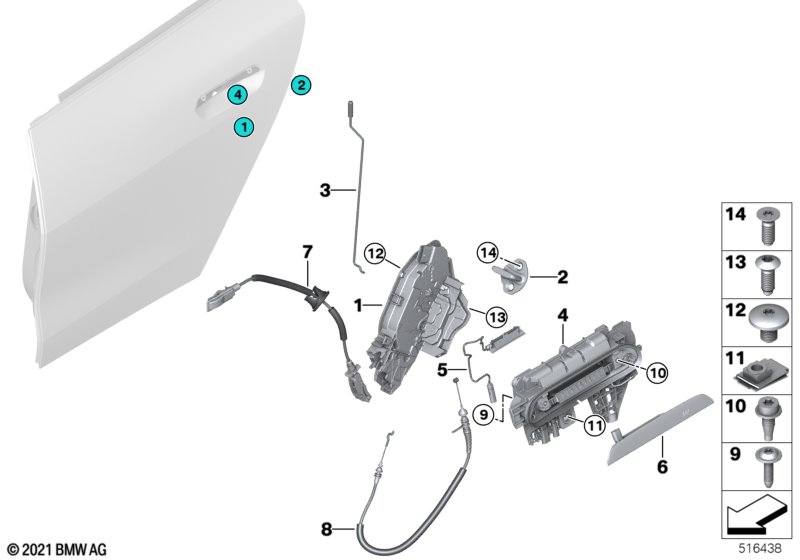

This Closing system, door, rear technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé M440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lock, rear left | US | 1 | 51227445047 | Shop at ECS Tuning | |||||
| 01 | Door lock, rear right | US | 1 | 51227445048 | Shop at ECS Tuning | |||||
| 02 | Striker without base | 2 | 51217446788 | Shop at ECS Tuning | ||||||
| 03 | Operating rod, door rear left | 1 | 51227955173 | Shop at ECS Tuning | ||||||
| 03 | Operating rod, door rear right | 1 | 51227955174 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 04 | Outside door handle support left | 1 | 11/2022 | 51215A68EF3 | Shop at ECS Tuning | |||||
| 04 | Outside door handle support right | 1 | 11/2022 | 51215A68EF4 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Ambient interior lighting |
S322A=No S4URA=No |
|||||||||
| 04 | Outside door handle support left | 1 | 11/2022 | 51215A68EF1 | Shop at ECS Tuning | |||||
| 04 | Outside door handle support right | 1 | 11/2022 | 51215A68EF2 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Ambient interior lighting |
S322A=No S4URA=Yes |
|||||||||
| 04 | Outside door handle support left | 1 | 11/2022 | 51215A68F01 | Shop at ECS Tuning | |||||
| 04 | Outside door handle support right | 1 | 11/2022 | 51215A68F02 | Shop at ECS Tuning | |||||
| 05 | Lighting module external door handle | 2 | 51215A260B6 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 06 | Trim external door handle primed | BASIS | 2 | 11/2022 | 51215A68EC9 | Shop at ECS Tuning | ||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 06 | Trim external door handle primed left | 1 | 11/2022 | 51215A69045 | Shop at ECS Tuning | |||||
| 06 | Trim external door handle primed right | 1 | 11/2022 | 51215A69046 | Shop at ECS Tuning | |||||
| 07 | Rear door handle bowden cable | 2 | 51227955211 | Shop at ECS Tuning | ||||||
| 08 | Bowden cable, outside door handle, rear | 2 | 51227955149 | Shop at ECS Tuning | ||||||
| 09 | Screw, outside door handle support | 2 | 51215A448C9 | Shop at ECS Tuning | ||||||
| 10 | ISA screw | M4X10-PF-U1-8.8 | 4 | 07129909896 | Shop at ECS Tuning | |||||
| 11 | C-clip nut | 2 | 07147576706 | Shop at ECS Tuning | ||||||
| 12 | Torx-bolt with washer | ISA M8X12 | 2 | 07149149652 | $0.45 | Shop at ECS Tuning | ||||
| 13 | Csk.fillister head srew | 4 | 07147490260 | Shop at ECS Tuning | ||||||
| 14 | Countersunk head screw | 4 | 51219463885 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G26 Gran Coupé M440i Closing system, door, rear?
- This technical diagram illustrates the Closing system, door, rear within the Vehicle trim group for the 4 Series G26 Gran Coupé M440i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Door lock, rear left (Part #51227445047).
- Which models use the hardware listed in this Closing system, door, rear?
- The hardware and components featured in the Closing system, door, rear are specific to the 4 Series G26 Gran Coupé M440i produced during 2024. These technical specifications ensure that parts like the Door lock, rear left (51227445047) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Closing system, door, rear assembly?
- Each item in the Closing system, door, rear corresponds to the numbered list below the illustration. For the 4 Series G26 Gran Coupé M440i, you can identify the Door lock, rear left by locating its position on the schematic, which then links to the official BMW part number 51227445047 for the Vehicle trim section.
