Trunk lid trim panel for BMW 4 Series G26 Gran Coupé 430i (2024)

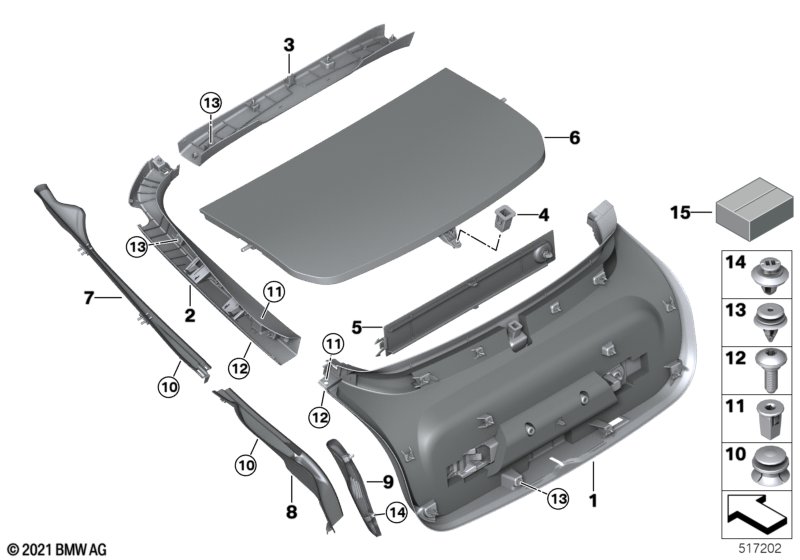

This Trunk lid trim panel technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid trim panel | 1 | 51497487589 | Shop at ECS Tuning | ||||||
| 02 | Left trunk lid panel trim | 1 | 51497487587 | Shop at ECS Tuning | ||||||
| 02 | Right panel tail lid | 1 | 51497487588 | Shop at ECS Tuning | ||||||
| 03 | Upper trunk lid trim panel | 1 | 51497487586 | Shop at ECS Tuning | ||||||
| 04 | Support for package shelf | 1 | 51495A2FC99 | Shop at ECS Tuning | ||||||
| 05 | Cover for warning triangle | 1 | 51495A2FCA0 | NoS | Shop at ECS Tuning | |||||
| 06 | Rear window shelf | 1 | 51498081723 | Shop at ECS Tuning | ||||||
| In the event of upper water channel trim left/right (9448319/-320) replacement, gap seal, rear window left/right (7487561/-562) must also be replaced. |
||||||||||
| 07 | Trim, drip rail, upper left | 1 | 51499448319 | Shop at ECS Tuning | ||||||
| 07 | Trim cover, drip rail, upper right | 1 | 51499448320 | Shop at ECS Tuning | ||||||
| 08 | Cover, drip rail, lower left | 1 | 51497487593 | Shop at ECS Tuning | ||||||
| 08 | Cover, drip rail, lower right | 1 | 51497487594 | Shop at ECS Tuning | ||||||
| Trim tail light is supplied, including 7065607. |
||||||||||
| 09 | Tail light finisher, trunk lid, left | 1 | 51138739613 | Shop at ECS Tuning | ||||||
| 09 | Tail light finisher, trunk lid, right | 1 | 51138739614 | Shop at ECS Tuning | ||||||
| 10 | Clip ball attachment | 4 | 07145A445B0 | Shop at ECS Tuning | ||||||
| 11 | Expanding nut | L=15MM, DMAX=12 | 6 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Fillister head screw with collar | 6 | 07147494341 | Shop at ECS Tuning | ||||||
| 13 | Clip Natur | 24 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 14 | Clip with seal ring | 4 | 51137065607 | $0.74 | Shop at ECS Tuning | |||||
| Kit includes 4x attachment slider | ||||||||||
| 15 | Kit attachment slider | 1 | 51495A3B5A9 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G26 Gran Coupé 430i Trunk lid trim panel?
- This technical diagram illustrates the Trunk lid trim panel within the Vehicle trim group for the 4 Series G26 Gran Coupé 430i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Trunk lid trim panel (Part #51497487589).
- Which models use the hardware listed in this Trunk lid trim panel?
- The hardware and components featured in the Trunk lid trim panel are specific to the 4 Series G26 Gran Coupé 430i produced during 2024. These technical specifications ensure that parts like the Trunk lid trim panel (51497487589) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk lid trim panel assembly?
- Each item in the Trunk lid trim panel corresponds to the numbered list below the illustration. For the 4 Series G26 Gran Coupé 430i, you can identify the Trunk lid trim panel by locating its position on the schematic, which then links to the official BMW part number 51497487589 for the Vehicle trim section.
