Trim panel, trunk floor for BMW 4 Series G26 Gran Coupé 430dX (2023)

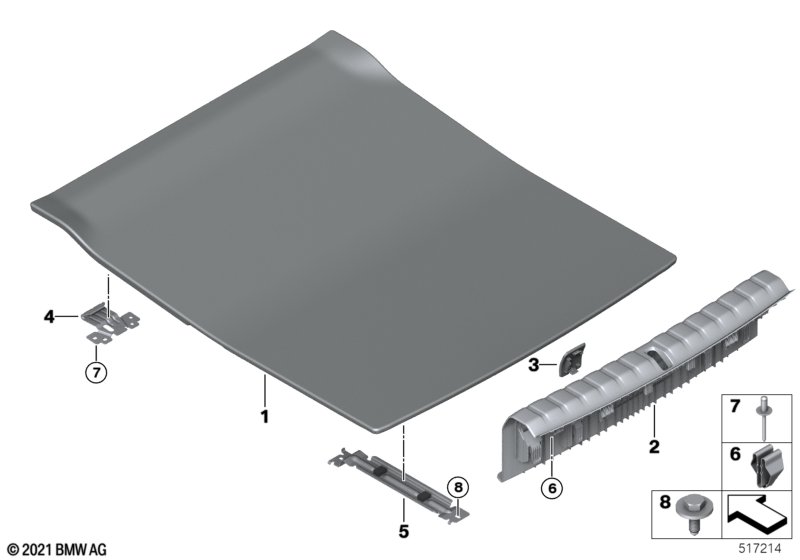

This Trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor panel insert, trunk, rear | ANTHRAZIT | 1 | 51479871079 | NoS | Shop at ECS Tuning | ||||
| 02 | Loading sill cover | 1 | 51479871069 | NoS | Shop at ECS Tuning | |||||
| 03 | Left sill cover lid | 1 | 51475A11EB1 | NoS | Shop at ECS Tuning | |||||
| 03 | Right sill cover lid | 1 | 51475A11EB2 | NoS | Shop at ECS Tuning | |||||
| 04 | Brace | 2 | 51487949356 | NoS | Shop at ECS Tuning | |||||
| 05 | Support, luggage compartment floor panel | 1 | 51476994489 | Shop at ECS Tuning | ||||||
| 06 | Clamp | 6 | 07147321144 | Shop at ECS Tuning | ||||||
| 07 | Blind rivet | 4 | 07147265827 | Shop at ECS Tuning | ||||||
| 08 | Self-locking hex bolt | M6 | 2 | 07146961201 | $1.17 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
