Right TRUNK TRIM for BMW 4 Series G26 Gran Coupé M440i (2024)

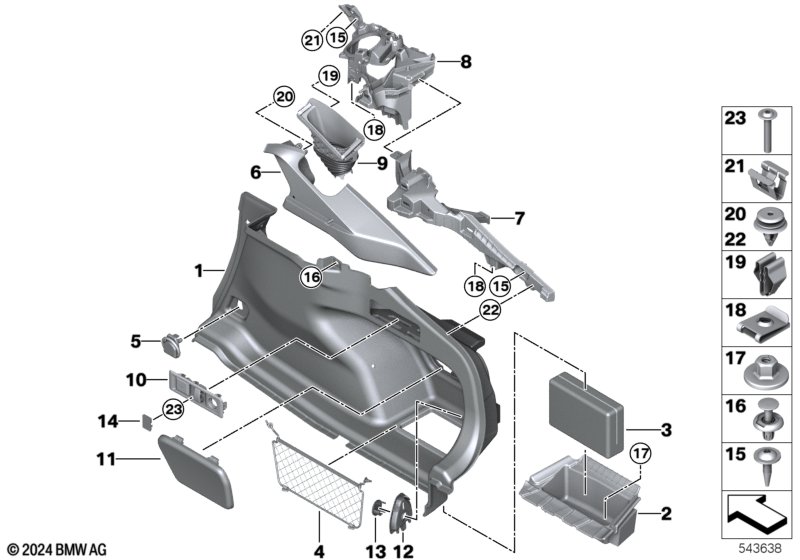

This Right TRUNK TRIM technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé M440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Right TRUNK TRIM | US | 1 | 51475A4AD34 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package |
S493A=No |
|||||||||
| 01 | Right TRUNK TRIM | US | 1 | 51475A4AD32 | NoS | Shop at ECS Tuning | ||||
| 02 | Storage comp luggage comp.trim pan.ri. | 1 | 51477942944 | NoS | Shop at ECS Tuning | |||||
| 03 | First-aid kit, case, black | DIN 13164 | 1 | 71107263439 | Shop at ECS Tuning | |||||
| 04 | Storage net right | 1 | 51475A3B0F6 | NoS | Shop at ECS Tuning | |||||
| 05 | Tie-down ring | 2 | 51477438824 | Shop at ECS Tuning | ||||||
| 06 | Trim, waistrail, luggage bay, right | SCHWARZ | 1 | 51478099734 | NoS | Shop at ECS Tuning | ||||
| 07 | Support for shoulder, rear right | 1 | 51477489864 | NoS | Shop at ECS Tuning | |||||
| 08 | Support, shoulder, front right | 1 | 51477489862 | NoS | Shop at ECS Tuning | |||||
| 09 | Shock tower, right | SCHWARZ | 1 | 51478099736 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 10 | Trim control unit cargo area | 1 | 51479871068 | Shop at ECS Tuning | ||||||
| 11 | Cover, power distribution box | 1 | 51475A3B100 | NoS | Shop at ECS Tuning | |||||
| 12 | Cover emergency unlocking | 1 | 51477381926 | Shop at ECS Tuning | ||||||
| For vehicles with Trailer coupling |
S3ACA=No |
|||||||||
| 13 | Trim cover for button | 1 | 51477396474 | Shop at ECS Tuning | ||||||
| For vehicles with Trailer coupling and Storage compartment package |
S3ACA=Yes S493A=Yes |
|||||||||
| 14 | Screw cover | SCHWARZ | 1 | 51477952249 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling and Storage compartment package |
S3ACA=Yes S493A=No |
|||||||||
| 14 | Screw cover | SCHWARZ | 1 | 51477952249 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling and Storage compartment package |
S3ACA=No S493A=Yes |
|||||||||
| 14 | Screw cover | SCHWARZ | 1 | 51477952249 | NoS | Shop at ECS Tuning | ||||
| 15 | Fillister head screw with collar | ISA M5X19MM | 9 | 07146964282 | Shop at ECS Tuning | |||||
| 16 | Expanding rivet | 2 | 07147401727 | Shop at ECS Tuning | ||||||
| 17 | Plastic capnut with washer | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 18 | Body nut | ST 4,8-8-ZNS | 2 | 07129904227 | $0.27 | Shop at ECS Tuning | ||||
| 19 | Clamp | 3 | 07147468646 | Shop at ECS Tuning | ||||||
| 20 | Clip Natur | 1 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 21 | Clamp | 2 | 07149172157 | $0.57 | Shop at ECS Tuning | |||||
| 22 | Clip, yellow | 1 | 51417007479 | $0.61 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling and Storage compartment package |
S3ACA=Yes S493A=Yes |
|||||||||
| 23 | Torx-bolt for plastic material | ISA L=30MM | 1 | 07149160660 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with Trailer coupling and Storage compartment package |
S3ACA=Yes S493A=No |
|||||||||
| 23 | Torx-bolt for plastic material | ISA L=30MM | 1 | 07149160660 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with Trailer coupling and Storage compartment package |
S3ACA=No S493A=Yes |
|||||||||
| 23 | Torx-bolt for plastic material | ISA L=30MM | 1 | 07149160660 | $0.36 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
