Trim and seals for door, front for BMW 2 Series U06 Active Tourer 218d (2025)

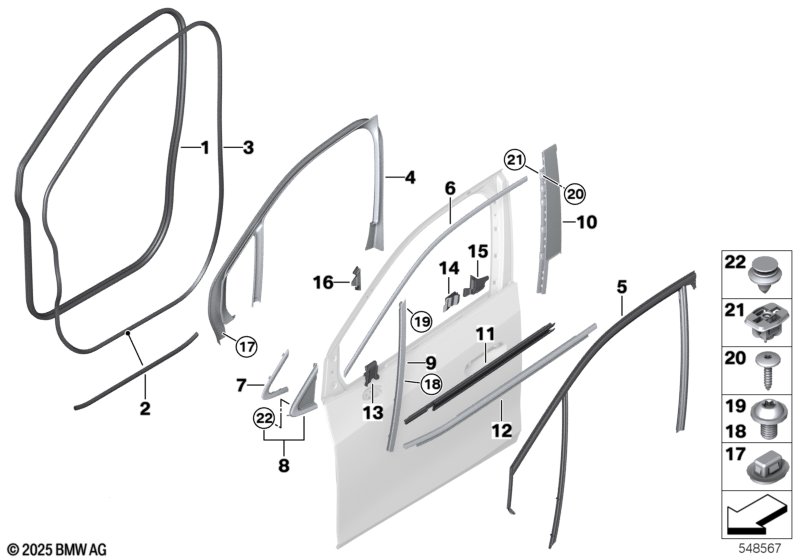

This Trim and seals for door, front technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Edge protection, door, front | 2 | 51729851716 | Shop at ECS Tuning | ||||||
| Note: Observe new repair instructions 5171003! |
||||||||||
| 02 | Partial replacement, door weatherstrip | 2 | 51765B68FC5 | Shop at ECS Tuning | ||||||
| 03 | Door weatherstrip | 2 | 51765A48646 | Shop at ECS Tuning | ||||||
| 03 | Door weatherstrip | 2 | 51727390750 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of templates, door, front | 1 | 01295A48637 | Shop at ECS Tuning | ||||||
| 04 | Cover, window frame, door front left | 1 | 51339490363 | Shop at ECS Tuning | ||||||
| 04 | Cover, window frame, door front right | 1 | 51339490364 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=No |
|||||||||
| 05 | Window guide, left front door | 1 | 51338496267 | Shop at ECS Tuning | ||||||
| 05 | Window guide, right front door | 1 | 51338496268 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=Yes S760A=Yes |
|||||||||
| 05 | Window guide, left front door | 1 | 51338496271 | Shop at ECS Tuning | ||||||
| 05 | Window guide, right front door | 1 | 51338496272 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=Yes S760A=No |
|||||||||
| 05 | Window guide, left front door | 1 | 51338496271 | Shop at ECS Tuning | ||||||
| 05 | Window guide, right front door | 1 | 51338496272 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=Yes |
|||||||||
| 05 | Window guide, left front door | 1 | 51338496271 | Shop at ECS Tuning | ||||||
| 05 | Window guide, right front door | 1 | 51338496272 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 06 | Window frame cover, front left door | ALU SATINIERT | 1 | 51338496275 | Shop at ECS Tuning | |||||
| 06 | Window frame cover, front right door | ALU SATINIERT | 1 | 51338496276 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 06 | Window frame cover, front left door | SHADOWLINE | 1 | 51338496279 | Shop at ECS Tuning | |||||
| 06 | Window frame cover, front right door | SHADOWLINE | 1 | 51338496280 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 07 | Strip, column A left | ALU SATINIERT | 1 | 51138496235 | Shop at ECS Tuning | |||||
| 07 | Strip, column A right | ALU SATINIERT | 1 | 51138496236 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 07 | Strip, column A left | SHADOWLINE | 1 | 51138496239 | Shop at ECS Tuning | |||||
| 07 | Strip, column A right | SHADOWLINE | 1 | 51138496240 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=No |
|||||||||
| 08 | Left column A cover | BASIS | 1 | 51138496231 | Shop at ECS Tuning | |||||
| 08 | Right column A cover | BASIS | 1 | 51138496232 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=Yes S760A=Yes |
|||||||||
| 08 | Left column A cover | 1 | 51139498765 | Shop at ECS Tuning | ||||||
| 08 | Right column A cover | 1 | 51139498766 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=Yes S760A=No |
|||||||||
| 08 | Left column A cover | 1 | 51139498765 | Shop at ECS Tuning | ||||||
| 08 | Right column A cover | 1 | 51139498766 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=Yes |
|||||||||
| 08 | Left column A cover | 1 | 51139498765 | Shop at ECS Tuning | ||||||
| 08 | Right column A cover | 1 | 51139498766 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=No |
|||||||||
| 09 | A-pillar bar front door left | BASIS | 1 | 51338496287 | Shop at ECS Tuning | |||||
| 09 | A-pillar bar front door right | BASIS | 1 | 51338496288 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=Yes S760A=Yes |
|||||||||
| 09 | A-pillar bar front door left | 1 | 51338496291 | Shop at ECS Tuning | ||||||
| 09 | A-pillar bar front door right | 1 | 51338496292 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=Yes S760A=No |
|||||||||
| 09 | A-pillar bar front door left | 1 | 51338496291 | Shop at ECS Tuning | ||||||
| 09 | A-pillar bar front door right | 1 | 51338496292 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=Yes |
|||||||||
| 09 | A-pillar bar front door left | 1 | 51338496291 | Shop at ECS Tuning | ||||||
| 09 | A-pillar bar front door right | 1 | 51338496292 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=No |
|||||||||
| 10 | Cover, column B, door, front left | BASIS | 1 | 51338496311 | Shop at ECS Tuning | |||||
| 10 | B-pillar trim panel right front door | BASIS | 1 | 51338496312 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=Yes S760A=Yes |
|||||||||
| 10 | Cover, column B, door, front left | 1 | 51338496315 | Shop at ECS Tuning | ||||||
| 10 | Cover, column B, door, front right | 1 | 51338496316 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=Yes S760A=No |
|||||||||
| 10 | Cover, column B, door, front left | 1 | 51338496315 | Shop at ECS Tuning | ||||||
| 10 | Cover, column B, door, front right | 1 | 51338496316 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=Yes |
|||||||||
| 10 | Cover, column B, door, front left | 1 | 51338496315 | Shop at ECS Tuning | ||||||
| 10 | Cover, column B, door, front right | 1 | 51338496316 | Shop at ECS Tuning | ||||||
| 11 | Channel sealing,inside,door, front left | 1 | 51338496307 | Shop at ECS Tuning | ||||||
| 11 | Channel sealing,inside,door, front right | 1 | 51338496308 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 12 | Shaft cover outer front door left | ALU SATINIERT | 1 | 51338496299 | Shop at ECS Tuning | |||||
| 12 | Shaft cover outer front door right | ALU SATINIERT | 1 | 51338496300 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 12 | Shaft cover outer front door left | SHADOWLINE | 1 | 51338496303 | Shop at ECS Tuning | |||||
| 12 | Shaft cover outer front door right | SHADOWLINE | 1 | 51338496304 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=No |
|||||||||
| 12 | Shaft cover outer front door left | BASIS | 1 | 51338496295 | Shop at ECS Tuning | |||||
| 12 | Shaft cover outer front door right | BASIS | 1 | 51338496296 | Shop at ECS Tuning | |||||
| 13 | Seal for window guide bottom front left | 1 | 51338496397 | Shop at ECS Tuning | ||||||
| 13 | Seal for window guide bottom front right | 1 | 51338496398 | Shop at ECS Tuning | ||||||
| 14 | Seal B-pillar trim panel front door left | 1 | 51338496365 | Shop at ECS Tuning | ||||||
| 14 | Seal B-pillar trim pan.front door ri. | 1 | 51338496366 | Shop at ECS Tuning | ||||||
| 15 | Seal B-pillar trim panel bot.front left | 1 | 51338496369 | Shop at ECS Tuning | ||||||
| 15 | Seal B-pillar trim panel bot.front right | 1 | 51338496370 | Shop at ECS Tuning | ||||||
| 16 | Seal for window guide top front left | 1 | 51338496401 | Shop at ECS Tuning | ||||||
| 16 | Seal for window guide top front right | 1 | 51338496402 | Shop at ECS Tuning | ||||||
| 17 | Plug-in retainer | 4 | 07147376600 | Shop at ECS Tuning | ||||||
| 18 | Fillister head screw | M4X8 | 6 | 07129909295 | Shop at ECS Tuning | |||||
| 19 | Fillister head screw | 6 | 07149909490 | Shop at ECS Tuning | ||||||
| 20 | Fillister head screw | 8 | 07147453046 | Shop at ECS Tuning | ||||||
| 21 | Clip | 8 | 51337140714 | Shop at ECS Tuning | ||||||
| 22 | Clip | 6 | 51137497365 | Shop at ECS Tuning | ||||||
