Mounting parts, center console for BMW 2 Series U06 Active Tourer 218d (2025)

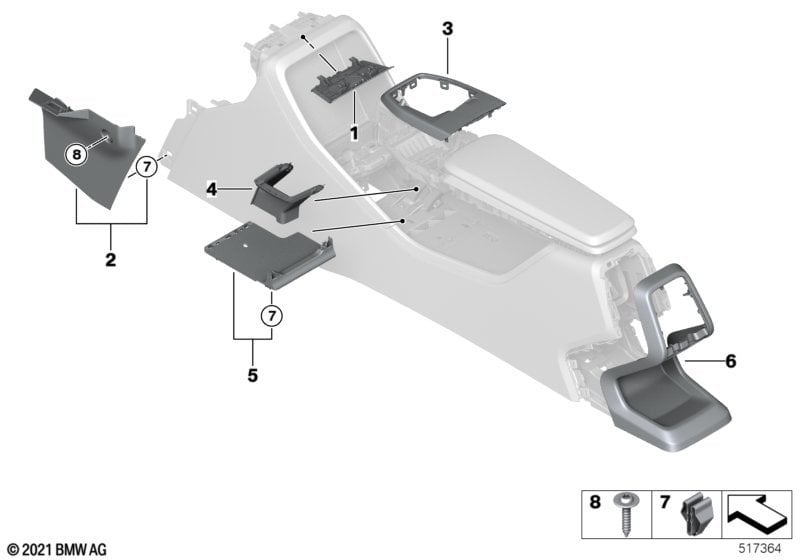

This Mounting parts, center console technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim Miko front top | 1 | 51165A52E30 | NoS | Shop at ECS Tuning | |||||
| 02 | Trim panel, center console, left | SCHWARZ | 1 | 51169479647 | NoS | Shop at ECS Tuning | ||||
| 02 | Trim panel, center console, right | SCHWARZ | 1 | 51169479648 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/oyster or VEGANZA PERFORATED OYSTER or Leather Vernasca/oyster |
KHCX=Yes KUCX=Yes MACX=Yes |
|||||||||
| 02 | Trim panel, center console, left | OYSTER | 1 | 51169479649 | NoS | Shop at ECS Tuning | ||||
| 02 | Trim panel, center console, right | OYSTER | 1 | 51169479650 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Mocha or VEGANZA PERFORATED MOCHA or Leather Vernasca/mocca |
KHMY=Yes KUMY=Yes MAMY=Yes |
|||||||||
| 02 | Trim panel, center console, left | MOKKA | 1 | 51169479651 | NoS | Shop at ECS Tuning | ||||
| 02 | Trim panel, center console, right | MOKKA | 1 | 51169479652 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Decorative trim, alu. with grap accent and Interior trim finishers black high-gloss and FINE WOOD EUCALYPTUS OPEN-CELL and Inter trim strip alumin.Hexacube bright and Interior trim, aluminum mesh effect and Interior trim finishers Al Hexacube dark and Interior mouldings, Alu Shadow, brushed |
S43FA=Yes S4ATA=Yes S4EWA=Yes S4H2A=Yes S4KLA=Yes S4LPA=Yes S737A=Yes |
|||||||||
| 03 | Decor panel for centre console | 1 | 51169473170 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Decorative trim, alu. with grap accent and Interior trim finishers black high-gloss and FINE WOOD EUCALYPTUS OPEN-CELL and Inter trim strip alumin.Hexacube bright and Interior trim, aluminum mesh effect and Interior trim finishers Al Hexacube dark and Interior mouldings, Alu Shadow, brushed |
S43FA=No S4ATA=No S4EWA=No S4H2A=No S4KLA=No S4LPA=No S737A=No |
|||||||||
| 03 | Decor panel for centre console | SCHWARZ | 1 | 51169473167 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim Miko inner | SCHWARZ | 1 | 51169479675 | NoS | Shop at ECS Tuning | ||||
| 05 | Cover center console | 1 | 51169493279 | NoS | Shop at ECS Tuning | |||||
| 06 | Cover centre console, rear | SCHWARZ | 1 | 51168464144 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/oyster or VEGANZA PERFORATED OYSTER or Leather Vernasca/oyster |
KHCX=Yes KUCX=Yes MACX=Yes |
|||||||||
| 06 | Cover centre console, rear | OYSTER | 1 | 51165A21B88 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Mocha or VEGANZA PERFORATED MOCHA or Leather Vernasca/mocca |
KHMY=Yes KUMY=Yes MAMY=Yes |
|||||||||
| 06 | Cover centre console, rear | MOKKA | 1 | 51165A21B89 | NoS | Shop at ECS Tuning | ||||
| 07 | Clamp | 7 | 07147321144 | Shop at ECS Tuning | ||||||
| 08 | Oval-head screw with washer | DELTA PT4X20 | 2 | 07149185673 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 218d Mounting parts, center console?
- This technical diagram illustrates the Mounting parts, center console within the Vehicle trim group for the 2 Series U06 Active Tourer 218d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Trim Miko front top (Part #51165A52E30).
- Which models use the hardware listed in this Mounting parts, center console?
- The hardware and components featured in the Mounting parts, center console are specific to the 2 Series U06 Active Tourer 218d produced during 2025. These technical specifications ensure that parts like the Trim Miko front top (51165A52E30) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mounting parts, center console assembly?
- Each item in the Mounting parts, center console corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 218d, you can identify the Trim Miko front top by locating its position on the schematic, which then links to the official BMW part number 51165A52E30 for the Vehicle trim section.
