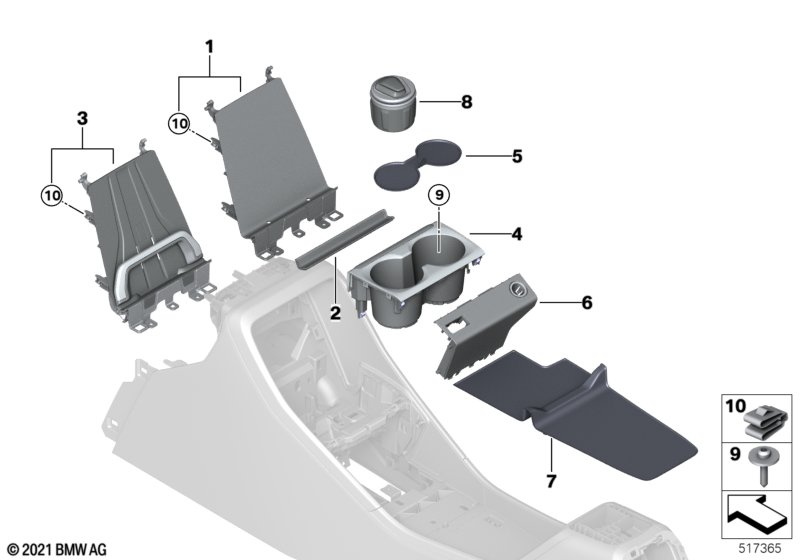

Storage tray, center console for BMW 2 Series U06 Active Tourer 220i (2025)
This Storage tray, center console technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Comfort access and Storage tray for wireless charging |
S322A=No S6NXA=No |
|||||||||
| 01 | Storage compartment trim front | 1 | 51169493273 | Shop at ECS Tuning | ||||||
| 02 | Insert mat storage compt trim front | 1 | 51165A2F3D7 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Storage tray for wireless charging |
S322A=Yes S6NXA=Yes |
|||||||||
| 03 | Storage compartment trim front | 1 | 07/2024 | 51165A22F51 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Storage tray for wireless charging |
S322A=Yes S6NXA=No |
|||||||||
| 03 | Storage compartment trim front | 1 | 07/2024 | 51165A22F51 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Storage tray for wireless charging |
S322A=No S6NXA=Yes |
|||||||||
| 03 | Storage compartment trim front | 1 | 07/2024 | 51165A22F51 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers black high-gloss and FINE WOOD EUCALYPTUS OPEN-CELL and Inter trim strip alumin.Hexacube bright and Interior mouldings, Alu Shadow, brushed |
S4ATA=No S4EWA=No S4H2A=No S737A=No |
|||||||||
| 04 | Cup holder | 1 | 51169493276 | Shop at ECS Tuning | ||||||
| 05 | Rubber insert, cup holder | 1 | 51169472846 | NoS | Shop at ECS Tuning | |||||
| 06 | Cover, cup holder | 1 | 51169890317 | NoS | Shop at ECS Tuning | |||||
| 07 | Insert mat for center console | 1 | 51169496940 | NoS | Shop at ECS Tuning | |||||
| 08 | Ashtray insert for cup holder | 1 | 51166806845 | Shop at ECS Tuning | ||||||
| 09 | Combi. fillister head self-tapping screw | 2 | 07149323312 | NoS | Shop at ECS Tuning | |||||
| 10 | Mounting clip | 4 | 07149418607 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
