Heat insulation for BMW 7 Series G70 740dX (2025)

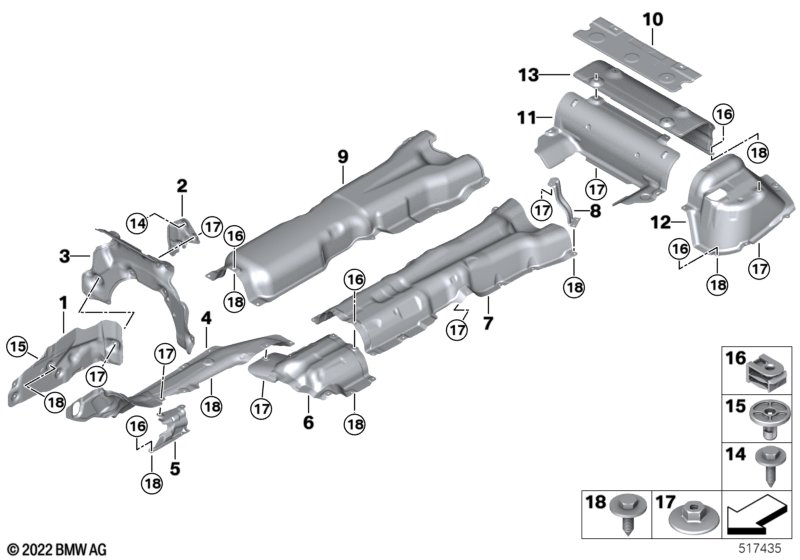

This Heat insulation technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat insulation engine mount | RHD | 1 | 51487377983 | Shop at ECS Tuning | |||||
| 02 | Heat insulation for DPF | 1 | 51487407877 | Shop at ECS Tuning | ||||||
| 04 | Heat insulation, cross front right | 1 | 51487340212 | Shop at ECS Tuning | ||||||
| 05 | Heat insulation, center left | 1 | 51485A015D1 | NoS | Shop at ECS Tuning | |||||
| 05 | Heat insulation, center right | 1 | 51485A015D2 | NoS | Shop at ECS Tuning | |||||
| 06 | Tunnel heat insulator | 1 | 51489498311 | NoS | Shop at ECS Tuning | |||||
| 07 | Fuel tank heat insulation | 1 | 51489498288 | Shop at ECS Tuning | ||||||
| 08 | Holder, heat insulation shield, tank | 2 | 51485A15667 | Shop at ECS Tuning | ||||||
| 10 | Heat insulator floor panel trunk | 1 | 51485A17938 | Shop at ECS Tuning | ||||||
| 11 | Heat shield, rear muffler, front | 1 | 51489449821 | NoS | Shop at ECS Tuning | |||||
| 12 | Heat insulation, rear silencer, right | DIESEL | 1 | 51489498294 | NoS | Shop at ECS Tuning | ||||
| 12 | Heat insulation, rear silencer, left | 1 | 51489498325 | NoS | Shop at ECS Tuning | |||||
| 13 | Heat insulation for rear muffler | 1 | 51489881743 | NoS | Shop at ECS Tuning | |||||
| 14 | Hex bolt | TS5X20 SW8 D=16 | 1 | 07147148437 | $0.44 | Shop at ECS Tuning | ||||
| 15 | Expanding nut | L= 19.9MM | 10 | 07147306224 | Shop at ECS Tuning | |||||
| 16 | C-clip for plastic nut | TS5 | 26 | 07147311312 | Shop at ECS Tuning | |||||
| 17 | Plastic nut | 32 | 07149381677 | Shop at ECS Tuning | ||||||
| 18 | Hex bolt | TS5X20SW10 D=22 | 16 | 07149481168 | Shop at ECS Tuning |
