Mounting parts, door trim, rear for BMW 2 Series U06 Active Tourer 223i (2025)

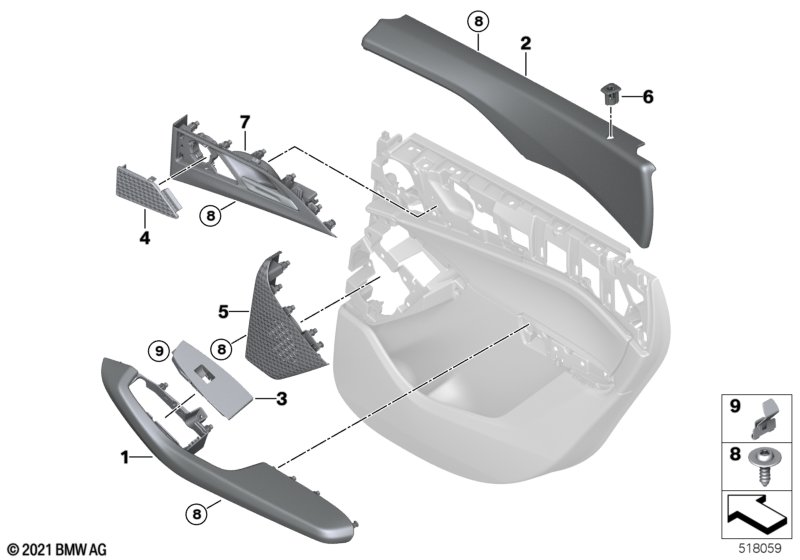

This Mounting parts, door trim, rear technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 223i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Alcan./Veganza-comb.Blk./Contr.st.Blue |
KTNL=Yes |
|||||||||
| 01 | Armrest, left | SCHWARZ | 1 | 07/2023 | 51415A5F965 | NoS | Shop at ECS Tuning | |||
| 01 | Armrest, right | SCHWARZ | 1 | 07/2023 | 51415A5F966 | NoS | Shop at ECS Tuning | |||
| For vehicles with Cloth Arcturus/anthracite |
BLAT=Yes |
|||||||||
| 01 | Armrest, left | SCHWARZ | 1 | 51415A53335 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, right | SCHWARZ | 1 | 51415A53336 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED MOCHA or Leather Vernasca/mocca |
KUMY=Yes MAMY=Yes |
|||||||||
| 01 | Armrest, left | MOKKA | 1 | 07/2023 | 51415A5F951 | NoS | Shop at ECS Tuning | |||
| 01 | Armrest, right | MOKKA | 1 | 07/2023 | 51415A5F952 | NoS | Shop at ECS Tuning | |||
| For vehicles with VEGANZA PERFORATED BLACK or Leather Vernasca black |
KUSW=Yes MASW=Yes |
|||||||||
| 01 | Armrest, left | SCHWARZ | 1 | 07/2023 | 51415A5F945 | NoS | Shop at ECS Tuning | |||
| 01 | Armrest, right | SCHWARZ | 1 | 07/2023 | 51415A5F946 | NoS | Shop at ECS Tuning | |||
| For vehicles with VEGANZA PERFORATED OYSTER or Leather Vernasca/oyster |
KUCX=Yes MACX=Yes |
|||||||||
| 01 | Armrest, left | OYSTER | 1 | 07/2023 | 51415A5F963 | NoS | Shop at ECS Tuning | |||
| 01 | Armrest, right | OYSTER | 1 | 07/2023 | 51415A5F964 | NoS | Shop at ECS Tuning | |||
| Without hole for locking pin | ||||||||||
| 02 | Waist rail, rear left | SCHWARZ | 1 | 07/2023 | 51425A63DD3 | NoS | Shop at ECS Tuning | |||
| 02 | Waist rail, rear right | SCHWARZ | 1 | 07/2023 | 51425A63DD4 | NoS | Shop at ECS Tuning | |||
| 03 | Trim cover, switch, power window, left | 1 | 51419108913 | NoS | Shop at ECS Tuning | |||||
| 03 | Trim cover, switch, power window, right | 1 | 51419108914 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Hi-Fi System Harman Kardon |
S674A=Yes |
|||||||||
| 04 | Cover, tweeter, rear left | 1 | 51429474965 | NoS | Shop at ECS Tuning | |||||
| 04 | Cover, tweeter, rear right | 1 | 51429474966 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Hi-Fi System Harman Kardon |
S674A=No |
|||||||||
| 04 | Dummy plate, rear left | 1 | 51429474963 | NoS | Shop at ECS Tuning | |||||
| 04 | Dummy plate, rear right | 1 | 51429474964 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Hi-Fi System Harman Kardon |
S674A=Yes |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 51429892679 | NoS | Shop at ECS Tuning | ||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 51429892680 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Hi-Fi System Harman Kardon |
S674A=No |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 51429892677 | NoS | Shop at ECS Tuning | ||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 51429892678 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Hi-Fi System Harman Kardon and Sensatec perforated/oyster or VEGANZA PERFORATED OYSTER or Leather Vernasca/oyster |
S674A=Yes KHCX=Yes KUCX=Yes MACX=Yes |
|||||||||
| 05 | Cover f left loudspeaker | OYSTER | 1 | 51429892683 | NoS | Shop at ECS Tuning | ||||
| 05 | Cover f right loudspeaker | OYSTER | 1 | 51429892684 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Hi-Fi System Harman Kardon and Sensatec perforated/oyster or VEGANZA PERFORATED OYSTER or Leather Vernasca/oyster |
S674A=No KHCX=Yes KUCX=Yes MACX=Yes |
|||||||||
| 05 | Cover f left loudspeaker | OYSTER | 1 | 51429892681 | NoS | Shop at ECS Tuning | ||||
| 05 | Cover f right loudspeaker | OYSTER | 1 | 51429892682 | NoS | Shop at ECS Tuning | ||||
| 06 | Trim cover, lock button, rear left | 1 | 51429460387 | NoS | Shop at ECS Tuning | |||||
| 06 | Trim cover, lock button, rear right | 1 | 51429460388 | NoS | Shop at ECS Tuning | |||||
| 07 | Door handle, rear left | 1 | 51429474959 | NoS | Shop at ECS Tuning | |||||
| 07 | Door handle, rear right | 1 | 51429474960 | NoS | Shop at ECS Tuning | |||||
| 08 | Oval-head screw with washer | DELTA PT4X12 | X | 07149200941 | Shop at ECS Tuning | |||||
| 09 | Clamp | 8 | 51417277443 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
