Seat cover front for BMW 5 Series E28 M535i (1987)

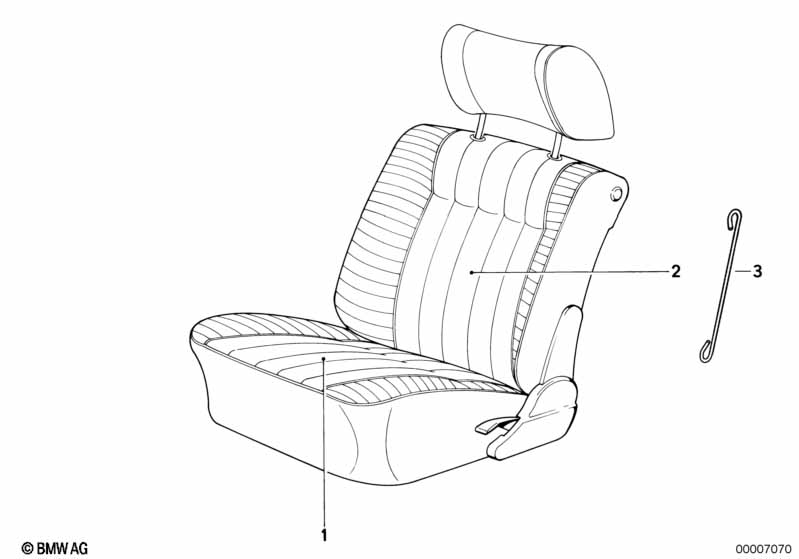

This Seat cover front technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat cover cloth | 0129 ANTHRAZIT | 2 | 09/1985 | 52101952033 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0130 PACIFIC | 2 | 09/1985 | 52101952034 | $96.53 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0169 NUTRIA | 2 | 09/1985 | 52101952035 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0170 PERLBEIGE | 2 | 09/1985 | 52101952036 | $95.28 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0133 PINIENGR. | 2 | 09/1985 | 52101952037 | $115.00 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover vinyl | 0005 SCHWARZ | 2 | 09/1985 | 52101952057 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover vinyl | 0105 PACIFIC | 2 | 09/1985 | 52101952058 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover vinyl | 0165/0169 PERLB | 2 | 09/1985 | 52101952059 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0256 CARDIN.ROT | 2 | 09/1985 | 52101952061 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0203 SCHWARZ | 2 | 09/1985 | 52101952099 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0204 PACIFIC | 2 | 09/1985 | 52101952100 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0205 NUTRIA | 2 | 09/1985 | 52101952101 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0206 PERLBEIGE | 2 | 09/1985 | 52101952102 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0209 LAMA | 2 | 09/1985 | 52101952103 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0208 TAURUSROT | 2 | 09/1985 | 52101952104 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0257 ANTHRAZIT | 2 | 09/1985 | 52101955250 | $115.00 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0258 PACIFIC | 2 | 09/1985 | 52101955251 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0259 NUTRIA | 2 | 09/1985 | 52101955252 | $115.00 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0260 PERLBEIGE | 2 | 09/1985 | 52101955253 | $98.09 | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0261 PINIENGR. | 2 | 09/1985 | 52101955254 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0129 ANTHRAZIT | 2 | 09/1985 | 52101952039 | $174.10 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0130 PACIFIC | 2 | 09/1985 | 52101952040 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0169 NUTRIA | 2 | 09/1985 | 52101952041 | $174.10 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0170 PERLBEIGE | 2 | 09/1985 | 52101952042 | $174.10 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0133 PINIENGR. | 2 | 09/1985 | 52101952043 | $174.10 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | 0256 CARDIN.ROT | 2 | 09/1985 | 52101952063 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, imitation leather | 0005 SCHWARZ | 2 | 09/1985 | 52101952095 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, imitation leather | 0105 PACIFIC | 2 | 09/1985 | 52101952096 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, imitation leather | 0165/0169 PERLB | 2 | 09/1985 | 52101952097 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0203 SCHWARZ | 2 | 09/1985 | 52101952106 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0204 PACIFIC | 2 | 09/1985 | 52101952107 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0205 NUTRIA | 2 | 09/1985 | 52101952108 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0206 PERLBEIGE | 2 | 09/1985 | 52101952109 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0209 LAMA | 2 | 09/1985 | 52101952110 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | 0208 TAURUSROT | 2 | 09/1985 | 52101952111 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0257 ANTHRAZIT | 2 | 09/1985 | 52101955280 | $174.10 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0258 PACIFIC | 2 | 09/1985 | 52101955281 | $174.10 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0259 NUTRIA | 2 | 09/1985 | 52101955282 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | 0260 PERLBEIGE | 2 | 09/1985 | 52101955283 | $147.64 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0261 PINIENGR. | 2 | 09/1985 | 52101955284 | $174.10 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
