Rear panel/net storage partition for BMW 5 Series E28 528i (1988)

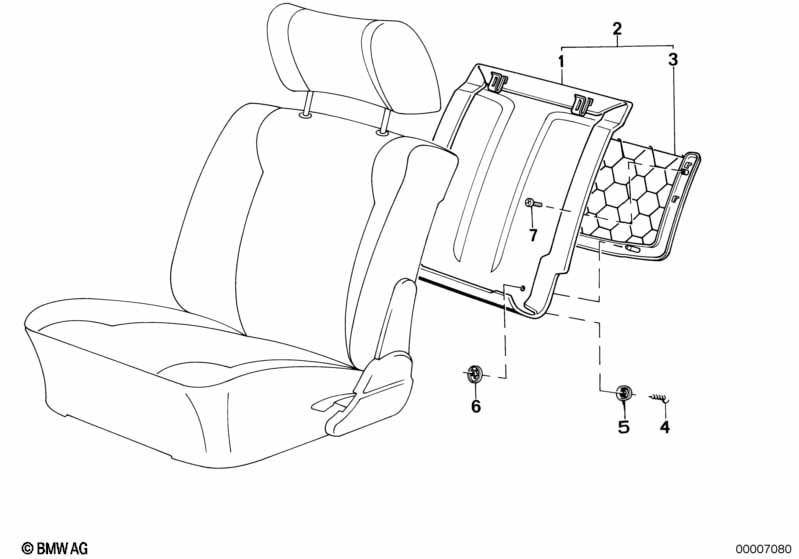

This Rear panel/net storage partition technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Storing partition net | SCHWARZ | 2 | 52101931792 | $34.56 | ENDED | Shop at ECS Tuning | |||
| 03 | Storing partition net | PACIFIC | 2 | 52101931793 | ENDED | Shop at ECS Tuning | ||||
| 03 | Storing partition net | NUTRIA | 2 | 52101931794 | ENDED | Shop at ECS Tuning | ||||
| 03 | Storing partition net | PERLBEIGE | 2 | 52101931795 | ENDED | Shop at ECS Tuning | ||||
| 03 | Storing partition net | PINIENGRUEN | 2 | 52101931796 | ENDED | Shop at ECS Tuning | ||||
| 03 | Storing partition net | LAMA | 2 | 52101931797 | ENDED | Shop at ECS Tuning | ||||
| 04 | Recessed oval head sheet-metal screw | ST4,2X16 | 8 | 07119902497 | $0.13 | Shop at ECS Tuning | ||||
| 05 | Hollow washer | 8 | 51451804974 | $2.62 | Shop at ECS Tuning | |||||
| 06 | Axial securing clip | 15X5,7MM | 6 | 07149158226 | Shop at ECS Tuning | |||||
| 07 | Countersunk head screw | 4 | 02/1986 | 51411940498 | $0.20 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 528i Rear panel/net storage partition?
- This technical diagram illustrates the Rear panel/net storage partition within the Seats group for the 5 Series E28 528i produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Storing partition net (Part #52101931792).
- Which models use the hardware listed in this Rear panel/net storage partition?
- The hardware and components featured in the Rear panel/net storage partition are specific to the 5 Series E28 528i produced during 1988. These technical specifications ensure that parts like the Storing partition net (52101931792) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear panel/net storage partition assembly?
- Each item in the Rear panel/net storage partition corresponds to the numbered list below the illustration. For the 5 Series E28 528i, you can identify the Storing partition net by locating its position on the schematic, which then links to the official BMW part number 52101931792 for the Seats section.
