Rear panel for BMW 6 Series E24 633CSi (1978)

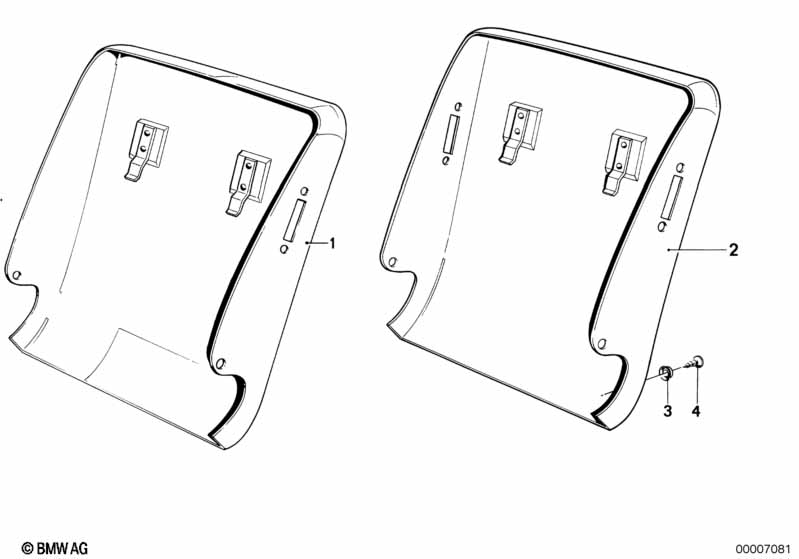

This Rear panel technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 621-622 | |||||||||
| For vehicles with Leather trim |
=Yes |
|||||||||
| 02 | Rear panel seat leather | SCHWARZ | 2 | 09/1977 | 09/1978 | 52101861866 | ENDED | Shop at ECS Tuning | ||
| 03 | Hollow washer | 6 | 09/1978 | 51451804974 | $2.62 | Shop at ECS Tuning | ||||
| 04 | Recessed oval head sheet-metal screw | ST4,2X16 | 6 | 09/1978 | 07119902497 | $0.13 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
