Rear panel for BMW 6 Series E24 635CSi (1989)

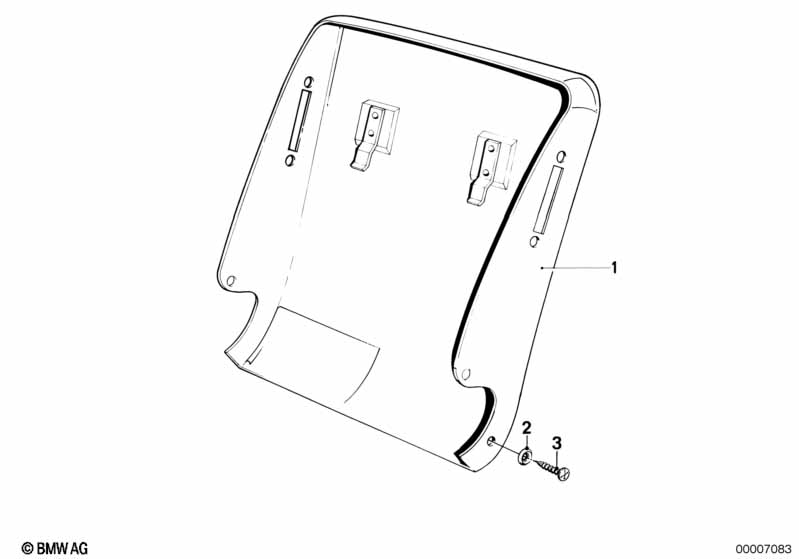

This Rear panel technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth version or Leather trim |
=Yes =Yes |
|||||||||
| 01 | Rear panel seat leather | HELLGRAU | 2 | 52101872609 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear panel seat leather | NYLONBRAUN | 2 | 52101872611 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear panel seat leather | MARINEBLAU | 2 | 52101872613 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear panel seat leather | SCHWARZ | 2 | 52101872615 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear panel seat leather | WEISSBEIGE | 2 | 52101872619 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear panel seat leather | VELOURSROT | 2 | 52101872621 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear panel seat leather | PACIFIC | 2 | 52101877893 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear panel seat leather | MOCCA | 2 | 52101877894 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear panel seat leather | PERGAMENT | 2 | 52101877895 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear panel seat leather | GOBIBEIGE | 2 | 52101877896 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear panel seat leather | ANTIKROT | 2 | 52101877897 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear panel seat leather | CHERRY | 2 | 52101902348 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear panel seat leather | PINIENGRUEN | 2 | 52101907517 | $940.23 | ENDED | Shop at ECS Tuning | |||
| 02 | Hollow washer | 6 | 51451804974 | $2.62 | Shop at ECS Tuning | |||||
| 03 | Recessed oval head sheet-metal screw | ST4,2X16 | 6 | 07119902497 | $0.13 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Rear panel?
- This technical diagram illustrates the Rear panel within the Seats group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Rear panel seat leather (Part #52101872609).
- Which models use the hardware listed in this Rear panel?
- The hardware and components featured in the Rear panel are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the Rear panel seat leather (52101872609) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear panel assembly?
- Each item in the Rear panel corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Rear panel seat leather by locating its position on the schematic, which then links to the official BMW part number 52101872609 for the Seats section.
