Rear panel for BMW 7 Series E32 730i (1992)

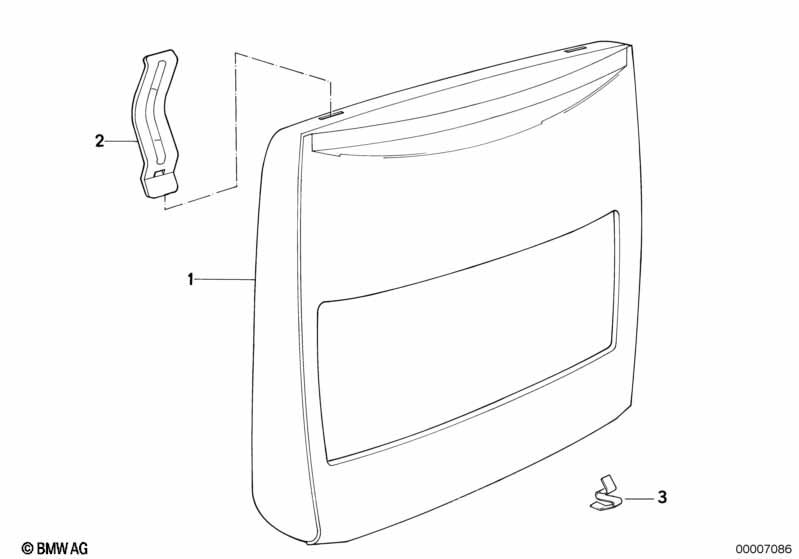

This Rear panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | UPHOLSTERY LEATHER WALKNAPPA ONLY APPLIES TO ARMREST FRONT |
|||||||||
| UPHOLSTERY LEATHER WALKNAPPA ONLY APPLIES TO ARMREST FRONT 0232=schwarz 0436=silber-grau hell 0433=ultramarin 0434=pergament |
||||||||||
| 01 | Rear panel seat leather left | 0226/0232 SCHW. | 1 | 01/1991 | 52101962691 | $260.03 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat leather right | 0226/0232 SCHW. | 1 | 01/1991 | 52101962692 | $247.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat leather right | 0436SILBER-HELL | 1 | 01/1991 | 52108142142 | $269.65 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat leather left | 0436SILBER-HELL | 1 | 01/1991 | 52108142143 | $260.03 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat leather right | 0433 ULTRAMARIN | 1 | 01/1991 | 52108142144 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear panel seat leather left | 0433 ULTRAMARIN | 1 | 01/1991 | 52108142145 | $260.03 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat leather right | 0434 PERGAMENT | 1 | 01/1991 | 52108142146 | $260.03 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat leather left | 0434 PERGAMENT | 1 | 01/1991 | 52108142147 | $269.65 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat leather left | 0485 SILBERGRAU | 1 | 09/1991 | 52108160029 | $260.03 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat leather right | 0485 SILBERGRAU | 1 | 09/1991 | 52108160030 | $260.03 | ENDED | Shop at ECS Tuning | ||
| 02 | Bracket upper | 4 | 52108110325 | $0.93 | Shop at ECS Tuning | |||||
| 03 | Clip, trim panel, bottom | 4 | 52108110149 | $0.23 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
