BMW sportseat seat panel rear for BMW 5 Series E34 535i (1993)

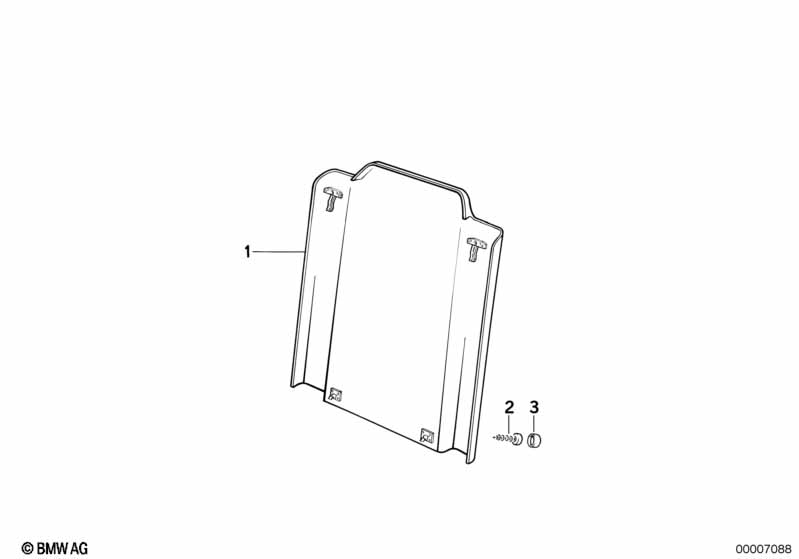

This BMW sportseat seat panel rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| UPHOLSTERY LEATHER BISON | ||||||||||
| 01 | Rear panel seat leather | 0203/0325SCHWAR | 2 | 52108104543 | $241.06 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear panel seat leather | 0324/0329KARMES | 2 | 52108117037 | $241.06 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER BUFFALO 0180/0459=anthrazit, 0362/0460=brasil |
||||||||||
| 01 | Rear panel seat leather | 0180/0459ANTHRA | 2 | 09/1990 | 52108143416 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth version |
=Yes |
|||||||||
| 01 | Cloth rear panel | 0406 ANTHRAZ.91 | 2 | 09/1990 | 52108143407 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth rear panel | 0407 SILBERGRAU | 2 | 09/1990 | 52108143408 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth rear panel | 0408 ULTRAMARIN | 2 | 09/1990 | 52108143409 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth rear panel | 0409 PERGAMENT | 2 | 09/1990 | 52108143410 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth version or Vinyl version or Leather trim 0203,0313,0325,0366,0411=schwarz/anthr. 0412,0416,0428=silber-grau 0476,0483,0486,0487=silber-grau 0394,0438,0451,0455,0527=silber-grau hell 0396,0414,0430,0453,0457,0479=pergament 0395,0413,0429,0452,0456,0478=ultramarin 0324,0329,0369=karmesin-rot 0397, |
=Yes =Yes =Yes |
|||||||||
| 01 | Rear panel seat vinyl | SCHWARZ | 2 | 09/1990 | 52108143402 | $148.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat vinyl | SILBERGRAU | 2 | 09/1990 | 52108143403 | $122.45 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat vinyl | ULTRAMARIN | 2 | 09/1990 | 52108143404 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear panel seat vinyl | PERGAMENT | 2 | 09/1990 | 52108143405 | $126.12 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear panel seat vinyl | SILBERGRAU-HELL | 2 | 09/1990 | 52108148689 | $176.33 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Rear panel seat vinyl | KARMESINROT | 2 | 09/1990 | 52108148690 | ENDED | Shop at ECS Tuning | |||
| 02 | Recessed oval head sheet-metal screw | ST4,2X25 | 4 | 04/1988 | 07119902473 | $0.11 | Shop at ECS Tuning | |||
| 03 | Cap | SCHWARZ | 4 | 04/1988 | 51161949793 | $0.42 | Shop at ECS Tuning | |||
| 03 | Cap | CHAMPAGNER | 4 | 04/1988 | 51162237083 | Shop at ECS Tuning | ||||
