Front seat backrest unlocking for BMW 3 Series E21 320i (1977)

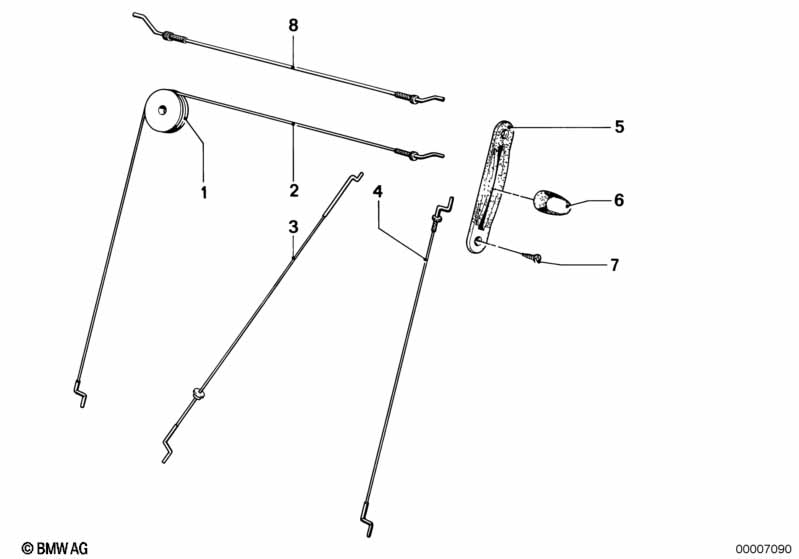

This Front seat backrest unlocking technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Version 300-301-302-303-304-305/341 Version 300-301-302-303-304-305/341 |
|||||||||
| 01 | Cable roller | 1 | 52101848987 | $2.53 | Shop at ECS Tuning | |||||
| 02 | Rope inner | 656-668MM | 1 | 52101855303 | $5.99 | Shop at ECS Tuning | ||||
| 03 | Rope inner | 520MM | 1 | 52101871750 | $12.63 | ENDED | Shop at ECS Tuning | |||
| 04 | Rope | 273-285MM | 1 | 52101855276 | $9.36 | Shop at ECS Tuning | ||||
| 05 | Cover | SCHWARZ | 1 | 52101844588 | $1.67 | Shop at ECS Tuning | ||||
| 06 | Handle | 1 | 52101844699 | $25.79 | ENDED | Shop at ECS Tuning | ||||
| 07 | Recessed oval head sheet-metal screw | ST3,9X13 | 3 | 07119902581 | $0.23 | Shop at ECS Tuning | ||||
| 08 | Rope | 382MM | 1 | 52101854441 | $19.96 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
