Front seat backrest unlocking for BMW 3 Series E21 323i (1982)

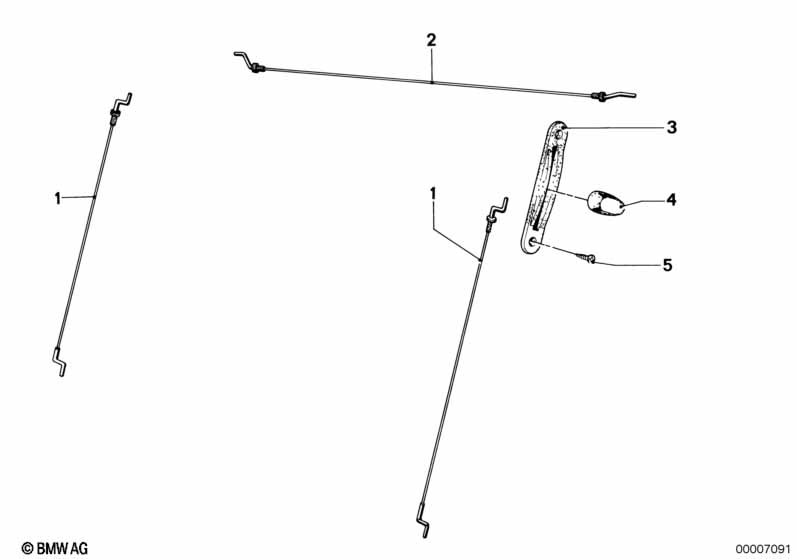

This Front seat backrest unlocking technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Version 300-301-302-303-304-305/341 Version 300-301-302-303-304-305/341 |
|||||||||
| 01 | Rope | 273-285MM | 2 | 52101855276 | $9.36 | Shop at ECS Tuning | ||||
| 02 | Rope | 382MM | 2 | 52101854441 | $19.96 | Shop at ECS Tuning | ||||
| 03 | Cover | SCHWARZ | 2 | 52101844588 | $1.67 | Shop at ECS Tuning | ||||
| 04 | Handle | 2 | 52101844699 | $25.79 | ENDED | Shop at ECS Tuning | ||||
| 05 | Recessed oval head sheet-metal screw | ST3,9X13 | 4 | 07119902581 | $0.23 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 323i Front seat backrest unlocking?
- This technical diagram illustrates the Front seat backrest unlocking within the Seats group for the 3 Series E21 323i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Rope (Part #52101855276).
- Which models use the hardware listed in this Front seat backrest unlocking?
- The hardware and components featured in the Front seat backrest unlocking are specific to the 3 Series E21 323i produced during 1982. These technical specifications ensure that parts like the Rope (52101855276) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front seat backrest unlocking assembly?
- Each item in the Front seat backrest unlocking corresponds to the numbered list below the illustration. For the 3 Series E21 323i, you can identify the Rope by locating its position on the schematic, which then links to the official BMW part number 52101855276 for the Seats section.
