Front seat-head rest support retainer for BMW 6 Series E24 633CSi (1981)

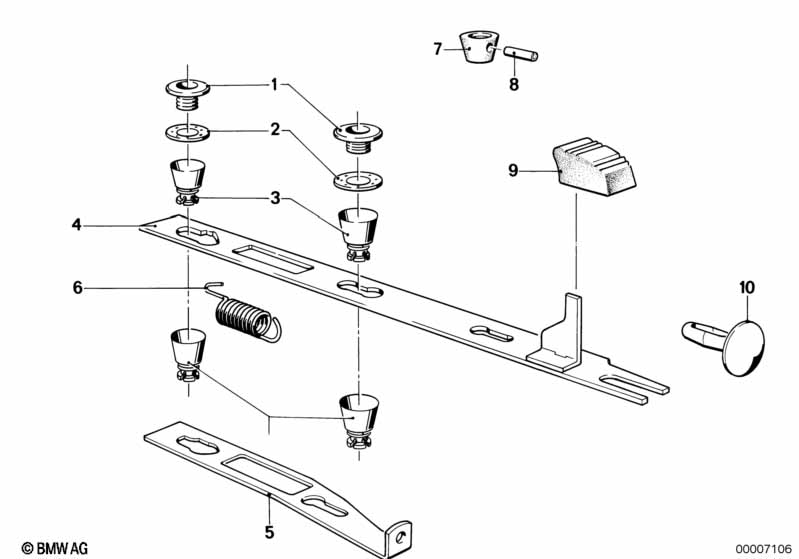

This Front seat-head rest support retainer technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 621-622-623-624-625 | |||||||||
| 01 | Cover | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 02 | Covering Lower | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 03 | Sleeve | 8 | 52101838965 | $0.61 | Shop at ECS Tuning | |||||
| 04 | Lock lever | 2 | 09/1978 | 11/1981 | 52101872064 | ENDED | Shop at ECS Tuning | |||
| 06 | Spring | 2 | 52101838966 | $0.44 | ENDED | Shop at ECS Tuning | ||||
| 10 | Button | 2 | 09/1978 | 52101838967 | $0.50 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Front seat-head rest support retainer?
- This technical diagram illustrates the Front seat-head rest support retainer within the Seats group for the 6 Series E24 633CSi produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Cover (Part #52108191245).
- Which models use the hardware listed in this Front seat-head rest support retainer?
- The hardware and components featured in the Front seat-head rest support retainer are specific to the 6 Series E24 633CSi produced during 1981. These technical specifications ensure that parts like the Cover (52108191245) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front seat-head rest support retainer assembly?
- Each item in the Front seat-head rest support retainer corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Cover by locating its position on the schematic, which then links to the official BMW part number 52108191245 for the Seats section.
