Front seat-vertical seat adjuster for BMW 6 Series E24 633CSi (1979)

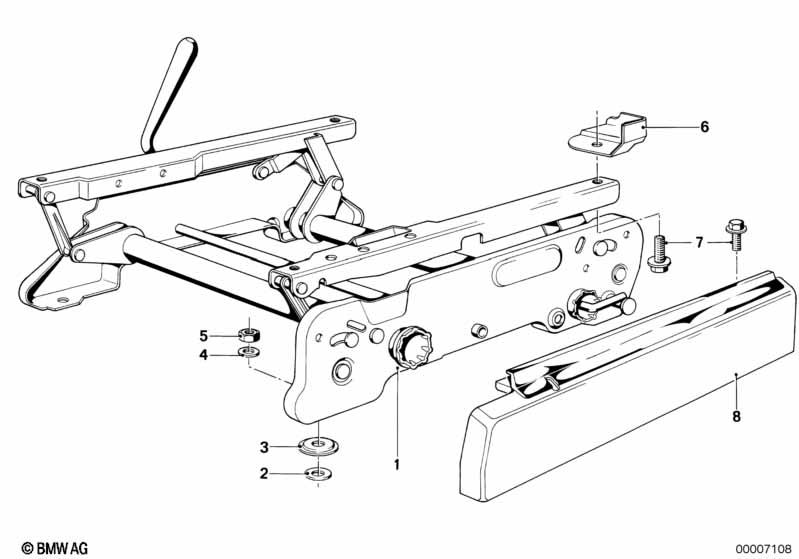

This Front seat-vertical seat adjuster technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 621-622-623 | |||||||||
| 01 | Vertical seat adjuster left | 1 | 09/1979 | 52101823717 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vertical seat adjuster right | 1 | 09/1979 | 52101830670 | ENDED | Shop at ECS Tuning | ||||
| 02 | Washer | 6 | 09/1979 | 52101826101 | ENDED | Shop at ECS Tuning | ||||
| 03 | Covering piece | 4 | 09/1979 | 52101826360 | $0.21 | ENDED | Shop at ECS Tuning | |||
| 04 | Washer | 8,4X24X2-ZNS3 | 6 | 09/1979 | 07119904164 | $0.40 | Shop at ECS Tuning | |||
| 05 | Self-locking hex nut | M8 | 6 | 09/1979 | 07129922716 | $0.36 | Shop at ECS Tuning | |||
| 06 | Protection cap inner left | 1 | 09/1979 | 52101823715 | $1.22 | ENDED | Shop at ECS Tuning | |||
| 06 | Protection cap outer left | 1 | 09/1979 | 52101823716 | $1.22 | ENDED | Shop at ECS Tuning | |||
| 06 | Protection cap inner right | 1 | 09/1979 | 52101830673 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 06 | Protection cap outer right | 1 | 09/1979 | 52101830674 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M6X18 | 2 | 09/1979 | 52101817572 | $0.26 | ENDED | Shop at ECS Tuning | ||
| 08 | Covering left | 1 | 09/1979 | 52101820731 | $24.12 | ENDED | Shop at ECS Tuning | |||
| 08 | Covering right | 1 | 09/1979 | 52101830672 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
