Front seat rail for BMW 6 Series E24 630CSi (1977)
This Front seat rail technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 621-622-623 | |||||||||
| 01 | Grommet | 2 | 09/1979 | 52208238999 | $0.40 | Shop at ECS Tuning | ||||
| 02 | Seat catch inner left | 1 | 09/1979 | 52101807471 | ENDED | Shop at ECS Tuning | ||||
| 02 | Seat catch inner right | 1 | 09/1979 | 52101807472 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X25 | 6 | 09/1979 | 52101820255 | $0.35 | ENDED | Shop at ECS Tuning | ||
| 04 | Connection rod | 1 | 09/1978 | 52101817083 | $3.74 | ENDED | Shop at ECS Tuning | |||
| 04 | Connection rod, driver's side | 1 | 09/1978 | 52101821259 | $1.51 | ENDED | Shop at ECS Tuning | |||
| 05 | Nut holder | M6 | 6 | 09/1979 | 52101828543 | $1.15 | Shop at ECS Tuning | |||
| 06 | Seat rail left | 2 | 05/1977 | 09/1979 | 52101817771 | ENDED | Shop at ECS Tuning | |||
| 06 | Seat rail right | 2 | 05/1977 | 09/1979 | 52101817772 | $22.32 | ENDED | Shop at ECS Tuning | ||
| 07 | Cap | 2 | 09/1979 | 52117602106 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X18 | 8 | 09/1979 | 52101817572 | $0.26 | ENDED | Shop at ECS Tuning | ||
| 09 | Bracket left | 1 | 09/1979 | 52101802805 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 09 | Bracket right | 1 | 09/1979 | 52101802806 | ENDED | Shop at ECS Tuning | ||||
| 10 | Covering seat rail left | 1 | 09/1979 | 52101827457 | ENDED | Shop at ECS Tuning | ||||
| 10 | Covering seat rail right | 1 | 09/1979 | 52101827458 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 630CSi Front seat rail?

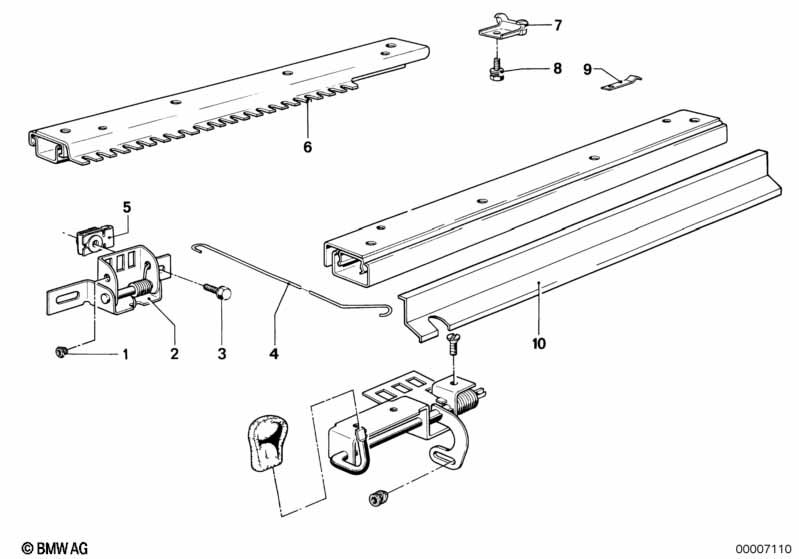

- This technical diagram illustrates the Front seat rail within the Seats group for the 6 Series E24 630CSi produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Grommet (Part #52208238999).
- Which models use the hardware listed in this Front seat rail?
- The hardware and components featured in the Front seat rail are specific to the 6 Series E24 630CSi produced during 1977. These technical specifications ensure that parts like the Grommet (52208238999) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front seat rail assembly?
- Each item in the Front seat rail corresponds to the numbered list below the illustration. For the 6 Series E24 630CSi, you can identify the Grommet by locating its position on the schematic, which then links to the official BMW part number 52208238999 for the Seats section.
