Front seat rail for BMW 6 Series E24 633CSi (1979)

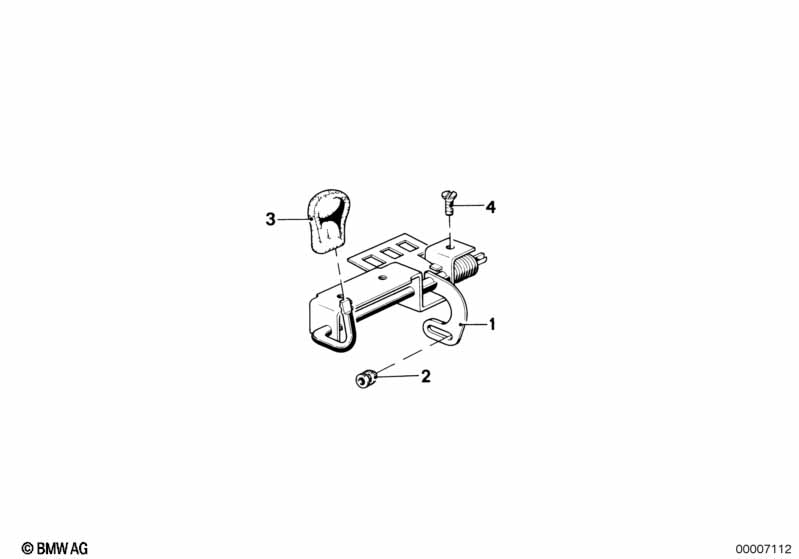

This Front seat rail technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 621-622-623 | |||||||||
| 01 | Seat catch outer right | 1 | 05/1977 | 52101851326 | $22.21 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Vertical seat adjuster |
=Yes |
|||||||||
| 01 | Seat catch outer left | 1 | 05/1977 | 52101850861 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat catch outer right | 1 | 05/1977 | 52101850862 | ENDED | Shop at ECS Tuning | ||||
| 02 | Grommet | 2 | 52101807432 | $7.28 | ENDED | Shop at ECS Tuning | ||||
| 03 | Handle | 2 | 52101803743 | $10.19 | Shop at ECS Tuning | |||||
| 04 | Countersunk head screw | M6X12 | 6 | 52101817063 | $0.92 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Front seat rail?
- This technical diagram illustrates the Front seat rail within the Seats group for the 6 Series E24 633CSi produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Seat catch outer right (Part #52101851326).
- Which models use the hardware listed in this Front seat rail?
- The hardware and components featured in the Front seat rail are specific to the 6 Series E24 633CSi produced during 1979. These technical specifications ensure that parts like the Seat catch outer right (52101851326) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front seat rail assembly?
- Each item in the Front seat rail corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Seat catch outer right by locating its position on the schematic, which then links to the official BMW part number 52101851326 for the Seats section.
