Front seat rail electrical/single parts for BMW 5 Series E34 540i (1996)

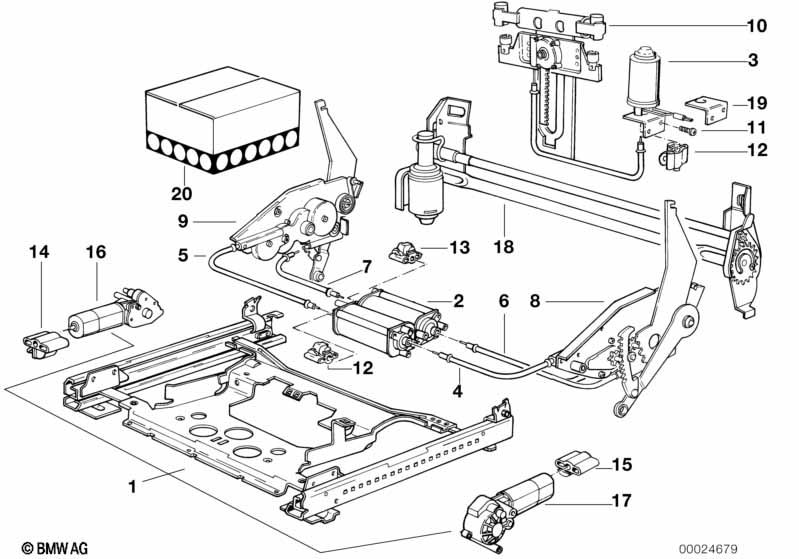

This Front seat rail electrical/single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 750 ONLY APPLIES TO ELECT.ADJUST.SEAT FRONT |
|||||||||
| 01 | Seat rail | 2 | 52101964988 | $571.95 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat rail w. actuators extended | LINKS | 2 | 52108168159 | $850.91 | Shop at ECS Tuning | ||||
| 01 | Seat rail w. actuators extended | RECHTS | 2 | 52108168160 | $1074.15 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat rail w.actuators | LINKS | 2 | 09/1992 | 52108154395 | $645.35 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat rail w.actuators | RECHTS | 2 | 09/1992 | 52108154396 | $630.19 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Memory ONLY APPLIES TO DRIVER'S SIDE |
=Yes |
|||||||||
| 01 | Seat rail w. actuators extended | RECHTS | 1 | 52108168162 | $1074.15 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat rail w.actuators | RECHTS | 1 | 09/1992 | 52108154434 | $485.46 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Drive f vertical and backr.tilt adjustm. | BROSE / BOSCH | 2 | 52101378527 | $138.83 | ENDED | Shop at ECS Tuning | |||
| 02 | Drive f vertical and backr.tilt adjustm. | FA. RHW/BOSCH | 2 | 52108350152 | $118.95 | Shop at ECS Tuning | ||||
| 03 | Actuator, headrest | 2 | 52101379411 | $130.25 | ENDED | Shop at ECS Tuning | ||||
| FOR ALL VERSIONS |
||||||||||
| 04 | Flex.shaft vertical seat adjuster left | RHW / L=312 | 2 | 52101964167 | $11.58 | Shop at ECS Tuning | ||||
| 04 | Flex.shaft vertical seat adjuster left | BROSE / L=350 | 2 | 52102687743 | $7.05 | Shop at ECS Tuning | ||||
| MODEL WITHOUT MEMORY | ||||||||||
| 05 | Flex.shaft vertical seat adjuster right | RHW / L=418 | 1 | 52101964168 | $11.58 | Shop at ECS Tuning | ||||
| 05 | Flex.shaft vertical seat adjuster right | BROSE / L=430 | 1 | 52102687741 | $19.20 | Shop at ECS Tuning | ||||
| For vehicles with Memory |
=Yes |
|||||||||
| 05 | Flex.shaft vertical seat adjuster right | RHW / L=418 | 1 | 52101964172 | $11.58 | Shop at ECS Tuning | ||||
| 05 | Flex.shaft vertical seat adjuster right | BROSE / L=454 | 1 | 52108242782 | $19.20 | Shop at ECS Tuning | ||||
| FOR ALL VERSIONS |
||||||||||
| 06 | Flex.shaft vertical seat adjuster left | RHW / L=379 | 2 | 52101964169 | $11.58 | Shop at ECS Tuning | ||||
| 06 | Flex.shaft vertical seat adjuster left | BROSE / L=380 | 2 | 52102687742 | $8.95 | Shop at ECS Tuning | ||||
| MODEL WITHOUT MEMORY | ||||||||||
| 07 | Flex.shaft vertical seat adjuster right | RHW / L=503 | 2 | 52101964170 | $12.95 | Shop at ECS Tuning | ||||
| 07 | Flex.shaft vertical seat adjuster right | BROSE / L=511 | 2 | 52102687740 | $10.55 | Shop at ECS Tuning | ||||
| For vehicles with Memory |
=Yes |
|||||||||
| 07 | Flex.shaft vertical seat adjuster right | RHW / L=503 | 1 | 52101964174 | $12.95 | Shop at ECS Tuning | ||||
| 07 | Flex.shaft vertical seat adjuster right | BROSE / L=508 | 1 | 52108242780 | $10.55 | Shop at ECS Tuning | ||||
| 08 | Gearbox left | RHW/BOSCH | 2 | 52101964171 | $206.31 | ENDED | Shop at ECS Tuning | |||
| 08 | Gearbox left | BROSE | 2 | 52108170117 | $191.94 | ENDED | Shop at ECS Tuning | |||
| 09 | Gearbox right | RHW/BOSCH | 2 | 52101964176 | $206.31 | Shop at ECS Tuning | ||||
| 09 | Gearbox right | BROSE | 2 | 52108170118 | $198.88 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Memory |
=Yes |
|||||||||
| 09 | Gearbox right | RHW/BOSCH | 1 | 52101964178 | $206.31 | Shop at ECS Tuning | ||||
| 09 | Gearbox right | BROSE | 1 | 52108170118 | $198.88 | ENDED | Shop at ECS Tuning | |||
| 10 | Gearbox head rest support | 2 | 52101964246 | $157.89 | Shop at ECS Tuning | |||||
| For vehicles with Memory |
=Yes |
|||||||||
| 10 | Gearbox head rest support | 1 | 52108126164 | $213.72 | Shop at ECS Tuning | |||||
| 11 | Fillister head screw | M5X12-Z3-ZN | 3 | 07119906816 | $0.18 | Shop at ECS Tuning | ||||
| For vehicles with Memory |
=Yes |
|||||||||
| 12 | Potentiome.head rest A.vert.seat adjust | 2 | 61311379094 | $62.85 | ENDED | Shop at ECS Tuning | ||||
| 13 | Volt.regul.backrest adjuster | 1 | 61311379095 | $62.85 | ENDED | Shop at ECS Tuning | ||||
| 14 | Regulator horizontal seat adjustment | BOSCH | 1 | 61311379096 | $62.85 | ENDED | Shop at ECS Tuning | |||
| 14 | Regulator horizontal seat adjustment | (BROSE) | 1 | 61311389455 | $62.85 | ENDED | Shop at ECS Tuning | |||
| 15 | Volt.regul.seat inclination adjustment | (SWF) / SCHWARZ | 1 | 61311379097 | $62.85 | ENDED | Shop at ECS Tuning | |||
| 15 | Volt.regul.seat inclination adjustment | (BOSCH) | 1 | 61311388698 | $97.42 | ENDED | Shop at ECS Tuning | |||
| 15 | Volt.regul.seat inclination adjustment | (BROSE) | 1 | 61311389456 | $62.85 | ENDED | Shop at ECS Tuning | |||
| 16 | Actuator horizontal adjustement | 2 | 52101378836 | $178.74 | +core | Shop at ECS Tuning | ||||
| 17 | positioning drive, pitch angle front | BOSCH | 2 | 52101378838 | $137.40 | +core | Shop at ECS Tuning | |||
| 17 | positioning drive, pitch angle front | BROSE | 2 | 52101389416 | $137.40 | ENDED | Shop at ECS Tuning | |||
| 18 | Lumbar support | 2 | 52108102291 | $243.46 | ENDED | Shop at ECS Tuning | ||||
| 19 | Bracket | 2 | 52108121728 | $8.93 | ENDED | Shop at ECS Tuning | ||||
